Description

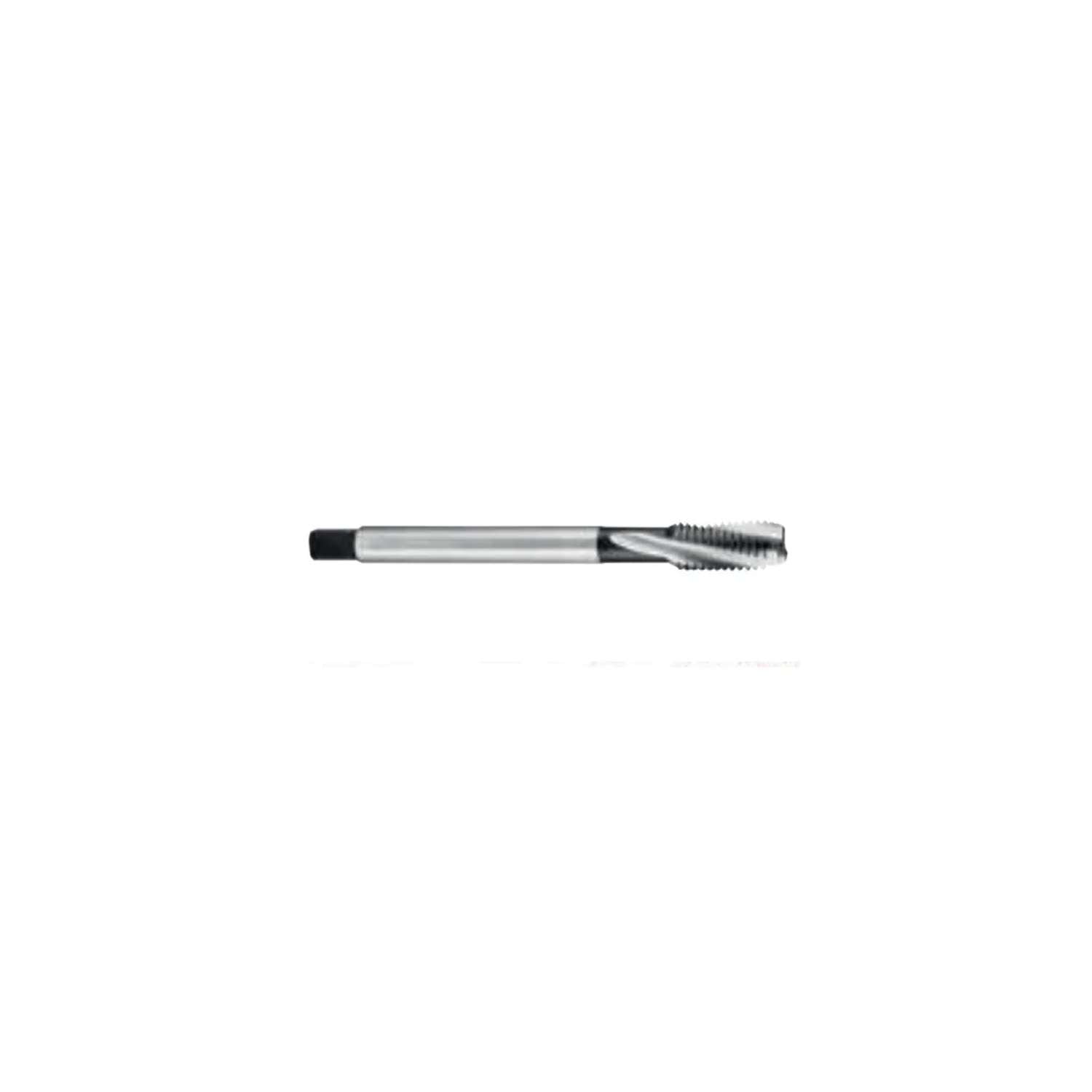

N - GENERIC APPLICATIONS - DIN 376 - CATALOGUE 6658
Material: HSS-CO
Notes: for tapping of blind holes it protrudes up to 2 times the ø of the male.

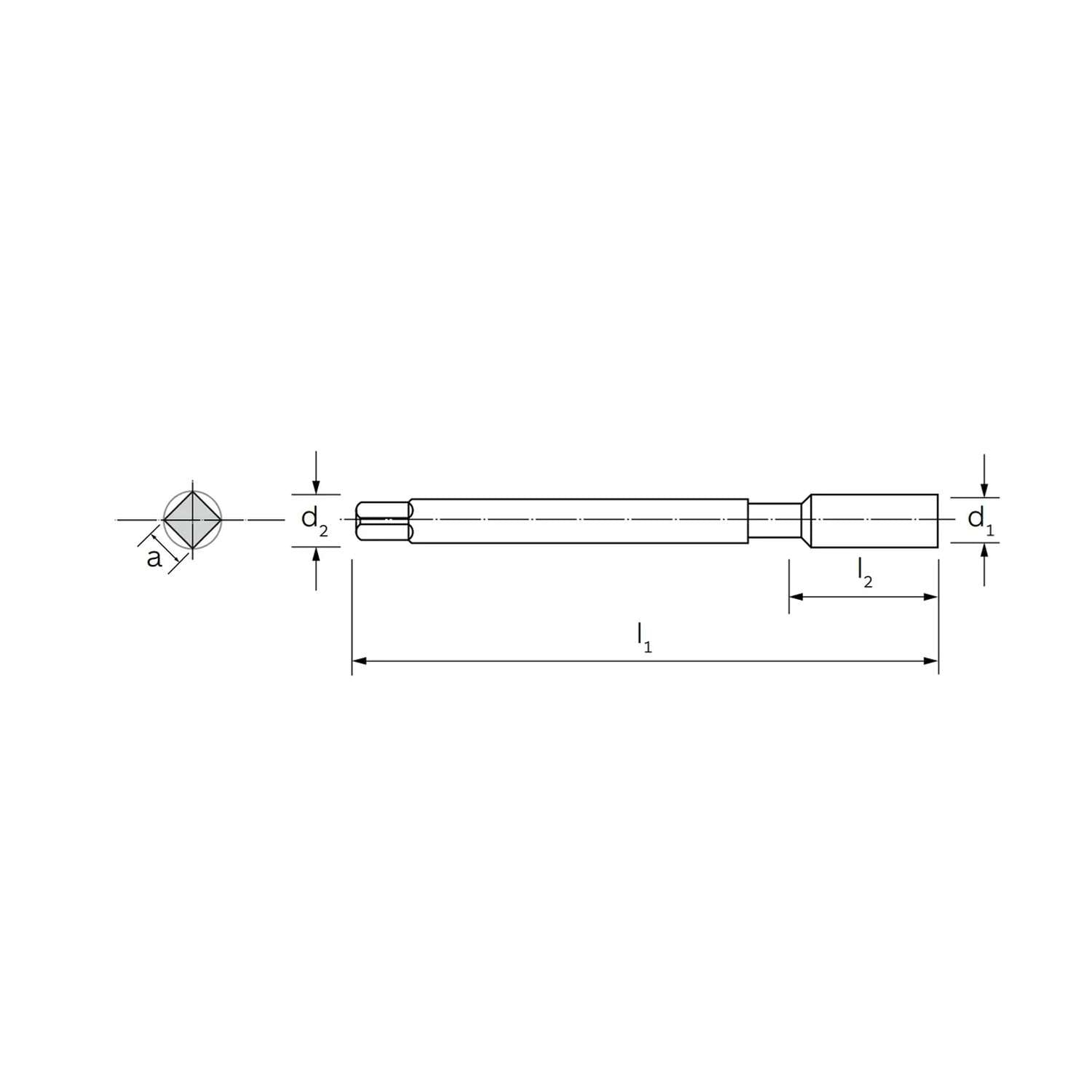

Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
10 | 100 | 24 | 14 | 7 | 5.5 | 8.5 | 1.5 |
12 | 110 | 29 | 16 | 9 | 7 | 10.2 | 1.75 |
14 | 110 | 30 | 20 | 11 | 9 | 12 | 2 |
18 | 125 | 34 | 24 | 14 | 11 | 15.5 | 2.5 |
20 | 140 | 34 | 25 | 16 | 12 | 17.5 | 2.5 |
