Description

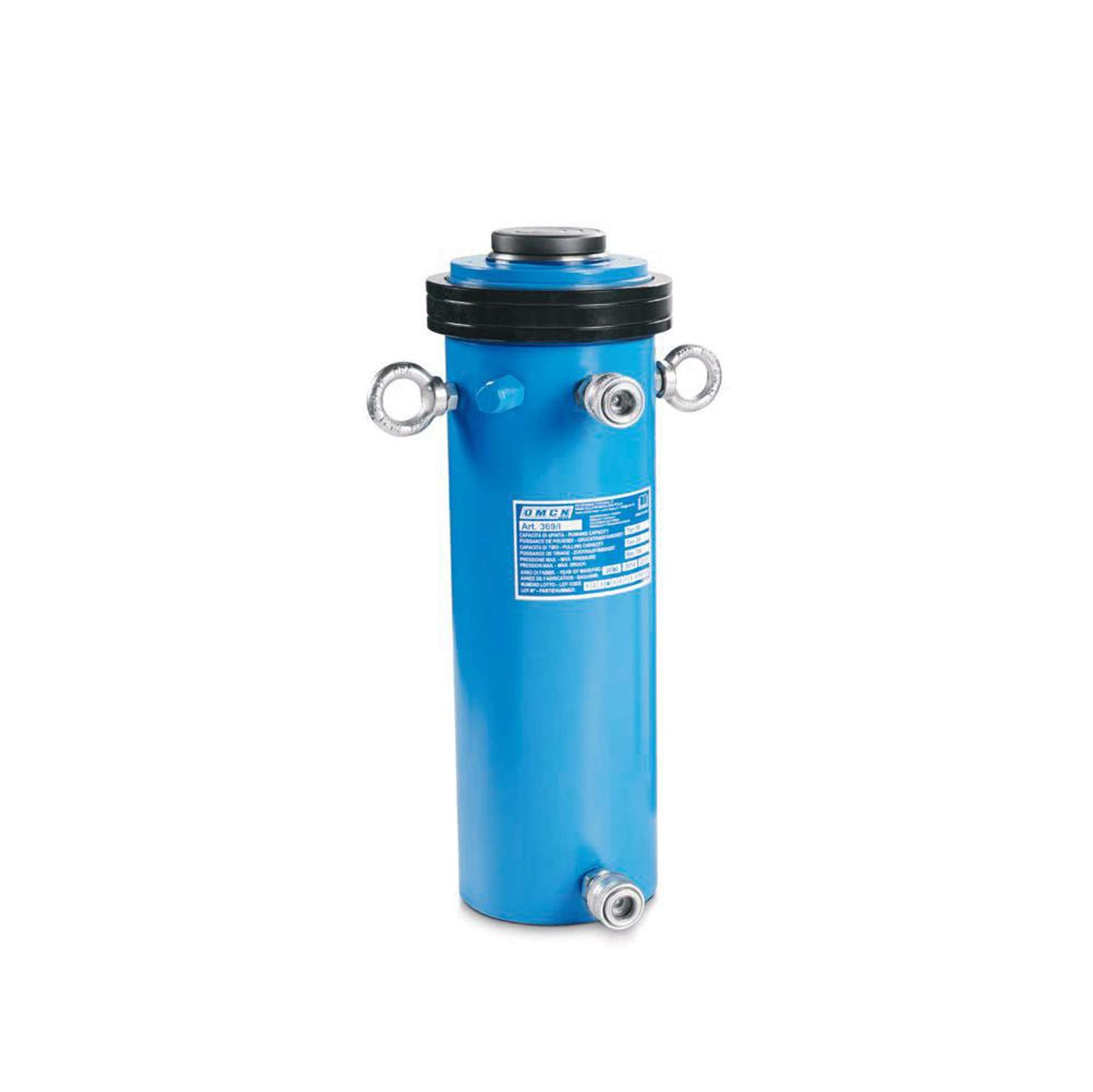

Double-acting hydraulic cylinder for lifting up to a maximum of 55 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 55t
Working pressure 700 bar
Oil capacity 1216cm³
Dimensions A 470mm
Dimensions B 320mm
Dimensions C 150mm
Dimensions D 75mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M128X1,5mm
Dimensions H 50mm
Dimensions I M30X3,5mm
Dimensions L 65mm
Dimensions M M10
Weight 28,2Kg
Delivery 10-15 days
