Description

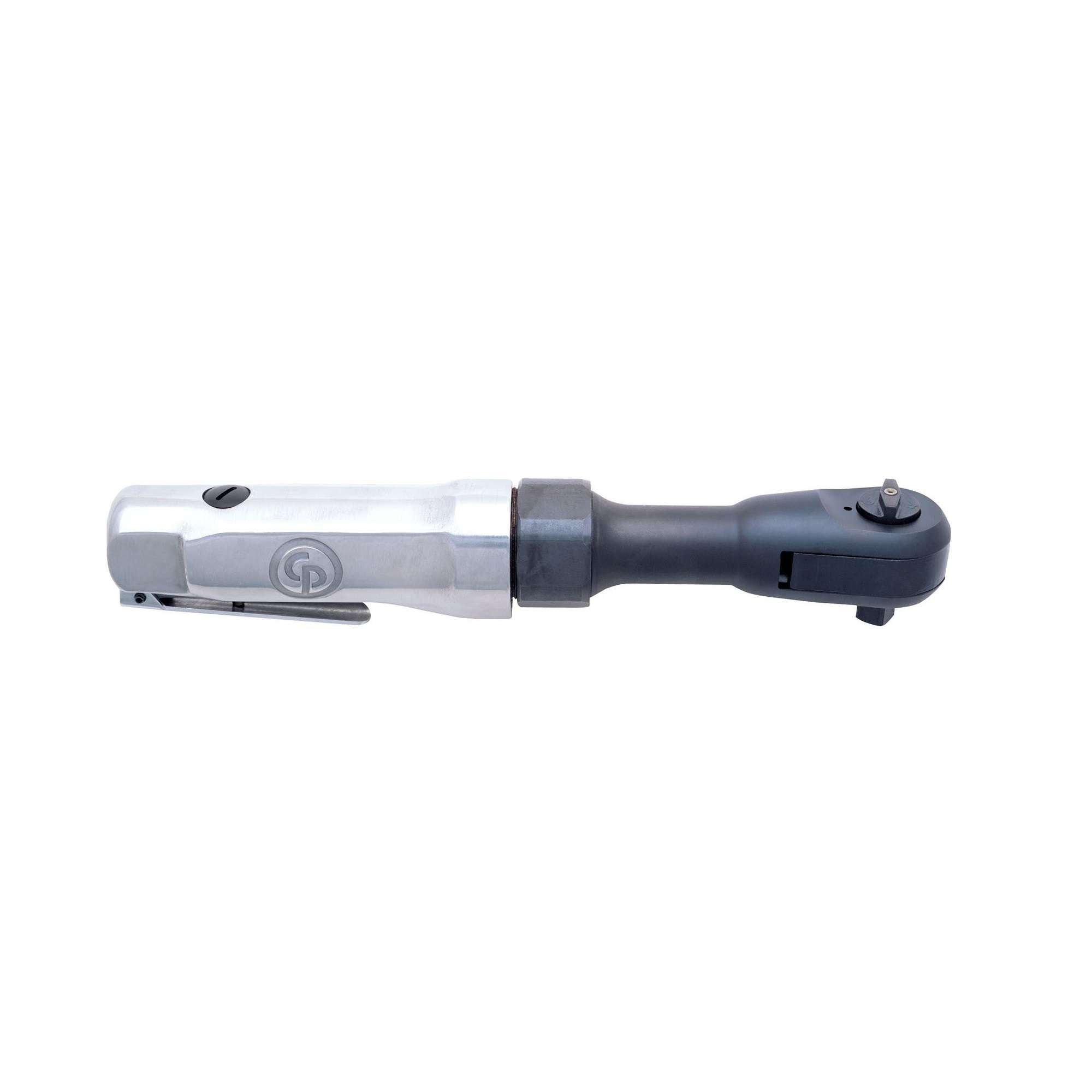

3/8” pneumatic ratchet - Chicago Pneumatic CP828
Technical specifications
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Length (L) | 254 mm |
| Free speed | 150 rpm |
| Main material type | Alluminium |
| Maximum dynamic pneumatic working pressure | 6.3 bar |
| Maximum dynamic air working pressure | 91 psi |
| Maximum backward working torque | 70 Nm |
| Max. reverse torque | 70 Nm |
| Minimum pipe diameter (pipe length 5 m) | 10 mm |
| Minimum backward working torque | 13 Nm |
| Size of output unit (in) | 3/8 |
| Type of output drive | Sq |
| Type of output stop | Ball stop |
| Power of sound | 108 dB(A) |
| Sound pressure | 97 dB(A) |
| System startup | Leva |
| Vibration of uncertainty K | 1.3 m/s² |
| Vibration (m/s²) | 3.2 |
| Weight | 1.1kg |
