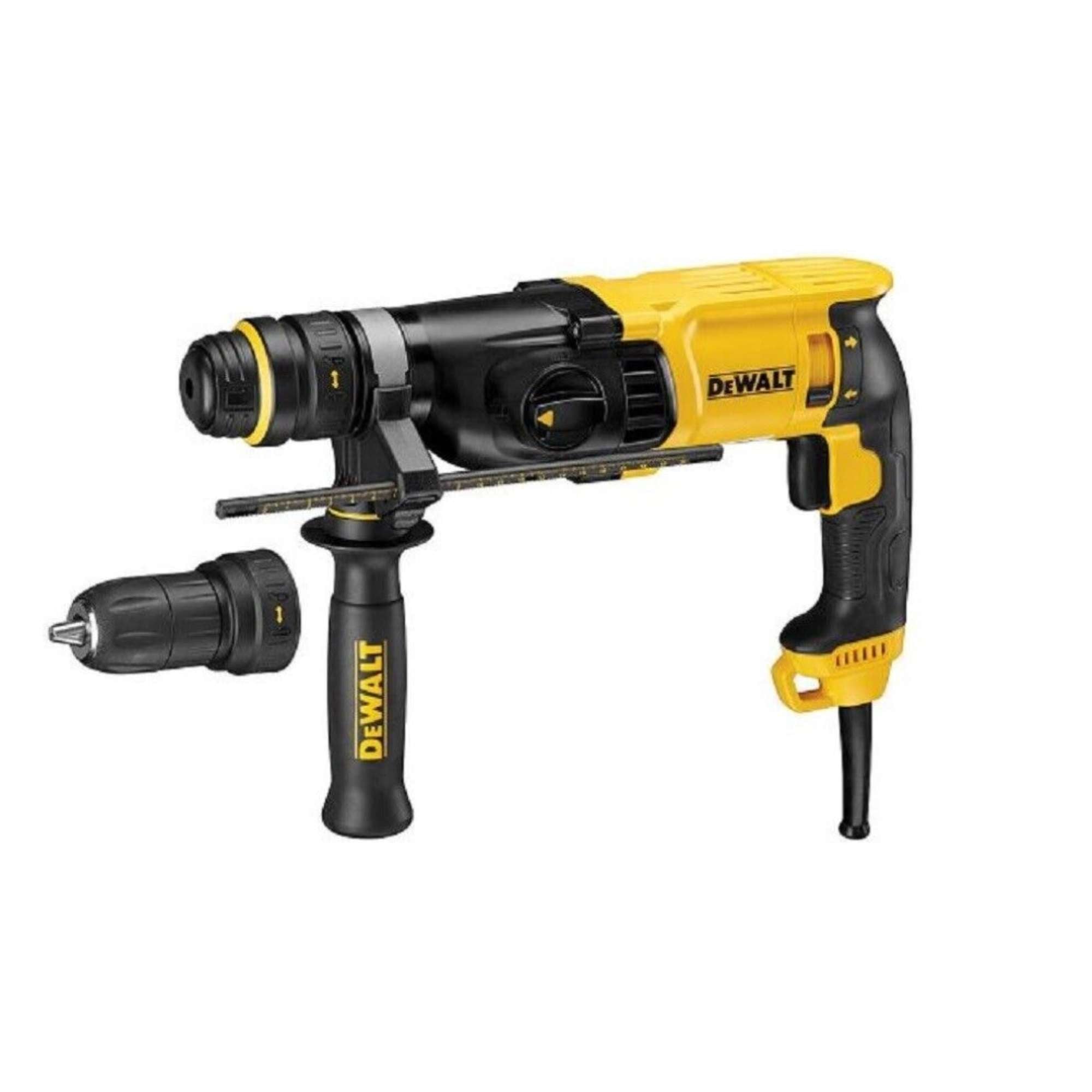

Description
Ideal for anchoring and fixing in concrete and masonry from 4 to 26 mm diameter
Rotostop for light chipping work in brick, light concrete and occasional concrete
13 mm quick-action keyless chuck for drilling in wood, steel and for screw connections
Rotation-only option for drilling in wood, iron and ceramics
Large electropneumatic mechanism maximises performance by reducing stress on critical components
Mechanical safety clutch prevents kickback
Variable speed for maximum control in every application
Soft rubber-coated handle provides maximum comfort
Rubber-coated side handle for improved user comfort
New rounded design makes the tool more manoeuvrable
Maximum protection against dust ingress for long tool life
Side openings are designed to protect the user's eye from dust or chips
Technical data
SDS-Plus holder
Power input 800 Watt
Power output 640 Watt
Impact energy (EPTA 05/2009) 2.8 J
No load speed 0-1500 rpm
Percussions per minute 0-5540 Perc./min
Max. drilling capacity [Concrete] 26 mm
Max. drilling capacity [Crown] 65 mm
Max. drilling capacity - [Wood] 30 mm
Max. drilling capacity - [Metal] 13 mm
Weight 3.0 kg
Length 355 mm
Height 210 mm
Width 75 mm
Hand/arm vibration - concrete drilling 15.7 m/s²
Uncertainty (Vibration) 1.5 m/s²
Hand/arm vibrations - Chiselling 14.3 m/s²
Uncertainty (Vibrations) 1.5 m/s²
Hand/arm vibration - Metal drilling Uncertainty K3 (Vibration) 1.5 m/s²
Hand/arm vibration - Screwdriving Uncertainty K4 (Vibration) 1.5 m/s²
Acoustic pressure 89 dB(A)
Uncertainty (Sound power) 3.8 dB(A)
Acoustic power 100.1 dB(A)
Uncertainty (Sound Power) 3.8 dB(A)
Equipment
Adjustable anti-vibration side handle
Depth stop
13 mm quick-action keyless chuck
Supplied in cardboard box
