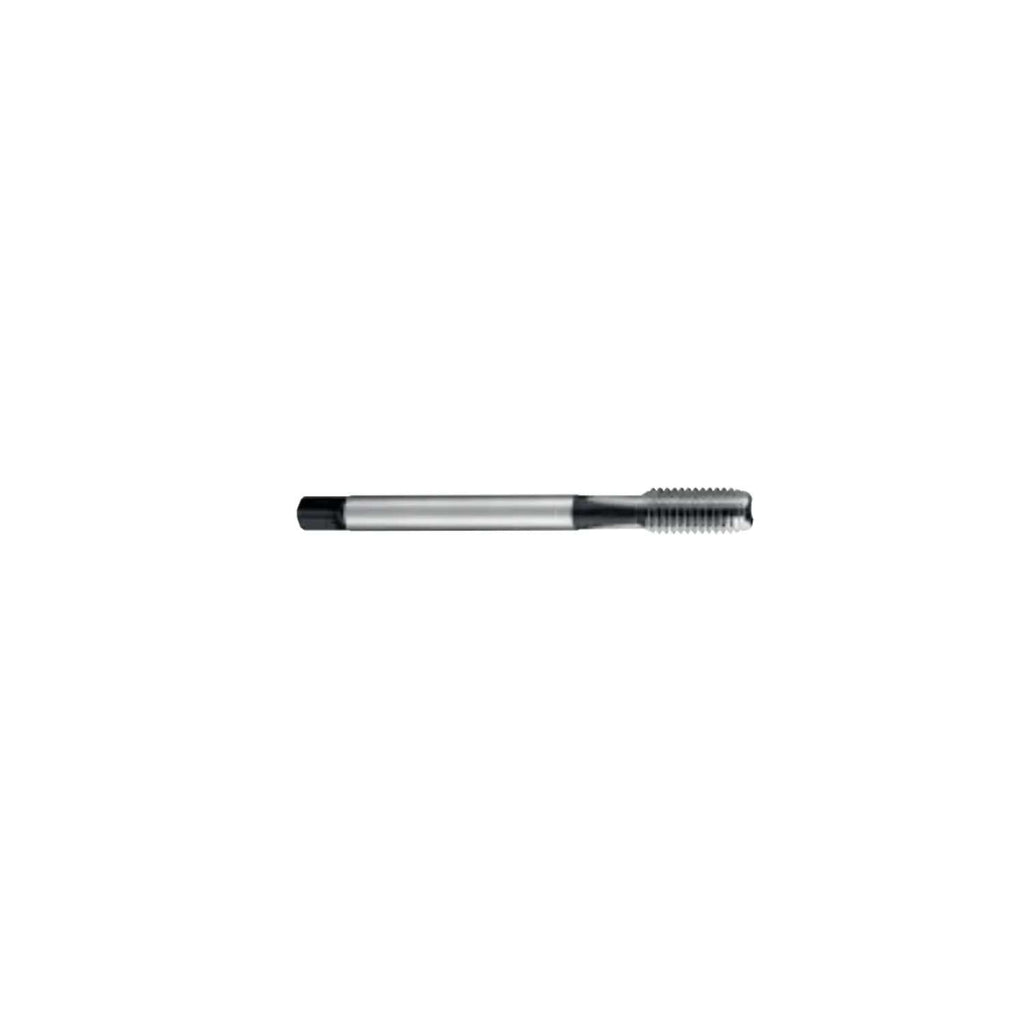

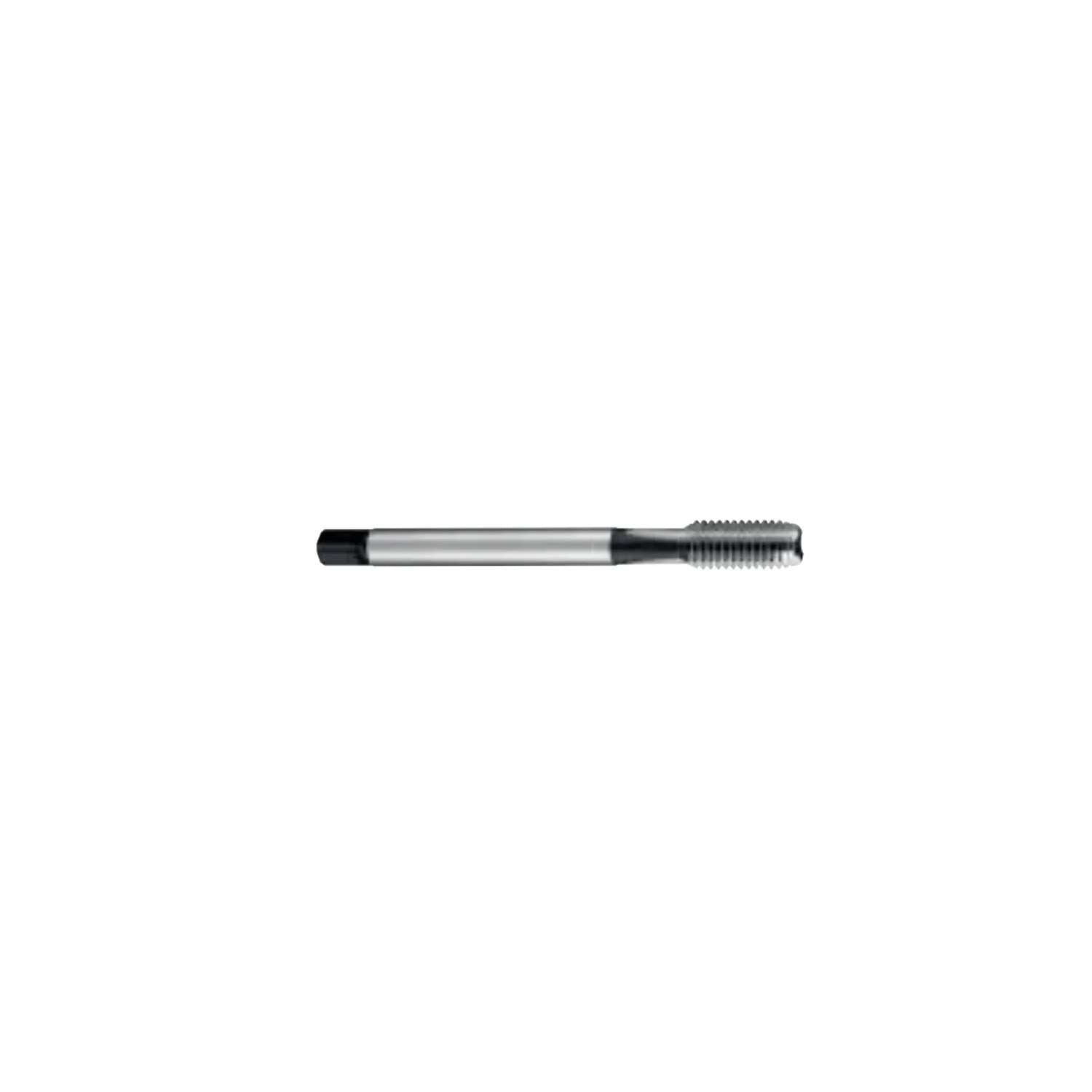

C - shaped machine tap for general applications DIN 376 - ILIX

IlixSKU: 232_013_IL6705___232_013_IL670514

nome_variante: Ø Drill bit
variante_1: 14 mm - IL670514
Price:
Sale priceDhs. 248.00
Availability : 3

Description

N - GENERIC APPLICATIONS - DIN 376 - CATALOGUE 6705

Material: HSS-CO

Notes: for deep tapping from 1 to 1.5 times the ø of the male

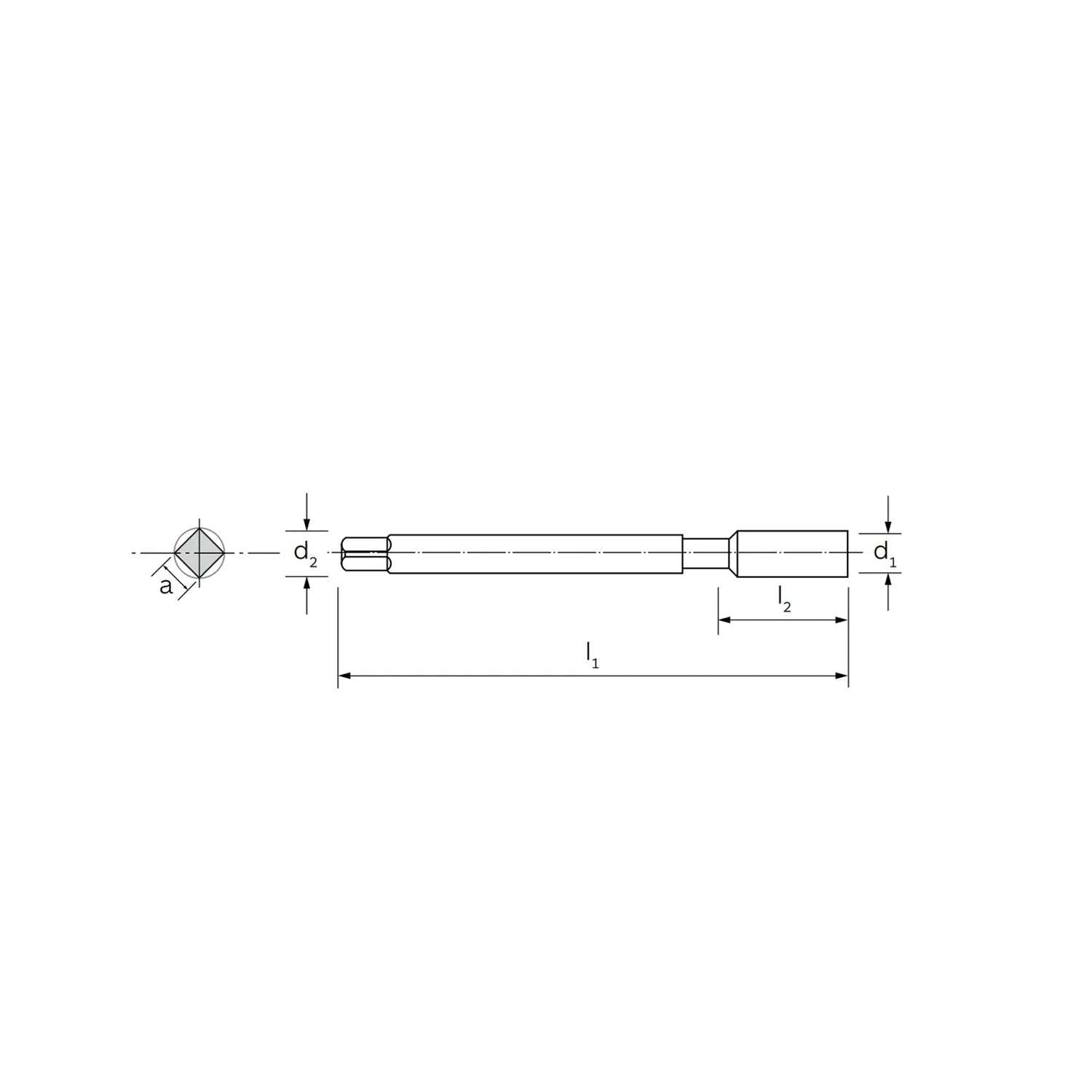

Ø L1 L2 L3 D2 h9 a h12 Ø Pre-hole Passo
3 56 11 5 2.2 - 2.5 0.5
4 63 13 7 2.8 2.1 3.3 0.7
5 70 16 8 3.5 2.7 4.2 0.8
6 80 19 10 4.5 3.4 5 1
14 110 30 20 11 9 12 2
