Description

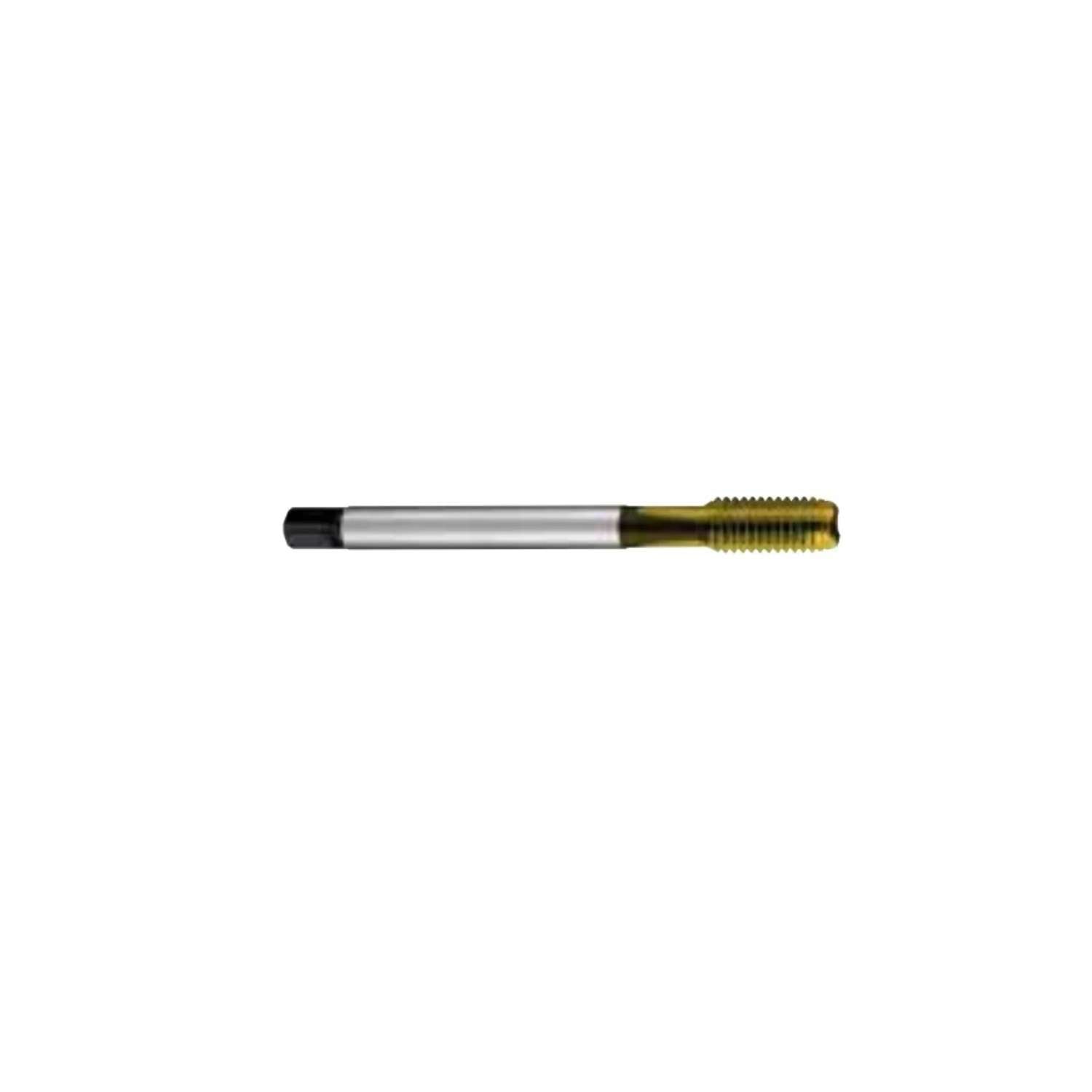

N - GENERAL APPLICATIONS - DIN 376 - CATALOGUE 6705TN
Material: HSS-CO
Coating: TN
Notes: for deep tapping from 1 to 1.5 times the ø of the male.

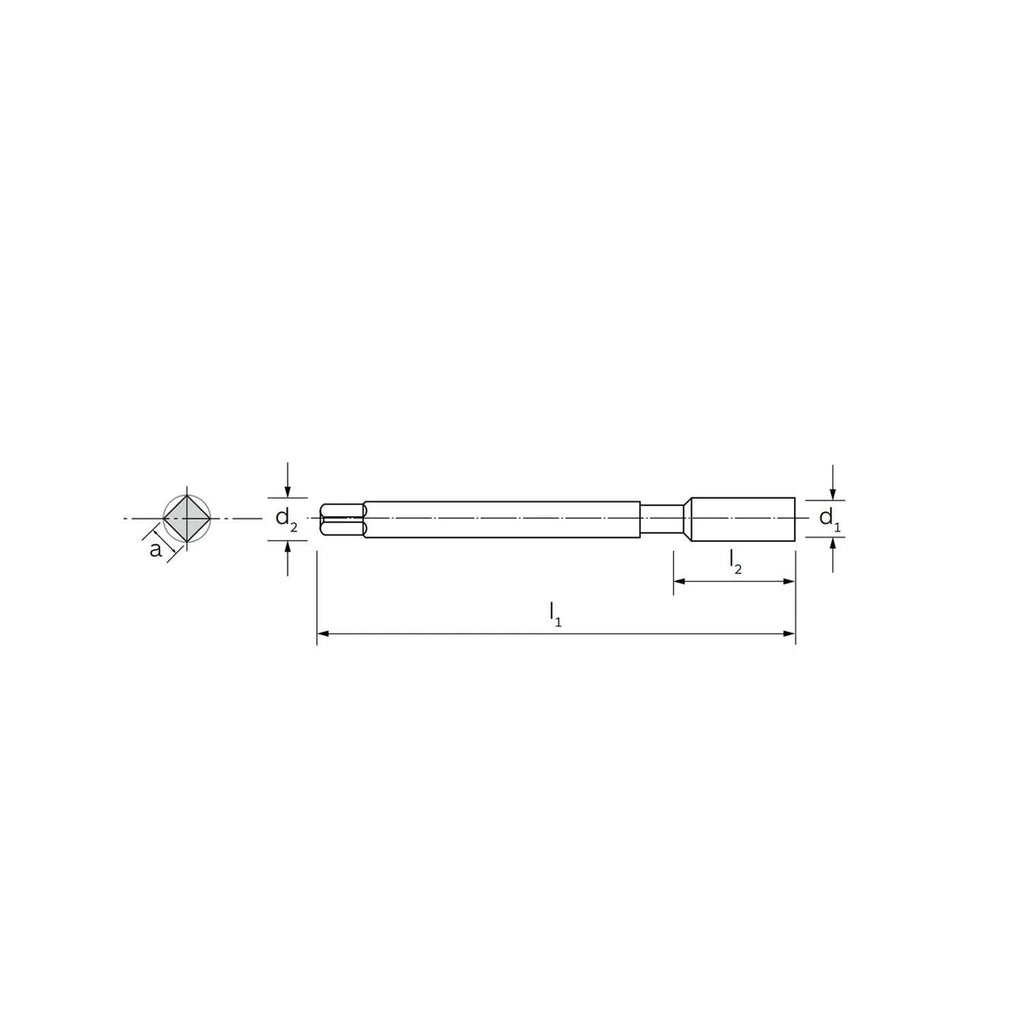

Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
5 | 70 | 16 | 8 | 3.5 | 2.7 | 4.2 | 0.8 |
12 | 110 | 29 | 16 | 9 | 7 | 10.2 | 1.75 |
30 | 110 | 45 | 35 | 22 | 18 | 26.5 | 3.5 |
