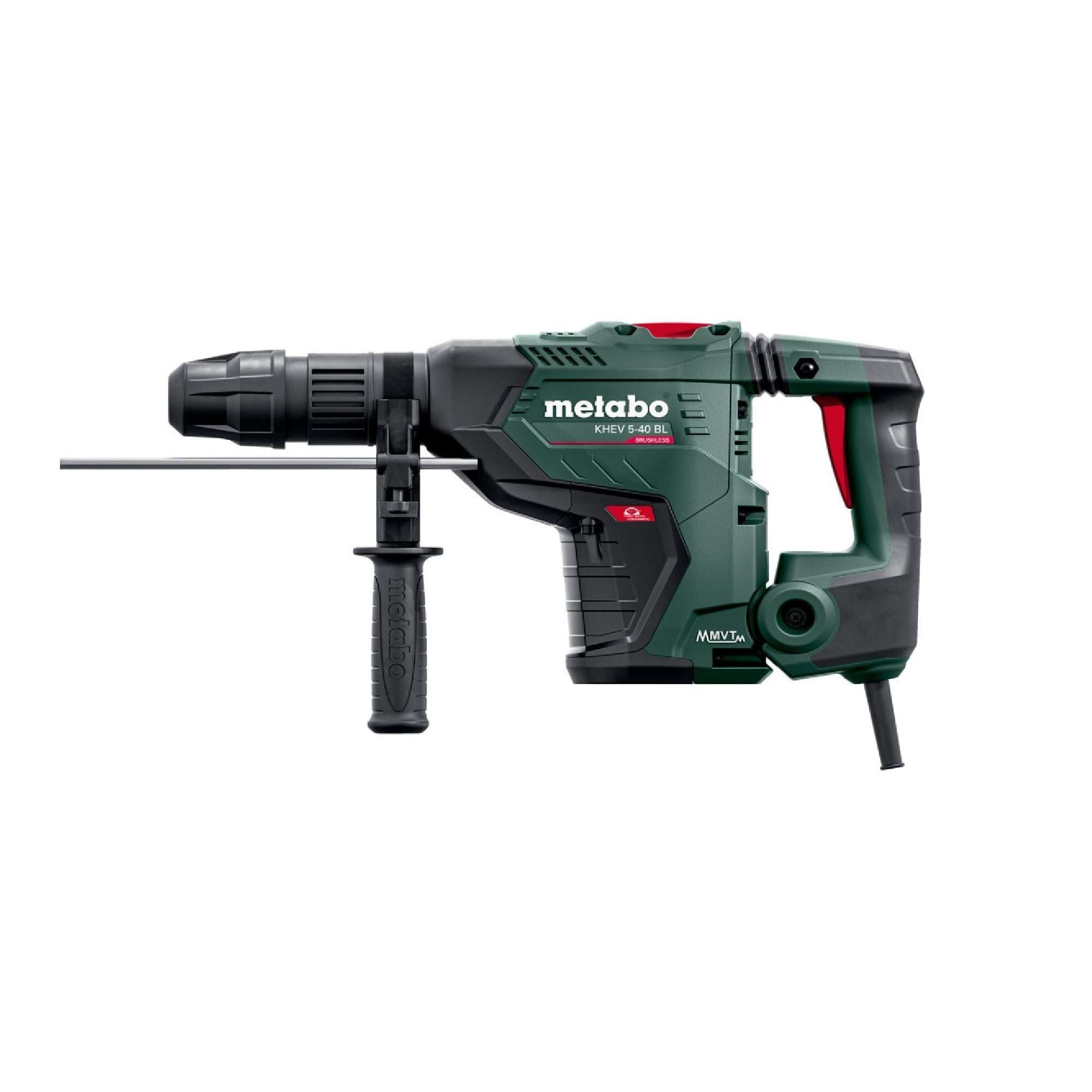

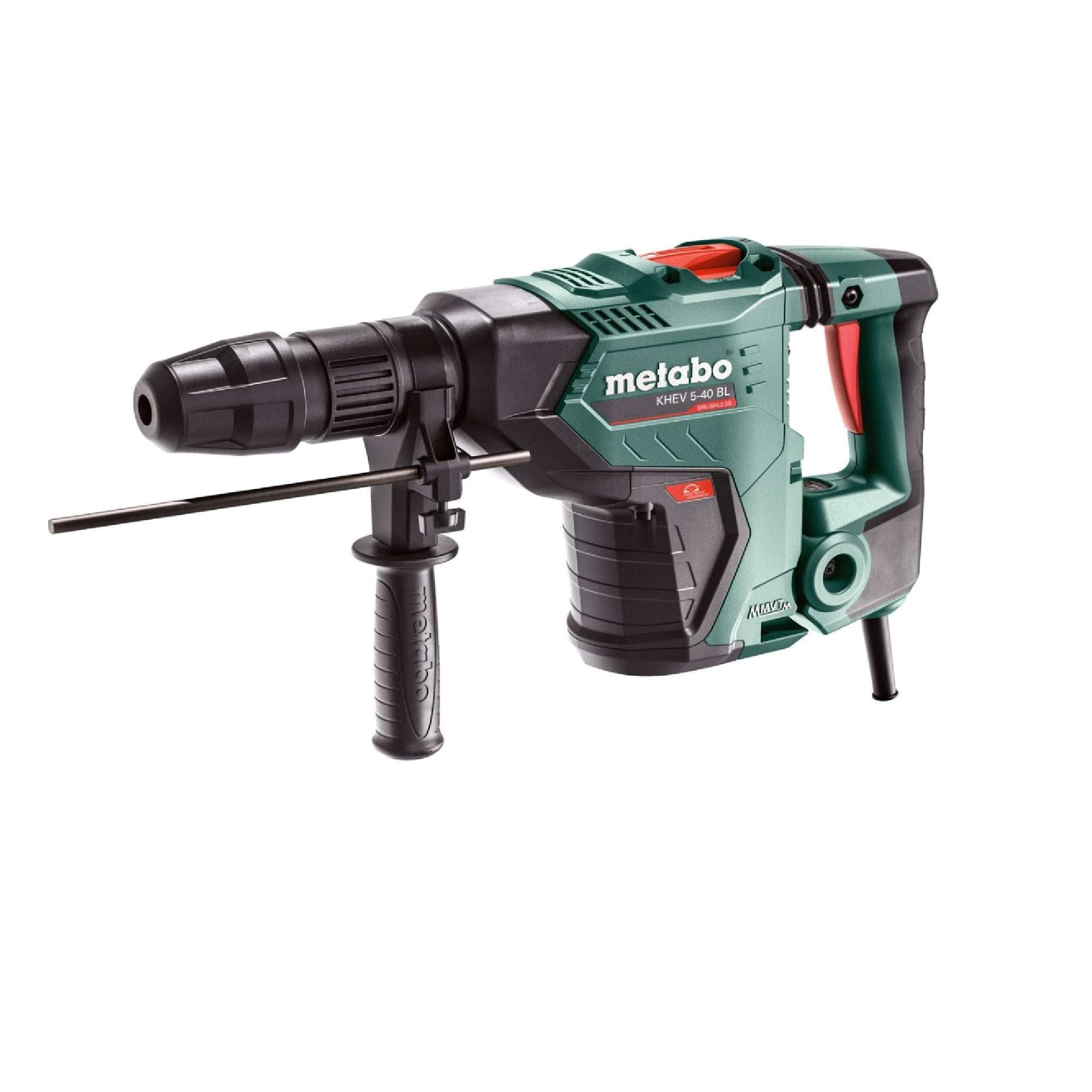

Combination hammer 8.7 J - Metabo KHEV 5-40 BL

Features

• Maximum drilling progression and high breaking power due to maintenance-free brushless motor and high-performance hammer action

• Long life due to brushless technology and robust die-cast aluminum gearbox and motor housings

• Combination hammer with 2 functions: impact drilling and chiseling

• Metabo VibraTech (MVT) with double damping: decoupled handle and shock-absorbing counter-oscillating weight actively reduce vibrations for healthy work even during prolonged use

• Slim, ergonomic grip area with large speed control trigger for comfortable work

• Easily accessible locking switch for chiseling in continuous mode

• Full-wave Vario-Tacho-Constamatic (VTC) electronics for working with materials requiring customized speeds that remain constant under load

• Optional speed and impact energy reduction for starting a drill hole or working on softer materials

• Electronic progressive start for precise drilling

• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working in case the drill stops unexpectedly

• Restart protection: prevents unintentional start-up after a power failure

• Overload protection: protects the motor from overheating

• Low dust chiseling and drilling with external dust extraction ESA max (accessories)

Technical specifications

Maximum single shot energy (EPTA): 8.7 J

Maximum impact rate: 2900 beats per minute

Rated input power: 1150 Power

Drilling concrete with hammer drills: 40 millimeters / 1 9/16 ”

Drilling Ø masonry with core bits: 105 millimeters / 4 1/8 ”

No-load speed: 350 / 500 rpm

Speed at rated load: 350 / 500 rpm

Bit retaining device: SDS max

Collar diameter: 64.6 millimeters / 2 9/16 ”

Weight (without power cord): 8.3 kg / 18.3 pounds

Cable length: 6 meters / 236 7/32 ”

Vibration

Concrete hammer drilling: 10.8 m/s²

Uncertainty of K measurement: 1.5 m/s²

Concrete chiseling: 9.6 m/s²

Uncertainty of K measurement: 1.5 m/s²

Noise emission

Sound pressure level: 93 dB(A)

Sound power level (LwA): 104 dB(A)

Measurement uncertainty K: 3 dB(A)

Equipment

• Rubber-coated side handle
• Duster
• Plastic carrying case
• Drilling depth guide
• Lubricant for the end of the tool shank
