Description

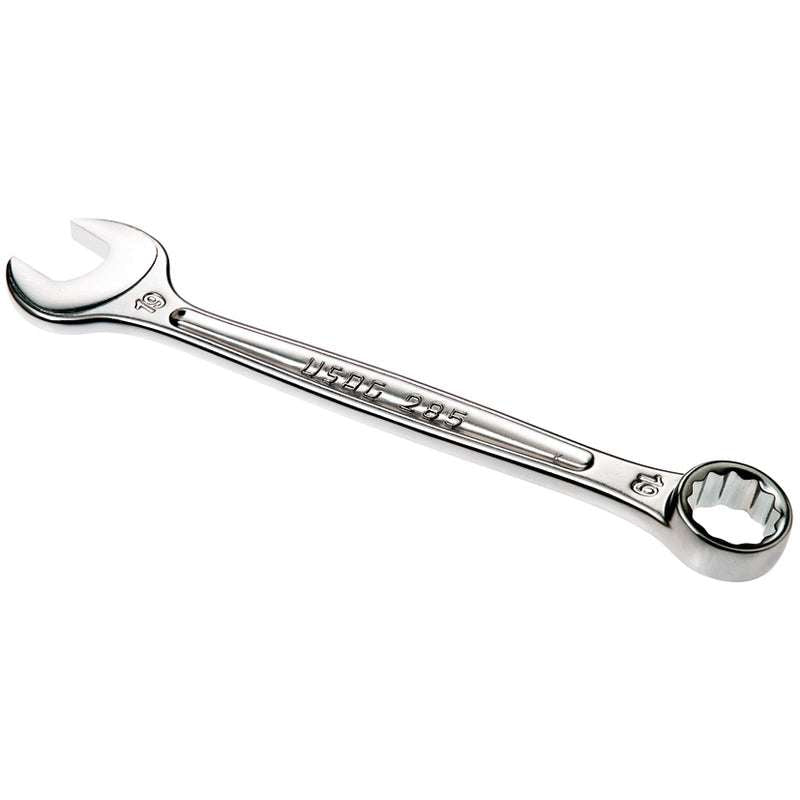

Combination wrench with uneven polygonal head - USAG 285
ISO 7738
- Chrome Vanadium Steel
- Lowered fork inclined by 15°
- Ergonomic handle
- Polygonal head offset and bent by 15°
- Ring with hexagonal profile for 5.5 mm size only, polygonal for larger sizes

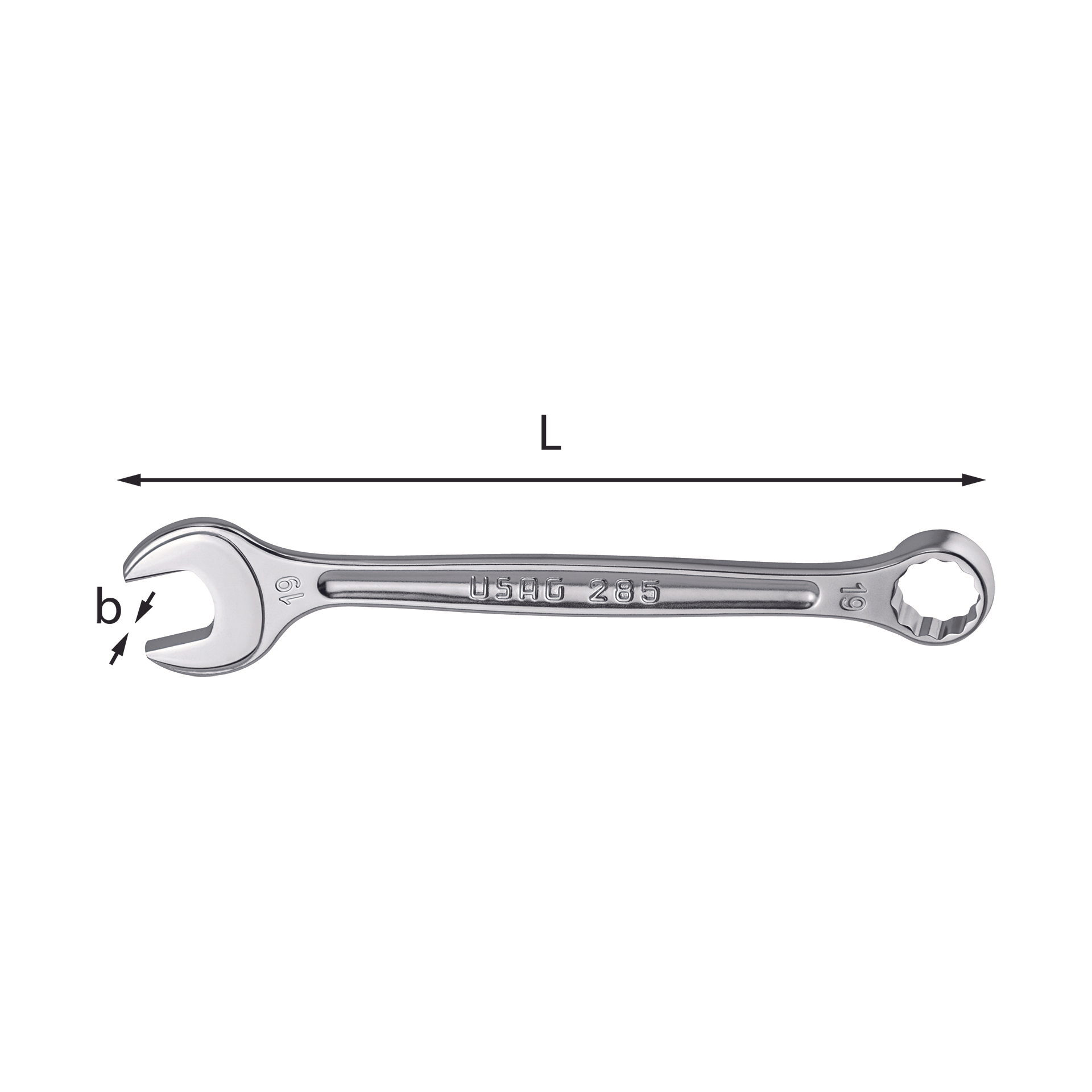

| Code |
 Polygonal mouth mm
|
L mm | b mm |
|---|---|---|---|
| U02850700 | 5,5 | 115 | 3,8 |
| U02850701 | 6 | 115 | 4,0 |
| U02850702 | 7 | 122 | 4,1 |
| U02850703 | 8 | 133 | 4,6 |
| U02850704 | 9 | 138 | 4,6 |
| U02850705 | 10 | 145 | 5,1 |
| U02850706 | 11 | 155 | 5,2 |
| U02850707 | 12 | 162 | 5,4 |
| U02850708 | 13 | 170 | 5,7 |
| U02850709 | 14 | 180 | 5,9 |
| U02850710 | 15 | 185 | 6,1 |
| U02850711 | 16 | 195 | 6,6 |
| U02850712 | 17 | 202 | 6,6 |
| U02850713 | 18 | 208 | 7,4 |
| U02850714 | 19 | 216 | 7,4 |
| U02850715 | 20 | 224 | 7,5 |
| U02850716 | 21 | 233 | 8,3 |
| U02850717 | 22 | 248 | 8,6 |
| U02850718 | 23 | 257 | 8,9 |
| U02850719 | 24 | 267 | 8,9 |
| U02850722 | 27 | 295 | 9,8 |
| U02850723 | 28 | 305 | 9,8 |
| U02850724 | 29 | 320 | 10,5 |
| U02850725 | 30 | 340 | 10,5 |
| U02850726 | 32 | 355 | 11,0 |
| U02850727 | 34 | 390 | 11,0 |
| U02850728 | 35 | 430 | 11,5 |
| U02850729 | 36 | 440 | 12,8 |
| U02850731 | 41 | 460 | 14,0 |
