Description

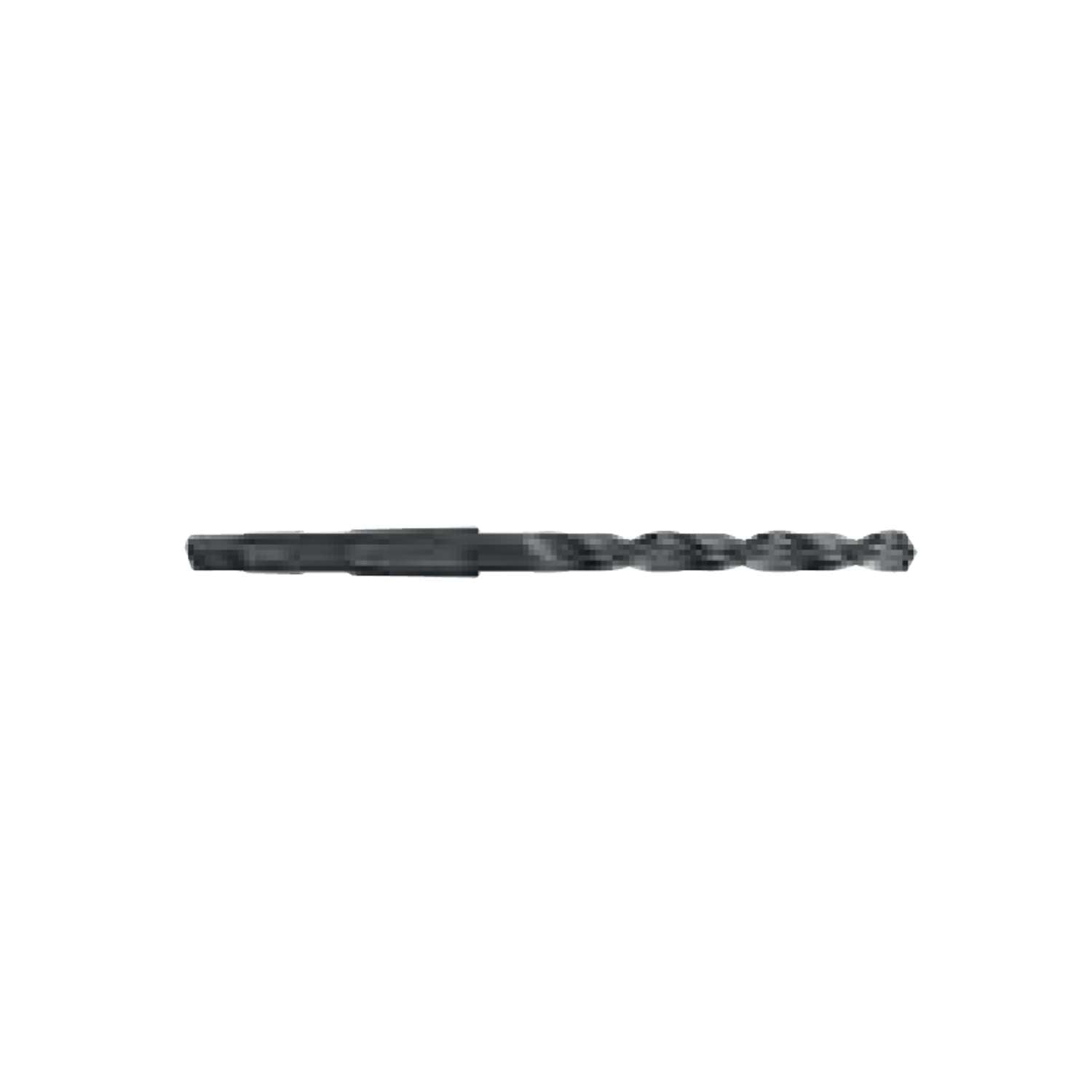

N - GENERAL PURPOSE APPLICATIONS - DIN 345 - CATALOGUE 6168

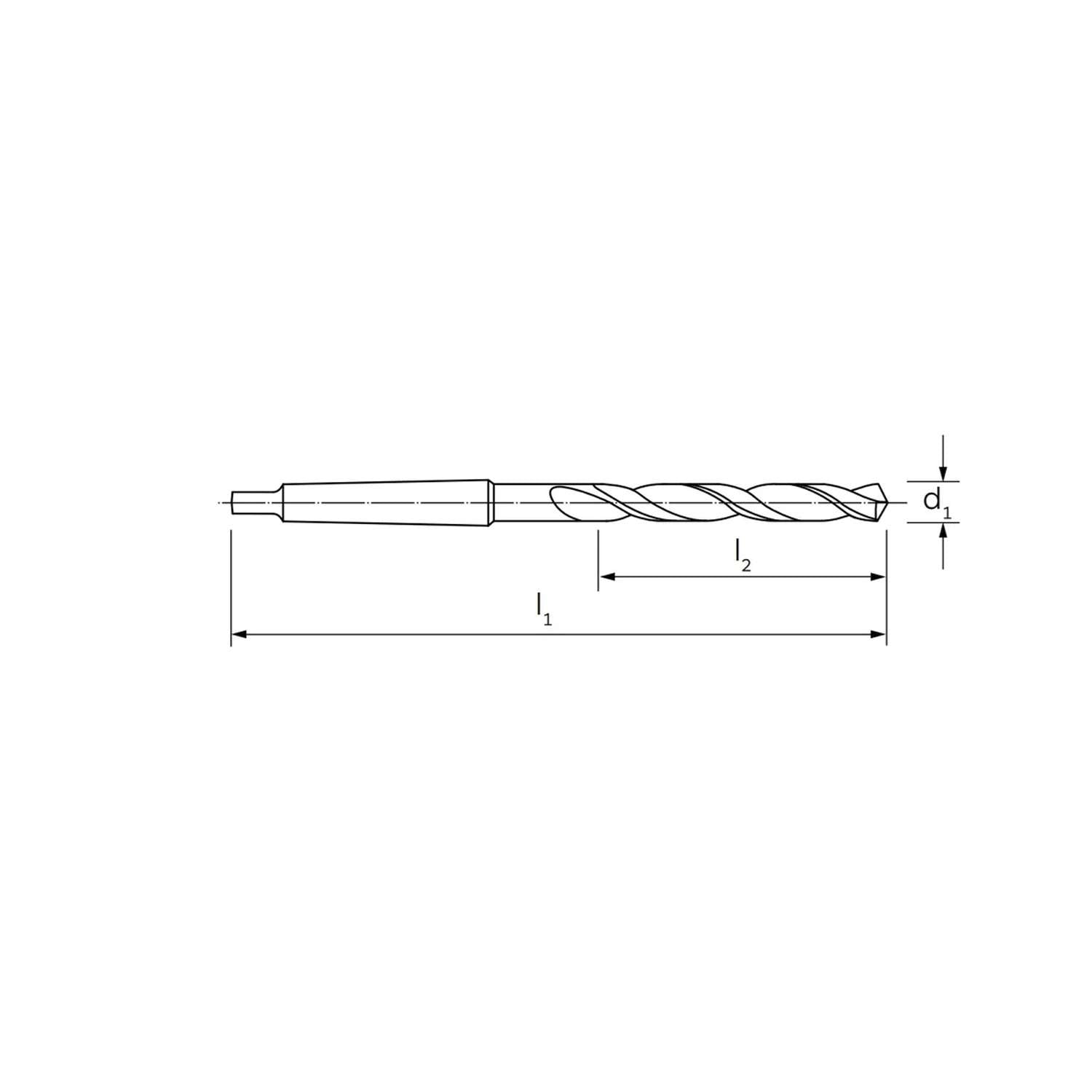

Ø | L1 | L2 | CM | Ø POLLICI |
21 | 243 | 145 | 2 | - |
21.2 | 243 | 145 | 2 | - |
22 | 248 | 150 | 2 | - |
22.225 | 248 | 150 | 2 | 7/8 |
23.25 | 248 | 150 | 2 | - |
23.75 | 276 | 155 | 3 | - |
24 | 281 | 160 | 3 | - |
24.25 | 281 | 160 | 3 | - |
24.75 | 281 | 160 | 3 | - |
25 | 281 | 160 | 3 | - |
25.5 | 286 | 165 | 3 | - |
25.75 | 286 | 165 | 3 | - |
26.25 | 286 | 165 | 3 | |
26.75 | 291 | 170 | 3 | |
27 | 291 | 170 | 3 | |
27.25 | 291 | 170 | 3 | |
28 | 291 | 170 | 3 | |
28.75 | 296 | 175 | 3 | |
29.75 | 296 | 175 | 3 | |
30 | 296 | 175 | 3 | |
31.5 | 301 | 180 | 3 | |
32 | 334 | 185 | 4 | |
33.5 | 334 | 185 | 4 | |
39 | 349 | 200 | 4 | |
41 | 354 | 205 | 4 |
