Description

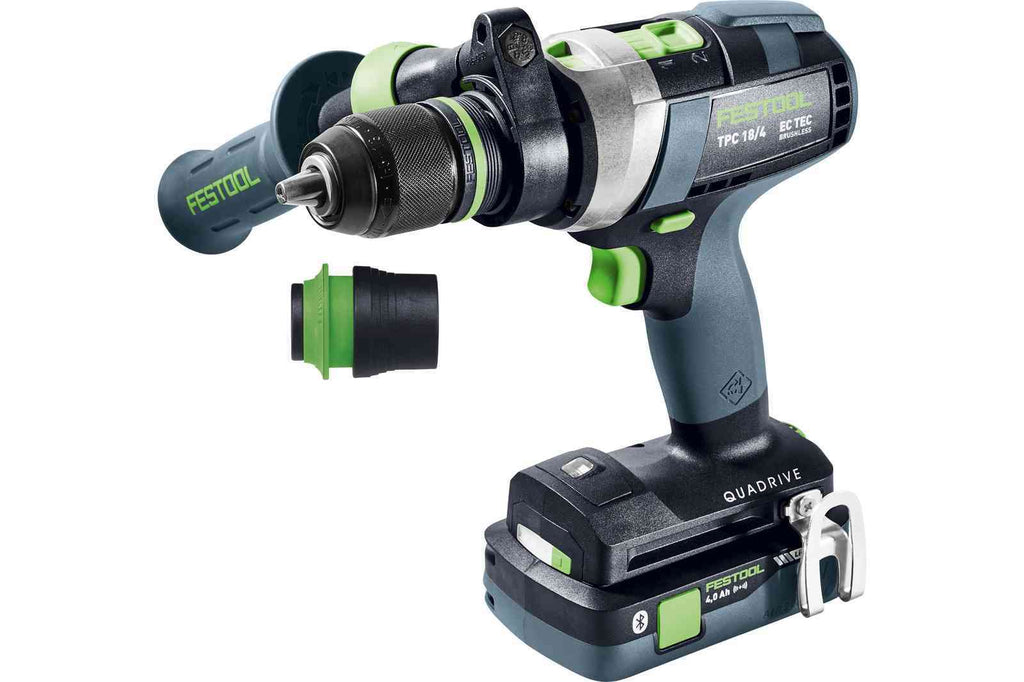

Cordless impact drill driver QUADRIVE TPC 18/4 5.0/4.0 I-Plus - Festool
Powerful. Versatile. With 4 speeds for every application. With the best engagement system you have ever used. Regardless of whether it is in wood, metal or, thanks to the pluggable percussion, masonry: the TPC is extremely robust and with its brushless EC-TEC motor has enormous strength and durability.
Numerous chucks, combined with perfectly coordinated accessories, make the QUADRIVE an unbeatable impact drill/screwdriver for a wide variety of applications. What about the dangerous twisting of the wrist if the tool used suddenly jams? Our intelligent KickbackStop minimises the risk of this happening. Try it out: the best impact drill/screwdriver Festool has ever made!
- Power for screwing and drilling work with large diameters, speed for clean work progress with smaller diameters
- Maximum power: thanks to extremely powerful and durable brushless EC-TEC motor
- Robust: indestructible 4-speed metal gearbox totally safe thanks to comprehensive services provided by Festool Service
- For even more variety of applications: switchable axial percussion for drilling in brickwork
- The QUADRIVE with 4 speeds for any work situation: from screwdriving with 50 Nm torque in 1st speed to precise drilling with 3,600 rpm in 4th speed
- Versatile: thanks to the FastFix interface, fast and tool-free conversion into drilling, screwdriving, angle drilling and angle screwing
- The depth stop and eccentric device also allow limited screwdriving in depth and close to edges
- Flexible battery system: for applications requiring high power, the 4.0 Ah Li-HighPower Compact battery offers the ideal combination of strength, compactness and lightness.
- For even more power, the 5.0 Ah battery pack is the right choice for particularly heavy drilling and screwdriving applications. Full coverage: Naturally, the comprehensive
- Festool Service also applies to the battery pack
- Comfortable: optimum illumination of the working area thanks to switchable LED light - can also be controlled via the Work App

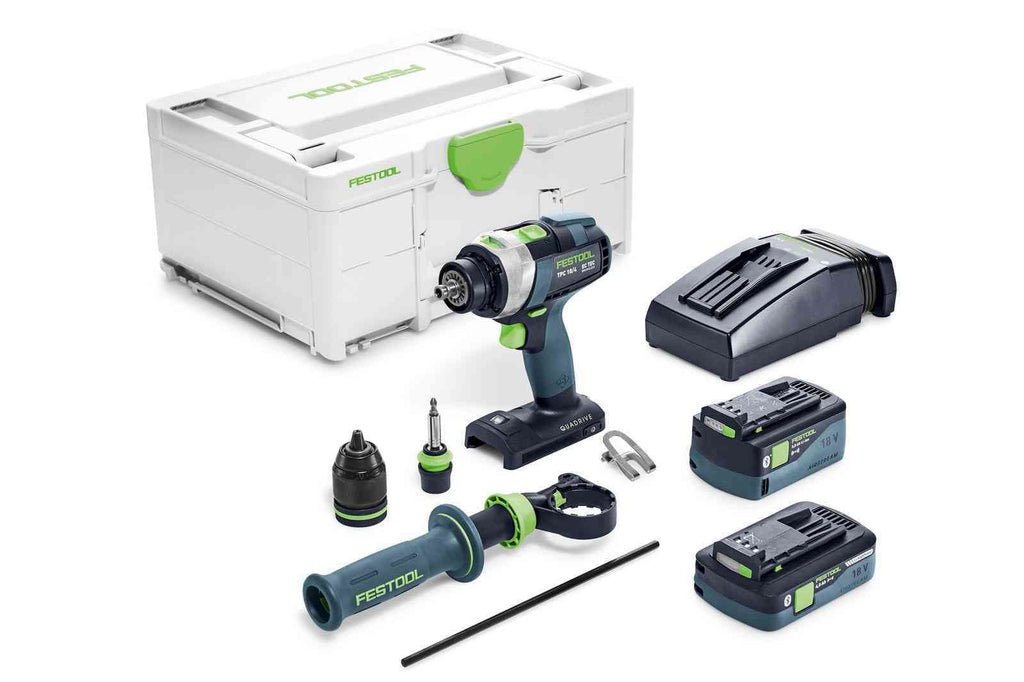

- Mobile: the QUADRIVE is supplied in the Systainer³ - and can therefore be perfectly integrated into the vehicle equipment bott for easy transport from the workshop to the construction site
Main applications
- Creating wooden substructures, frame structures
- Installation of doors and windows
- Drilling and screwing in wood, metal and plastic
- Screwing in wood with screws up to 10x300 mm
- Drilling in wood up to 70 mm with Forstner drills
- Drilling with percussion in bricks or masonry
Technical Data
Speed: 4
No. of no-load speeds 1st/2nd speed: 0 - 500/0 - 800 min-¹
No. of no load revs 3rd/4th speed: 0 - 2350/0 - 3600 min-¹
Max. no. of impacts: 57600.00 min-¹
Drilling diameter wood/steel: 70/13 mm
Drilling diameter in masonry (brick): 10.00 mm
Torque control 1st/2nd speed: 2 - 20/2 - 20 Nm
Max. torque wood/steel: 50/75 Nm
Drill chuck opening: 1.5 - 13 mm
Battery capacity: 4.0/5.0 Ah
Product weight without accessories: 1.30 kg
Transport weight with accessories: 6.60 kg
Technology: Bluetooth
Drive type: Battery
Electronics
adjustable number of revolutions for processing adapted to the material
Torque disconnection
an intelligent technique to provide the optimum screwing force for each material
IoT
Integration with the Festool Work App enables the read-out of operating data and further customisation possibilities on the tool, for more efficient work.
FastFix
It facilitates the changing of milling, cutting, planing, sanding, drilling and screwing tools.
EC-TEC motor
The EC-TEC brushless drive philosophy guarantees exceptional power delivery with minimal energy consumption.
KickbackStop System
The electronic KickbackStop counteracts the dangerous twisting of the wrist in the event of sudden jamming or blocking of the drill bit, thus ensuring greater safety while working.
NOISE
Drilling in metal: Standard series EN: 62841
Drilling in metal: Uncertainty (noise) K: 5.00 dB
Drilling in metal: Uncertainty (vibration) K: 1,50 m/s²
Drilling in metal: Sound pressure level LpA type A: 73.00 dB(A)
Drilling in metal: Sound power level LWA type A: 84.00 dB(A)
Screwing: Mean total vibration value ah: 2.50 m/s².
Screwing: EN standard series: 62841
Screw on: Uncertainty (noise) K: 5,00 dB
Screw on: Uncertainty (vibration) K: 1,50 m/s²
Screw-on: Sound pressure level LpA type A: 73.00 dB(A)
Screw-on: Sound power level LWA type A: 84.00 dB(A)
