Description

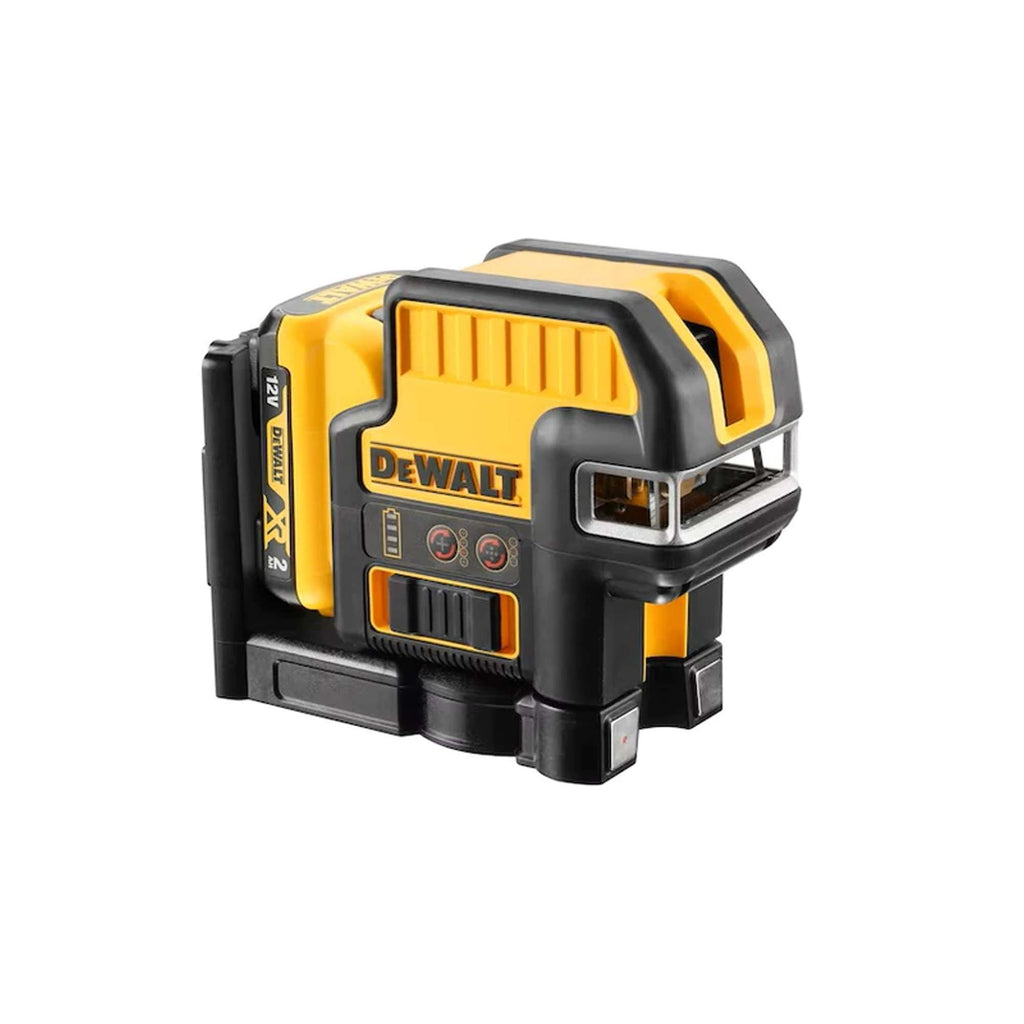

Laser marker with red beam, class 2. Projects 2 horizontal and vertical cross lines + 5 spots: 2 plumb + 1 front spot + 2 90° side spots.
Projects a full cross line (horizontal and vertical) + 5 independent spot points enables a multi-purpose instrument
The cross line function features a 150 degree fan angle offering wide coverage with reduced installation time
Provides visibility and spot alignment for wall track layout
Integrated magnetic bracket allows direct mounting on metal track to ensure accurate projections throughout
Full-time pulse mode allows use with detector that maintains full brightness for visibility and extends range
Overmoulded housing and IP65 water/debris resistance - 1.5 M drop resistance, durable design
Locking pendulum to help prevent damage to internal components
¼ and 5/8 threading. Screw threaded platform can allow fine adjustment by moving the unit forward / backward when placed on a tripod
Range: points 30 m, lines 20 m
Battery indicator
Includes
(1) TSTAK compatible box
(1) 10.8 V / 2 Ah battery pack
(1) battery charger
(1) Objective lens
(1) laser detection glasses
(1) ceiling bracket
Specifications
Laser beam colour
Red beam
Number of batteries included
1
