Description

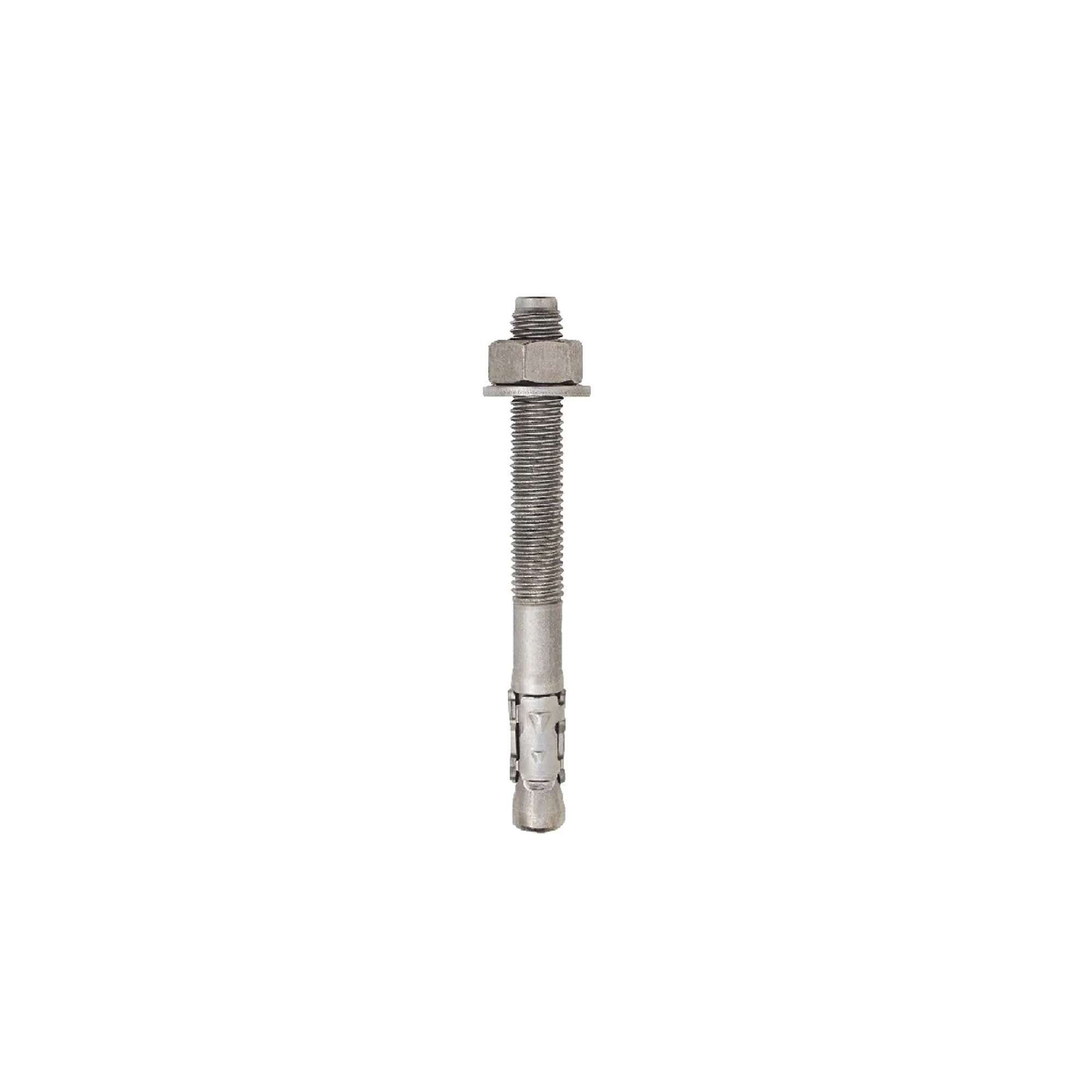

Heavy duty through anchor with seismic certification - FM-753 CRACK 3DG
CERTIFICATIONS
Seismic performance C1 and C2
Cracked concrete
Fire resistance R120
Assembled
Hardened and tempered anchor body grade 9.8
Stainless steel A4 clip
Special anti-corrosion coating with glossy finish
| Cod | Dim. Ø x L | Thread length | Fixing thickness for embedment depth reduced | Fixing thickness for embedment depth standard | Pkg. |
| 75350B08090 | M8x90 | 40 | 39 | 25 | 100 |
| 75350b08075 | M8x75 | 30 | 24 | 10 | 100 |
| 75350b10090 | M10x90 | 40 | 30 | 10 | 50 |
| 75350B10105 | M10x105 | 55 | 45 | 25 | 50 |
| 75350B12145 | M12x145 | 85 | 65 | 45 | 25 |
| 75350b12170 | M12x170 | 85 | 90 | 70 | 25 |
| 75350b12110 | M12x110 | 65 | 30 | 10 | 50 |
| 75350b16220 | M16x220 | 85 | 120 | 100 | 15 |
| 75350b16130 | M16x130 | 65 | 30 | 10 | 20 |
| 75350B16185 | M16x185 | 85 | 80 | 60 | 20 |
