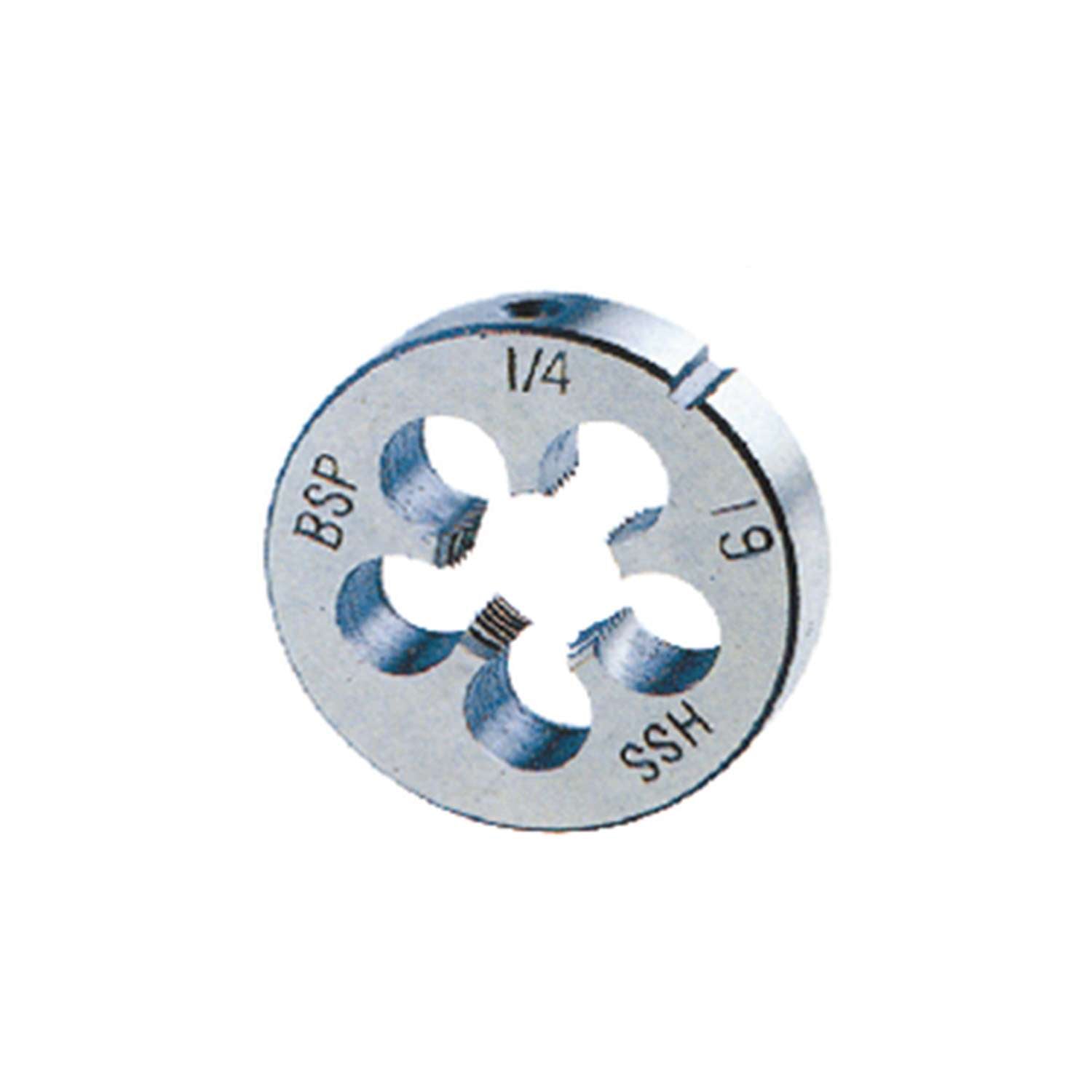

HSS die for cylindrical thread cutting BSP - UT 10 FT

echoENGSKU: 309_001_UT 10 FT (00-10)___309_001_UT 10 FT00

nome_variante: Misura
variante_1: G1/8” - UT 10 FT00
Price:
Sale priceDhs. 8.00
Availability : 77

Description

HSS die for cylindrical thread cutting, DIN 5158.

Model UT 10 FT00 Specifications:

Size                 Inches G1/8

Pitch                TPI       28

Ø                     mm     30

Thickness         mm     11



Model UT 10 FT01 Specifications:

Size                 Inches G1/4

Pitch                TPI       19

Ø                     mm     38

Thickness         mm     10



Model UT 10 FT02 Specifications:

Size                 Inches G3/8

Pitch                TPI       19

Ø                     mm     45

Thickness         mm     14



Model UT 10 FT03 Specifications:

Size                 Inches G1/2

Pitch                TPI       14

Ø                     mm     45

Thickness         mm     14



Model UT 10 FT04 Specifications:

Size                 Inches G5/8

Pitch                TPI       14

Ø                     mm     55

Thickness         mm     16



Model UT 10 FT05 Specifications:

Size                 Inches G3/4

Pitch                TPI       14

Ø                     mm     55

Thickness         mm     16



Model UT 10 FT06 Specifications:

Size                 Inches G7/8

Pitch                TPI       14

Ø                     mm     65

Thickness         mm     18



Model UT 10 FT07 Specifications:

Size                 Inches G1

Pitch                TPI       11

Ø                     mm     65

Thickness         mm     18



Model UT 10 FT08 Specifications:

Size                 Inches G1-1/8

Pitch                TPI       11

Ø                     mm     75

Thickness         mm     20



Model UT 10 FT09 Specifications:

Size                 Inches G1-1/4

Pitch                TPI       11

Ø                     mm     75

Thickness         mm     20



Model UT 10 FT10 Specifications:

Size                 Inches G1-1/2

Pitch                TPI       11

Ø                     mm     90

Thickness         mm     20
