Description

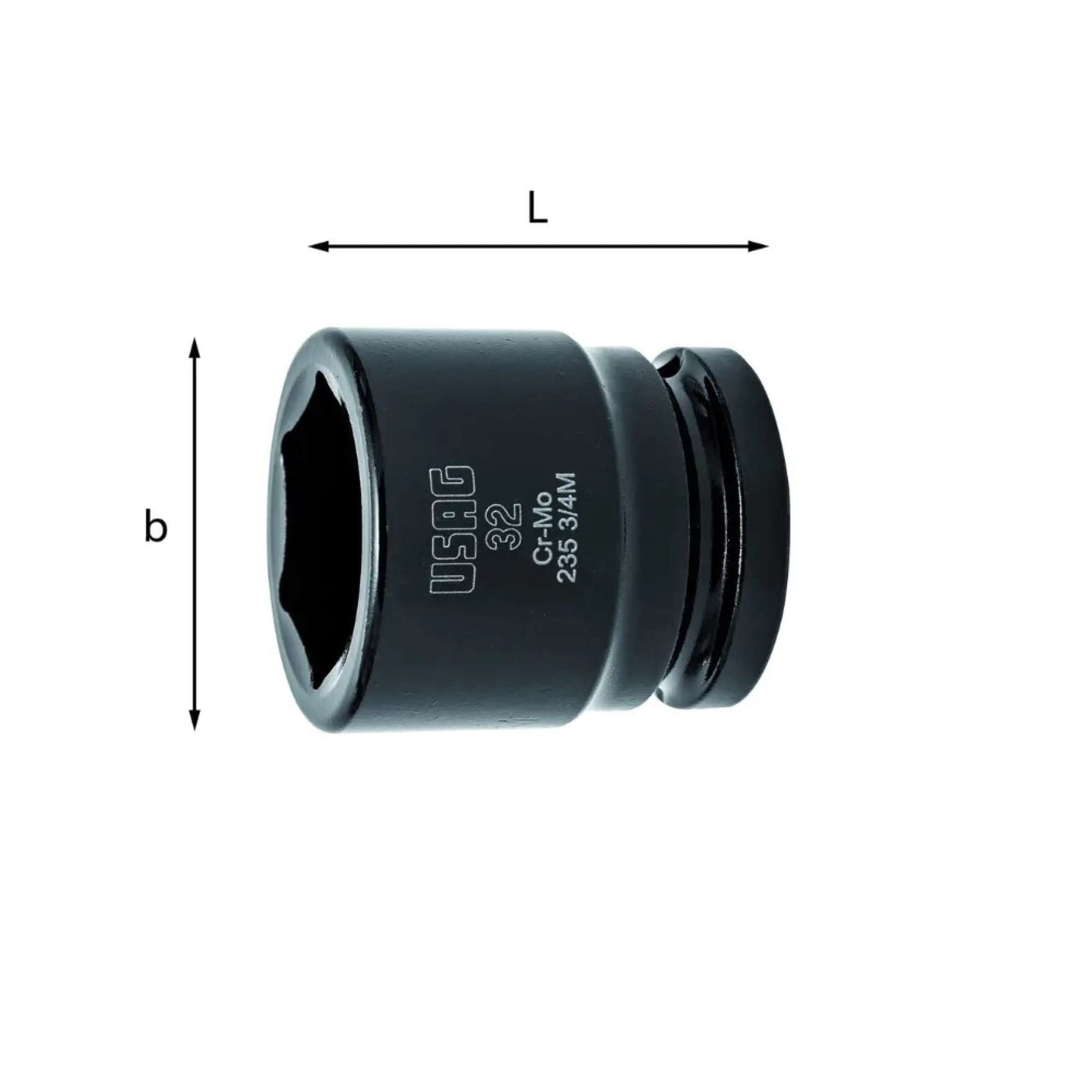

Machine socket wrenches with hexagonal mouth - 235 3/4 M Usag
ISO 2725-2
- Highly alloyed chrome molybdenum special steel
- Phosphated execution
- Use seal pin 235 MCA/7 (U02350211Q) for sizes 17÷32 and 235 MCA/8 (U02350207Q) for sizes 33÷60
- Use the retaining ring 235 MDA/7 (U02350231Q) for 17÷32 measurements and the 235 MDA/8 (U02350227Q) for 33÷60 measurements
| Code |
 Hexagonal mouth mm
|
b mm | L mm | Q.ty x pkg. |
|---|---|---|---|---|
| U02350303 | 19 | 30,5 | 50 | 1 |
| U02350306 | 22 | 35 | 52 | 1 |
| U02350308 | 24 | 38 | 52 | 1 |
| U02350311 | 27 | 41 | 52 | 1 |
| U02350313 | 30 | 46 | 52 | 1 |
| U02350314 | 32 | 48 | 52 | 1 |
