Description

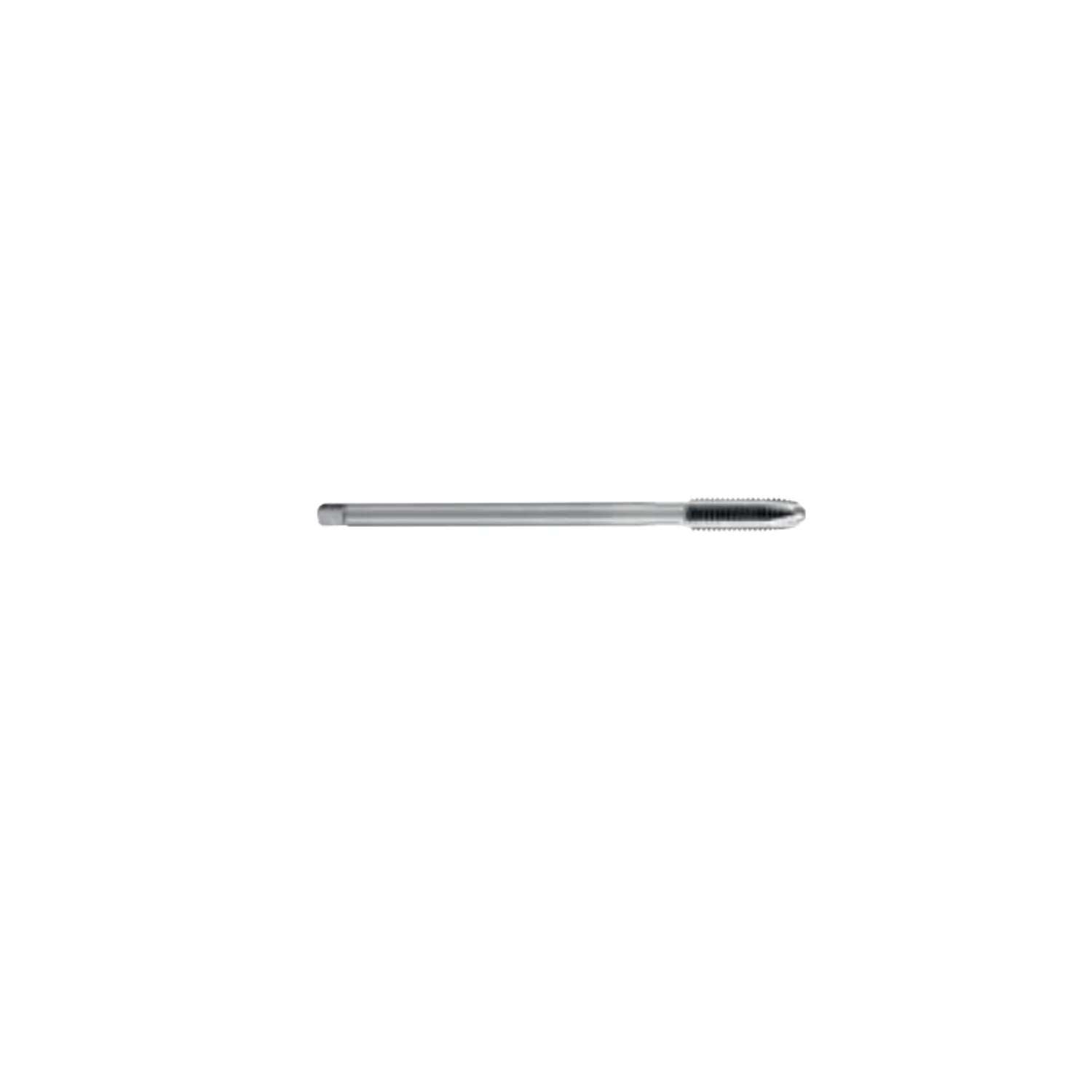

LONG STEM - GENERAL APPLICATIONS - DIN 357 - CATALOGUE 6672
Material: HSS-CO
Notes: for through holes up to 1.5 times the ø of the male

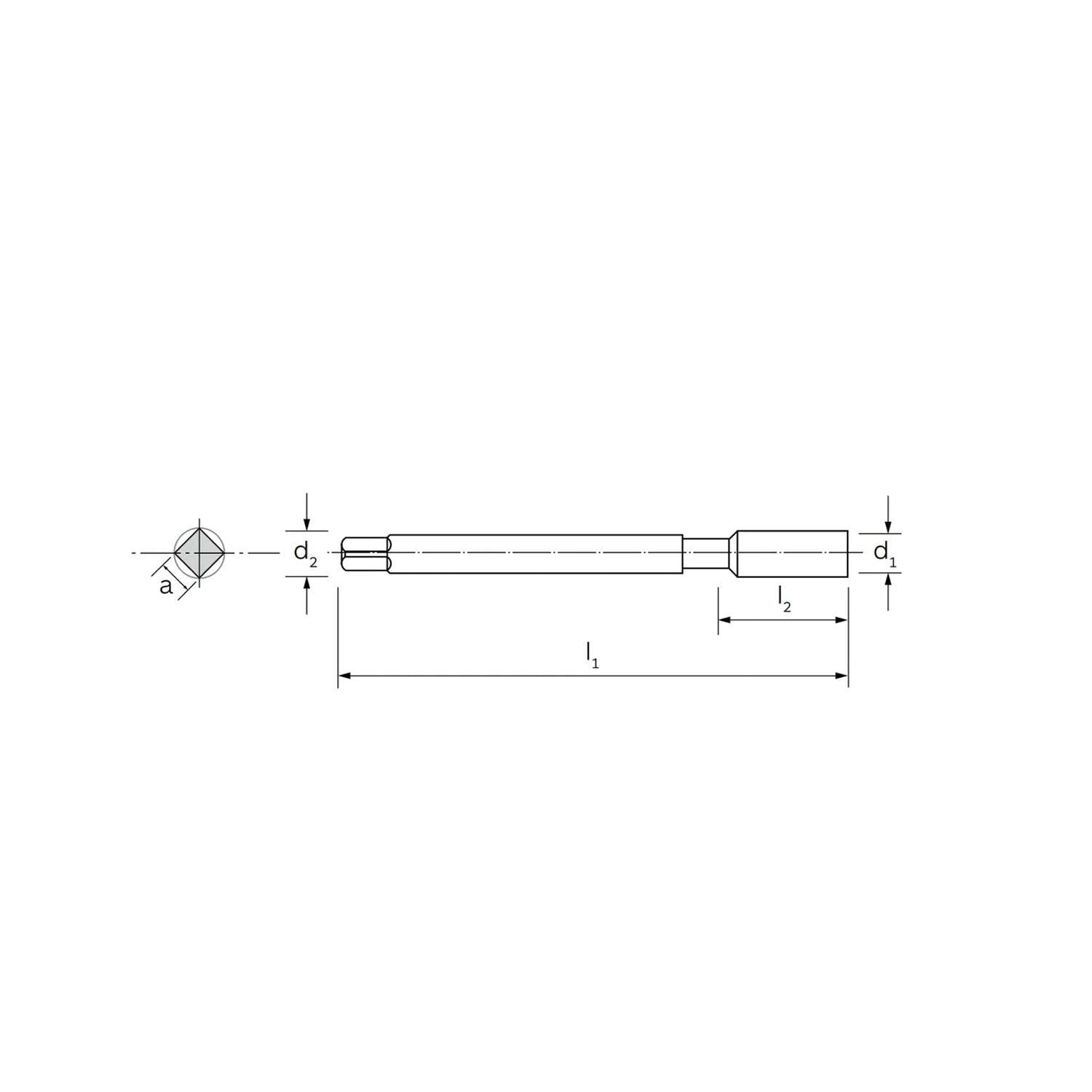

| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 3 | 70 | 18 | 2.2 | - | 2.5 | 0.5 |
| 4 | 90 | 22 | 2.8 | 2.1 | 3.3 | 0.7 |
| 10 | 140 | 30 | 7 | 5.5 | 8.5 | 1.5 |
| 12 | 180 | 35 | 9 | 7 | 10.2 | 1.75 |
