Description
- Base and edges designed, machined and checked to the highest precision standards to offer 0.1° accuracy in precision applications
- The cam action arm locking function makes setting faster and easier by allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
- Compact and lightweight, easy to transport to the job site
Product Overview

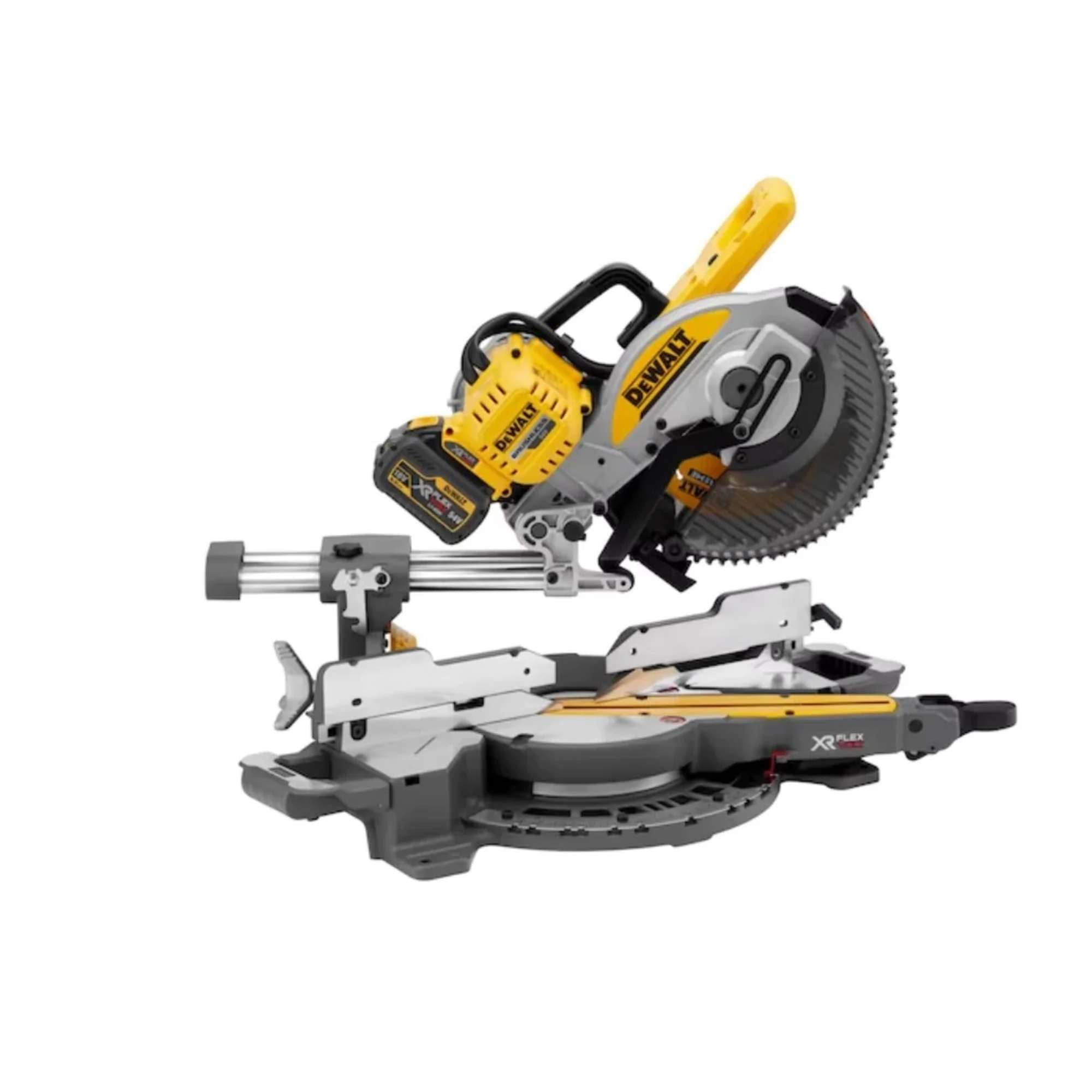

he DCS727 offers the ultimate combination of accuracy, power and wireless freedom. Designed to ensure repeatable accuracy with two horizontal guides and a stainless steel stop plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 54 V brushless motor also offers a maximum cutting capacity of 305 x 77 mm. Other features include wireless tool control to allow automatic dust extraction when starting the stop when used with the DCV586M, the XPS cross cut positioning system for maximum accuracy and visibility without the need for calibration, and machined side handles for portability on the job site.
In addition features
- Innovative groove stop allows adjustment of cutting depth for grooving and rebating applications
- The wide double-edged slide offers maximum support in large material cuts at any angle or combination of angles
- Horizontal 32 mm linear guides with roller bearings offer maximum precision when cutting materials up to 305 mm wide
- XPS Shadow Line Cut indicator provides fast and accurate blade alignment while illuminating the workpiece
- Machined side handles meet the latest IEC table requirements and improve portability and handling while providing a stable base for larger materials
- Intuitive conical clamping with mechanical stops allows easy and accurate setting of tilt angles up to 49° left and right
- Wireless Tool Control allows direct connection to the vac providing greater autonomy and improving efficiency
- AirLock compatible dust extraction improves visibility of the cutting line and provides cleaner, safer job sites
Includes
- (1) Clamp
- (1) DCB118 XR rapid charger
- (2) 6.0Ah FlexVolt batteries
