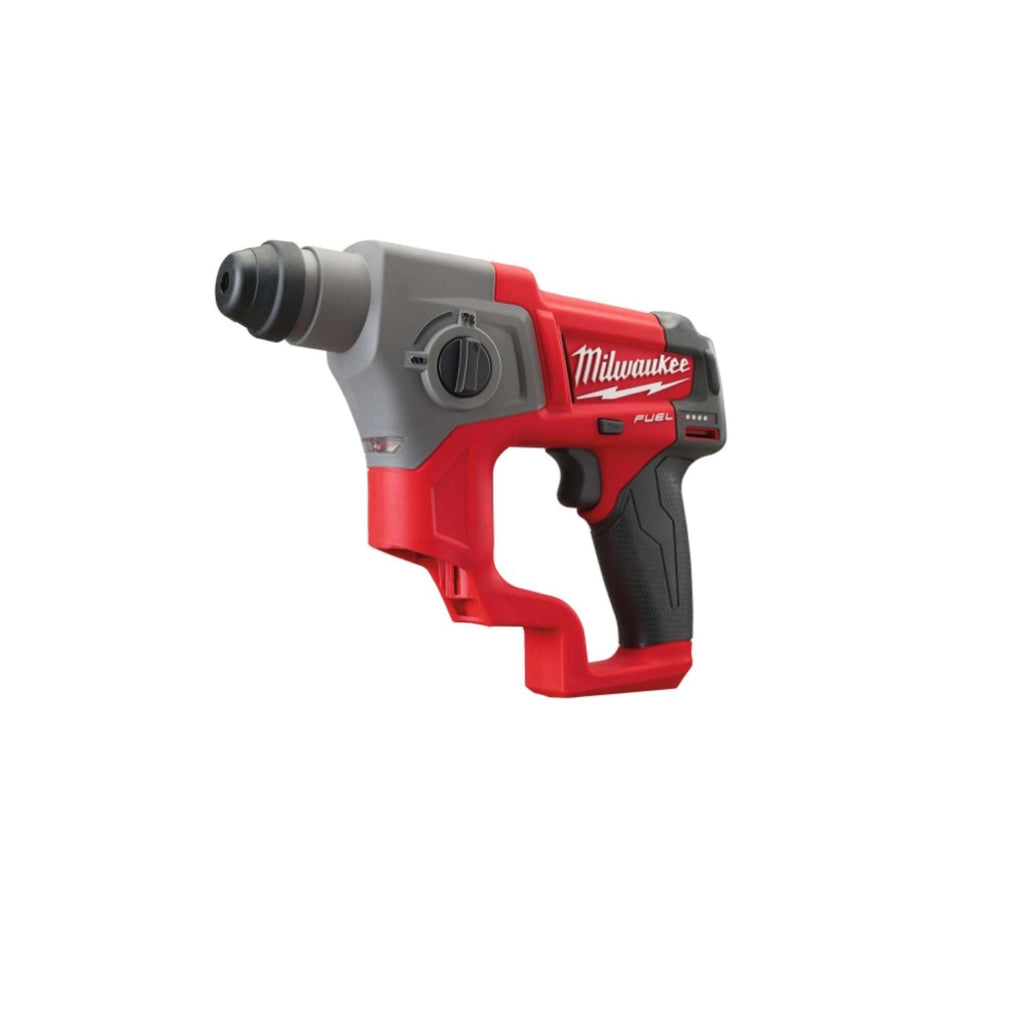

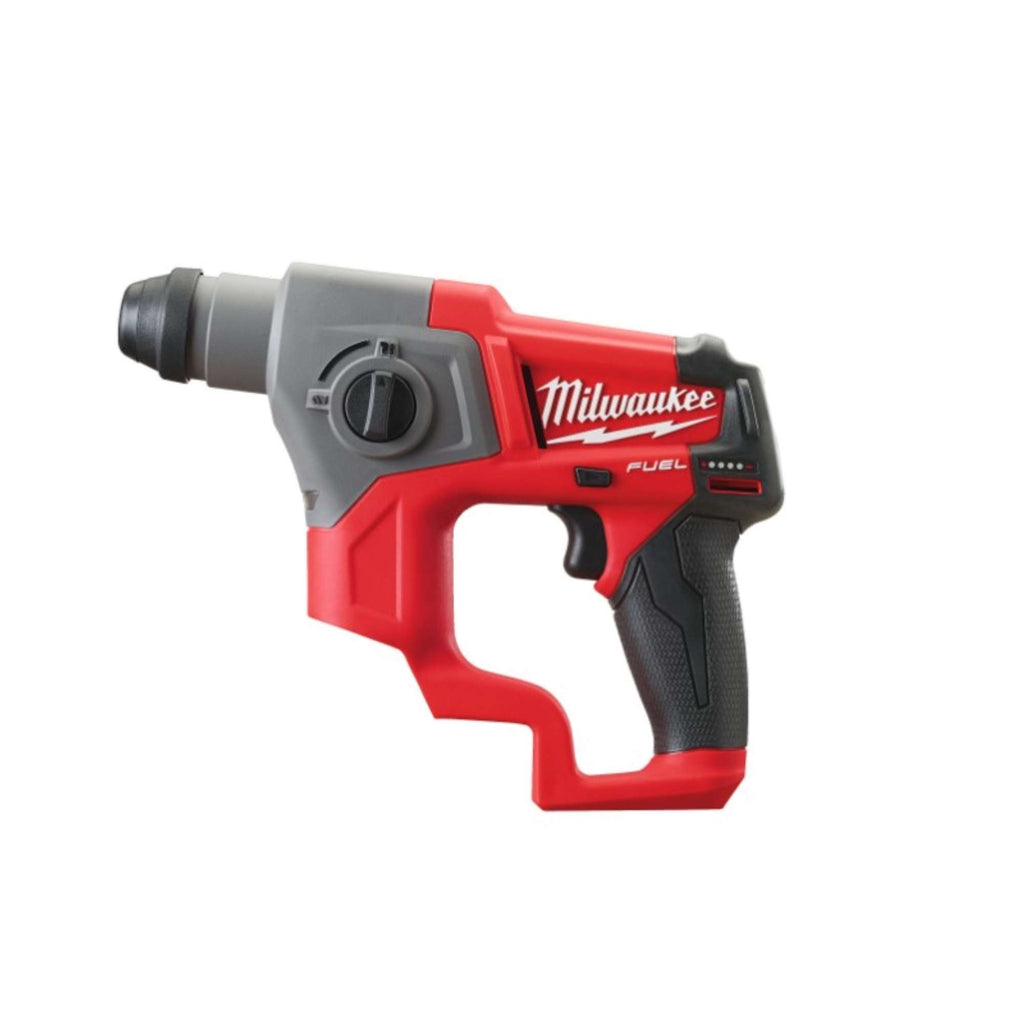

SDS-Plus compact hammer drill M12 12V - Milwaukee 4933441947

M12 CH-0

• Compact 12V brushless hammer drill: stroke energy 1.1 J, up to 6,575 strokes/min and no-load speed 900 rpm
• Minimal vibration: 4.4 m/s², for extended applications
• Capable of drilling more than 60 50 mm x 6 mm holes on a single battery charge
• POWERSTATE™ brushless motor provides performance and durability in compact size
• REDLINK PLUS™ electronics provide enhanced overload protection for tool and battery ensuring longer life in heavy-duty applications
• REDLITHIUM™ battery pack ensures advanced battery pack construction and consistent performance to provide longer range and maximize battery life
• 2 modes: rotation and rotopercussion, for maximum versatility
• Optimized for 6-10 mm drilling (max 13 mm)
• 43 mm collar: compatible with universal M12 UDEL vacuum cleaner
• Compatible with all MILWAUKEE® M12 batteries

Specifications

Supplied without batteries

Supplied without charger

VOLTAGE (V): 12

SHAFT: SDS-Plus

CAP MAX DRILLING WOOD (MM): 13

CAP MAX DRILLING METAL (MM): 10

ENERGY OF BLOW (HEPTA)(J): 1.1

MAX CONCRETE HOLE (MM): 13

OPTIMIZED FOR DRILLING ON CONCRETE (MM): ⌀ 5.5 - 12

PERCUSSION PER MINUTE AT FULL LOAD: 0 - 6575

NO-LOAD SPEED (RPM): 0 - 900

Noisiness

SOUND POWER LEVEL UNCERTAINTY (DB(A)): 3

SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)): 3

SOUND POWER LEVEL (LWA)(DB(A)): 95.5

SOUND PRESSURE LEVEL (LPA)(DB(A)): 84.5

Vibrations

DRILLING VIBRATION UNCERTAINTY (M/S²): 1.5

DRILLING VIBRATIONS (M/S²): 4.4
