Description

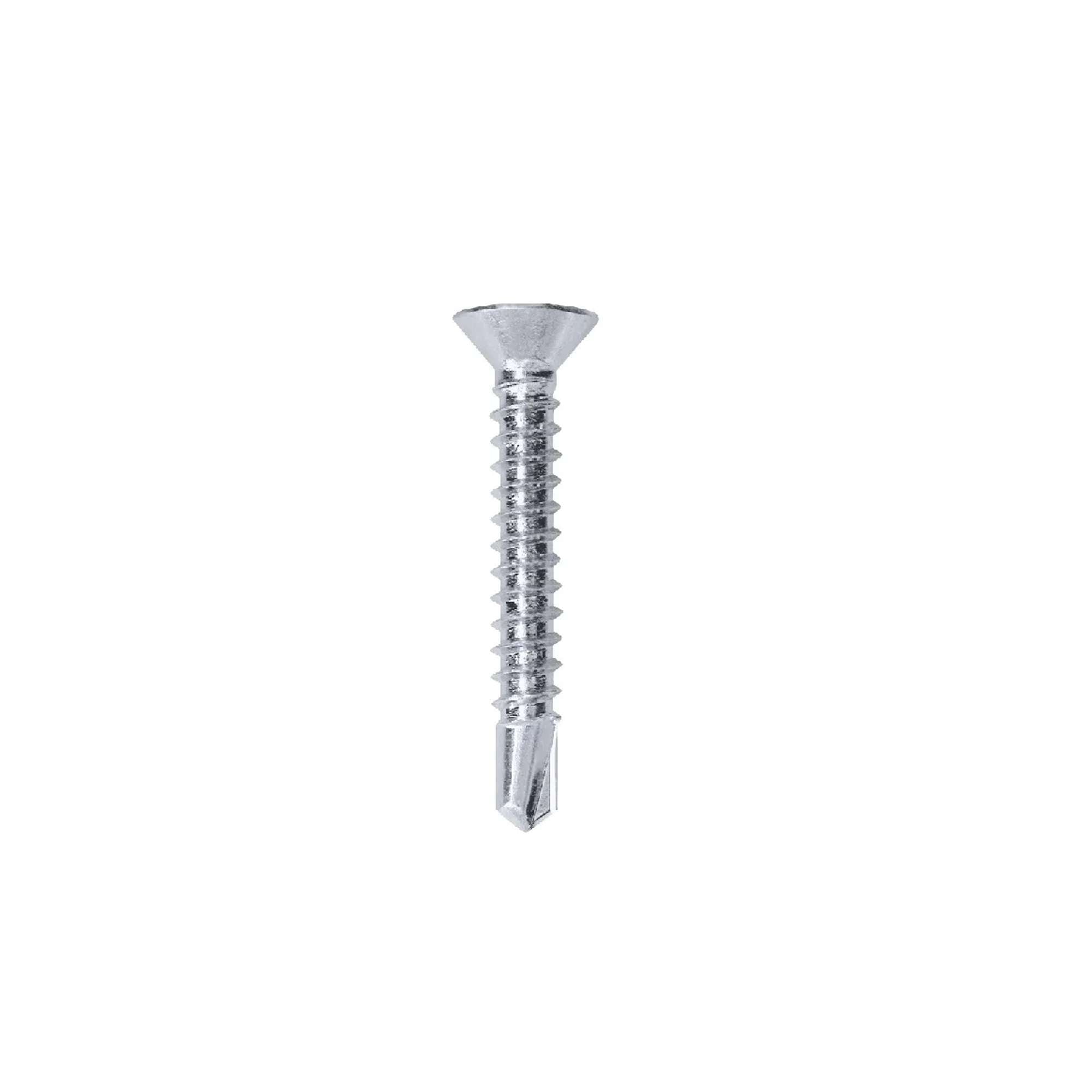

Selfdrilling screw - DIN 7504 P - AP-STEEL TPS
Material: cemented steel
Head: countersunk head
Recess: Philips
Pitch: DIN 7970
Use: metal purlins: 0,7 - 5,25 mm
Drilling speed: 2000 r.p.m
| Cod. | Screw Ø x L | Sheet thickness | Recess | Pkg. |
| 39601b35022 | 3,5x22 | 0,7-2,25 | Philips 2 | 30 |
| 39601b35025 | 3,5x25 | 0,7-2,25 | Philips 2 | 30 |
| 39601b35032 | 3,5x32 | 2 0,7-2,25 | Philips 2 | 30 |
| 39601b35038 | 3,5x38 | 0,7-2,25 | Philips 2 | 30 |
| 39601b42013 | 4,2x13 | 1,75-3 | Philips 2 | 30 |
| 39601b42016 | 4,2x16 | 1,75-3 | Philips 2 | 30 |
| 39601b42019 | 4,2x19 | 1,75-3 | Philips 2 | 30 |
| 39601b42022 | 4,2x22 | 1,75-3 | Philips 2 | 30 |
| 39601b42025 | 4,2x25 | 1,75-3 | Philips 2 | 30 |
| 39601b42032 | 4,2x32 | 1,75-3 | Philips 2 | 30 |
| 39601b42038 | 4,2x38 | 1,75-3 | Philips 2 | 30 |
| 39601b48016 | 4,8x16 | 1,75-4,4 | Philips 2 | 30 |
| 39601b48019 | 4,8x19 | 1,75-4,4 | Philips 2 | 30 |
| 39601b48025 | 4,8x25 | 1,75-4,4 | Philips 2 | 30 |
| 39601b48032 | 4,8x32 | 1,75-4,4 | Philips 2 | 30 |
| 39601b48038 | 4,8x38 | 1,75-4,4 | Philips 2 | 30 |
