Description

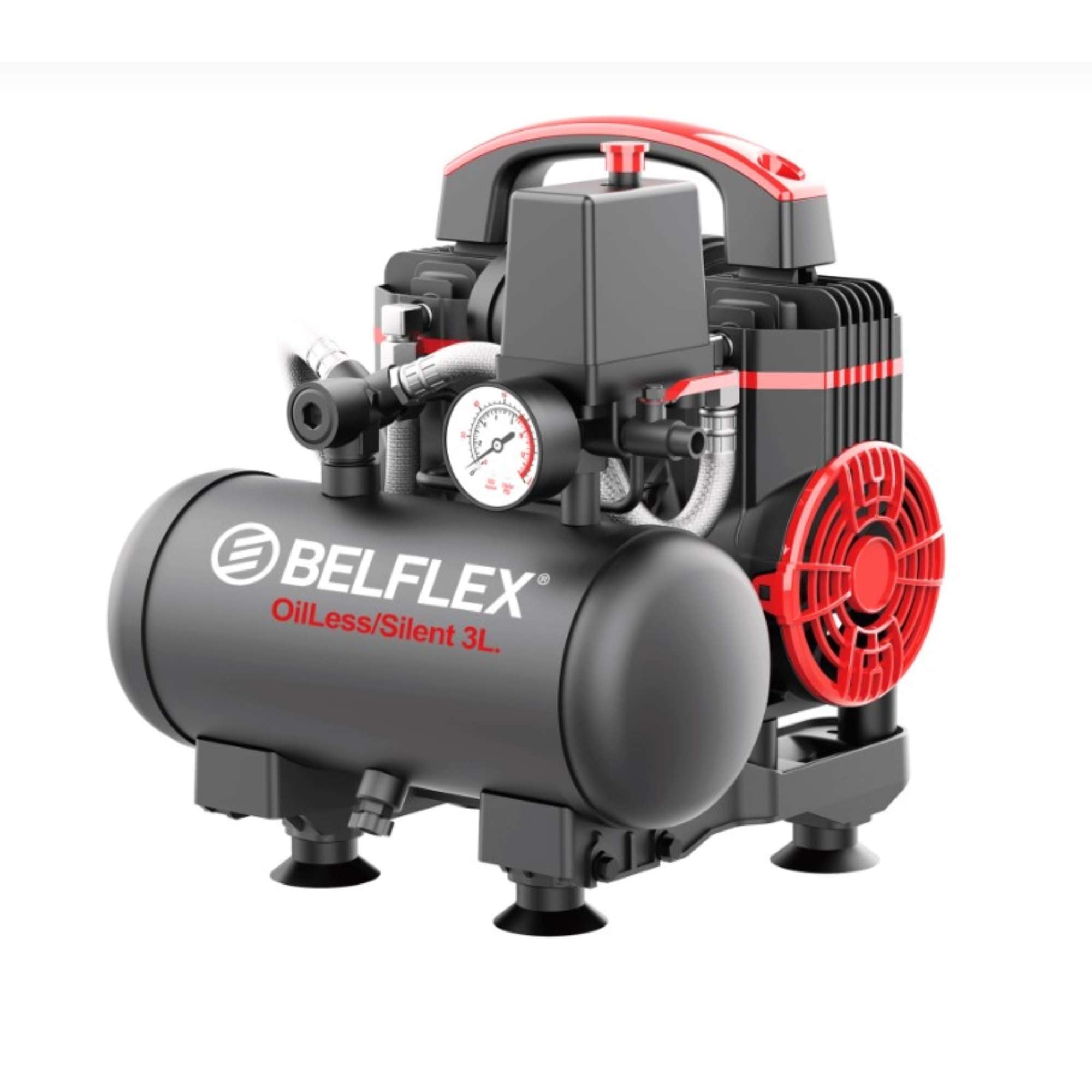

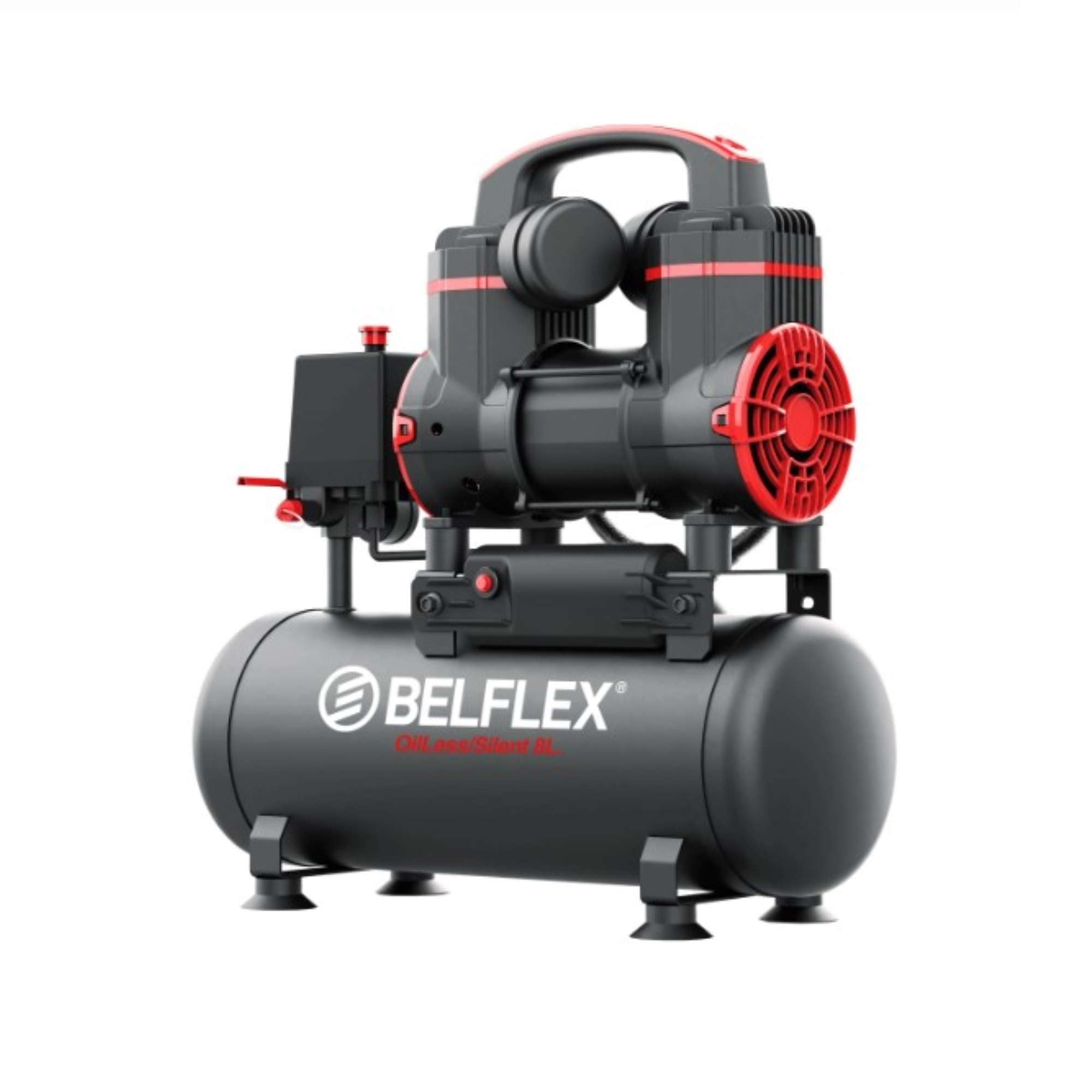

Silenced compressor 8Bar 70dB - Belflex
Features

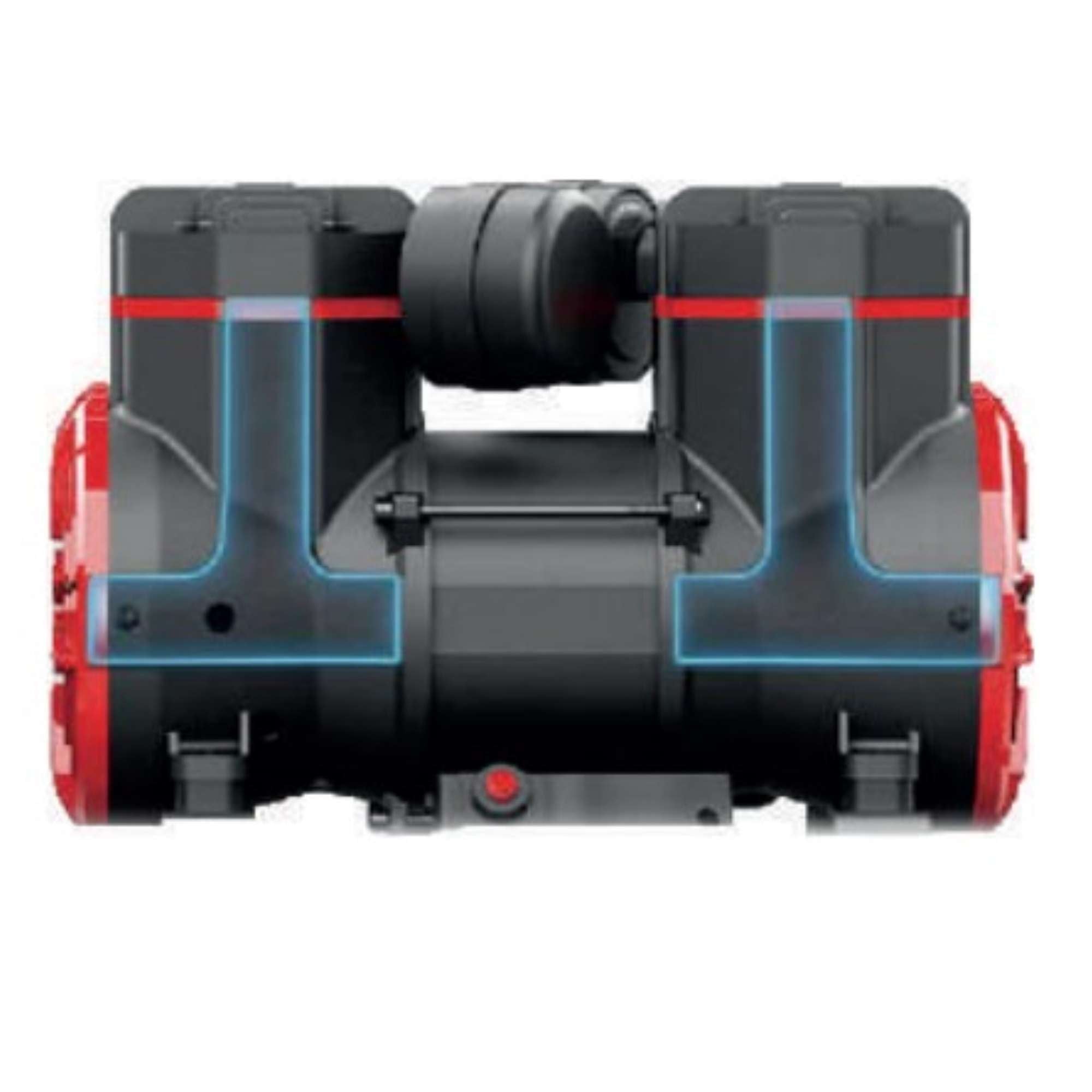

The wide-mouth crankcase and T-shaped armature completely change the rigid shape of the traditional air compressor.

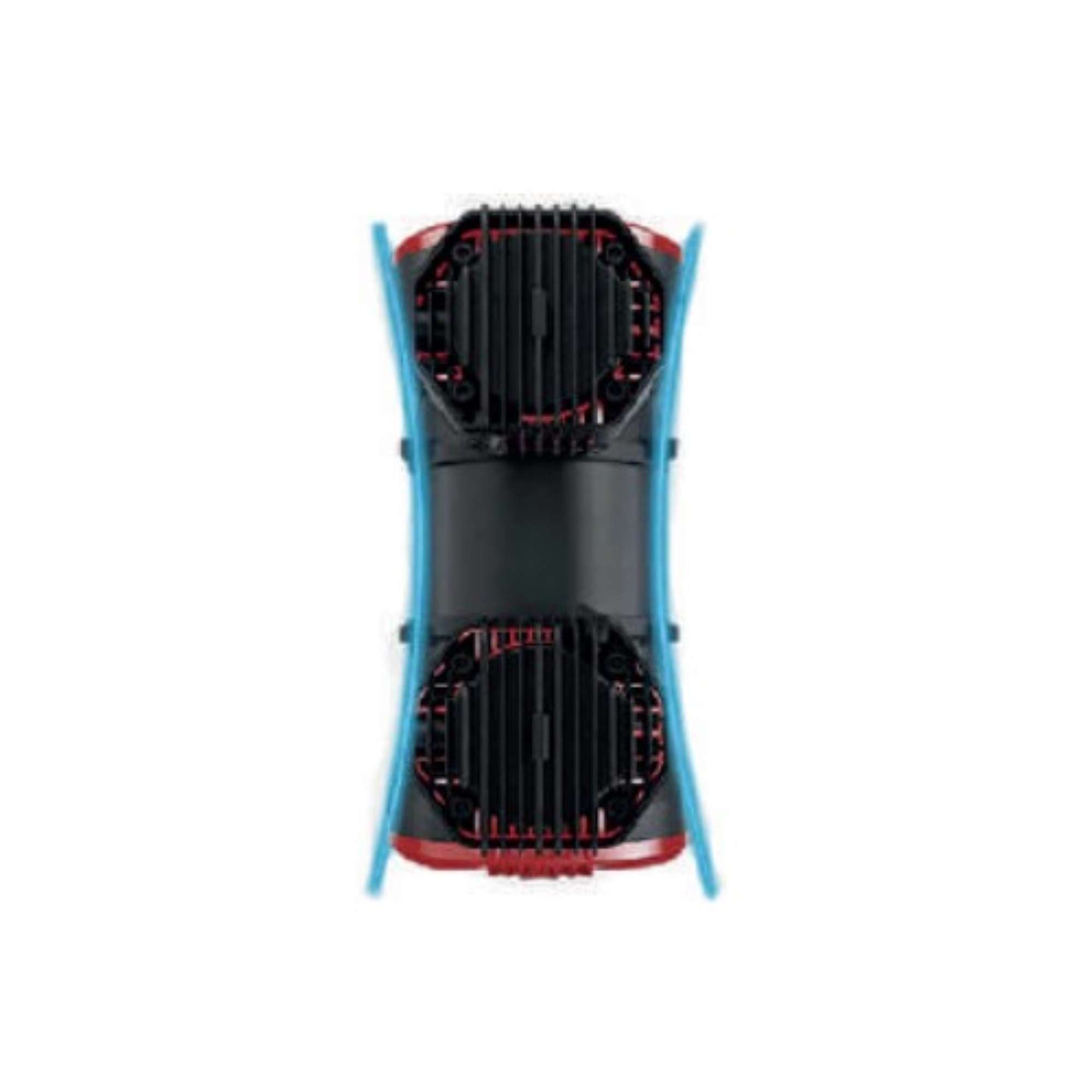

The motor's narrow-life design is elegant and flexible.

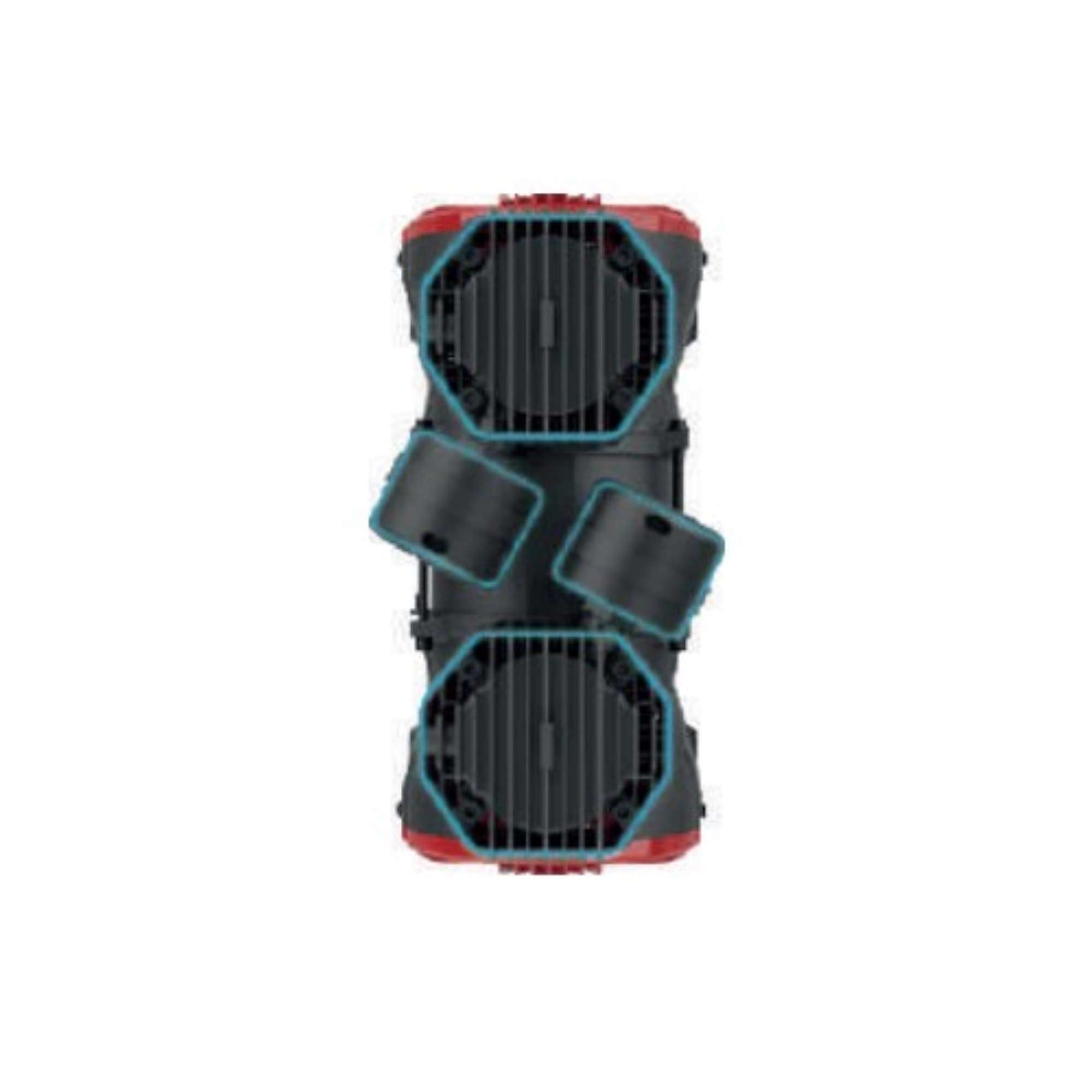

The octagonal cylinder cover and air filter form an 'S' shape. subvert conventional industry design.
Technical Specifications
| CODE | 410000156 | 410000158 |
|---|---|---|
| Power supply | 230 V/F1 | 230 V/F1 |
| Dimensions | 330X280X365 mm. | 460X190X410mm. |
| Net/gross weight | 11/12,80Kg. | 12,7/14,7Kg. |
| Energy | 0,9 - 1,2 Kw-Hp | 0,9 - 1,2 Kw-Hp |
| Maximum pressure Bar. | 8 bar. | 8 bar. |
| Noise level | 70dB. | 70dB. |
| Boiler capacity | 3 litres. | 8 litres. |
| Intake air | 170 lt/min. | 170 lt/min. |
| Revolutions per minute | 2.800 N./min. | 2.800 N./min. |
| Cylinders | 2 n. | 2 n. |
| No. Phases | 1 n. | 1 n. |
Delivery in 10/15 days
