Description

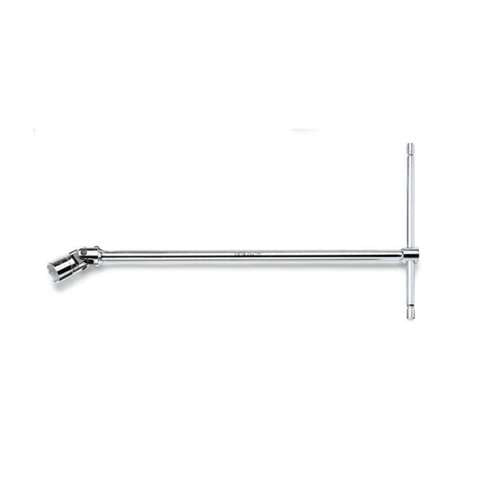

T-handle wrenches with swivelling hexagon sockets
The T-handle wrench Beta 952 is suitable for quick, repeated screwing operations. The articulated joint maintains its function over the years, no adjustment being required.
Features:
• Swivelling mechanism allows socket pre-positioning at an angle of up to 50°
• Reduce tightening effort to 90° in fixed position during use
• Sliding handle can be stopped in required position; a safety catch prevents sliding handle from coming out
• Triple size marking on head
Features:
• Swivelling mechanism allows socket pre-positioning at an angle of up to 50°
• Reduce tightening effort to 90° in fixed position during use
• Sliding handle can be stopped in required position; a safety catch prevents sliding handle from coming out
• Triple size marking on head

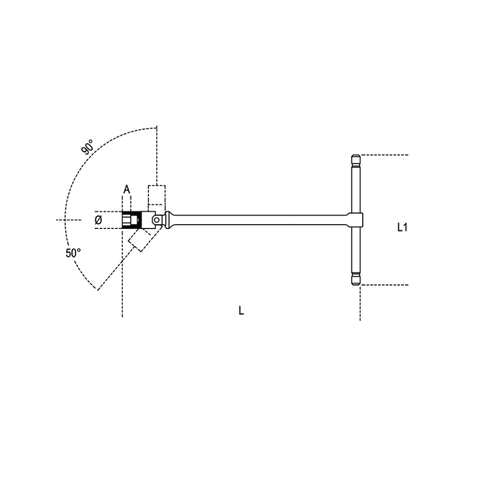

Product name |
Art. |
mm |
Ø mm |
A mm |
L mm |
L1 mm |
g |
|---|---|---|---|---|---|---|---|
| 009520006 | 952 6 | 6 | 9,5 | 5,0 | 395 | 145 | 165 |
| 009520008 | 952 8 | 8 | 12,1 | 6,0 | 395 | 165 | 165 |
| 009520010 | 952 10 | 10 | 14,6 | 8,0 | 400 | 160 | 280 |
| 009520011 | 952 11 | 11 | 15,8 | 8,0 | 400 | 160 | 280 |
| 009520012 | 952 12 | 12 | 17,0 | 9,0 | 400 | 160 | 280 |
| 009520013 | 952 13 | 13 | 18,7 | 10,0 | 432 | 175 | 385 |
| 009520017 | 952 17 | 17 | 23,4 | 12,0 | 450 | 200 | 580 |
| 009520019 | 952 19 | 19 | 26,0 | 13,0 | 500 | 230 | 890 |
