Description

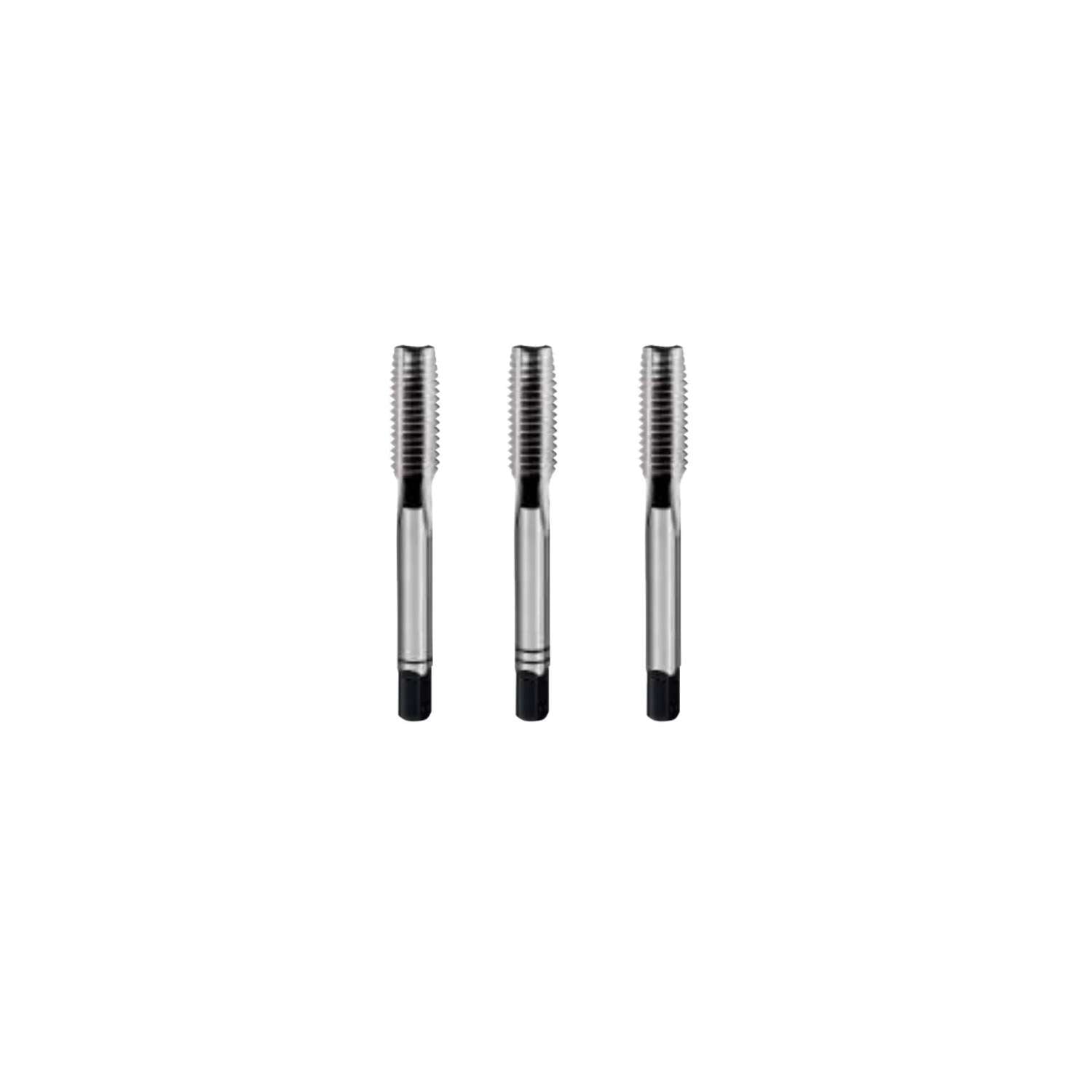

N - GENERIC APPLICATIONS - DIN 352 - CATALOGUE 6615
Material: HSS
male
Notes: Complete series of three males: 6615P,6615S,6615T

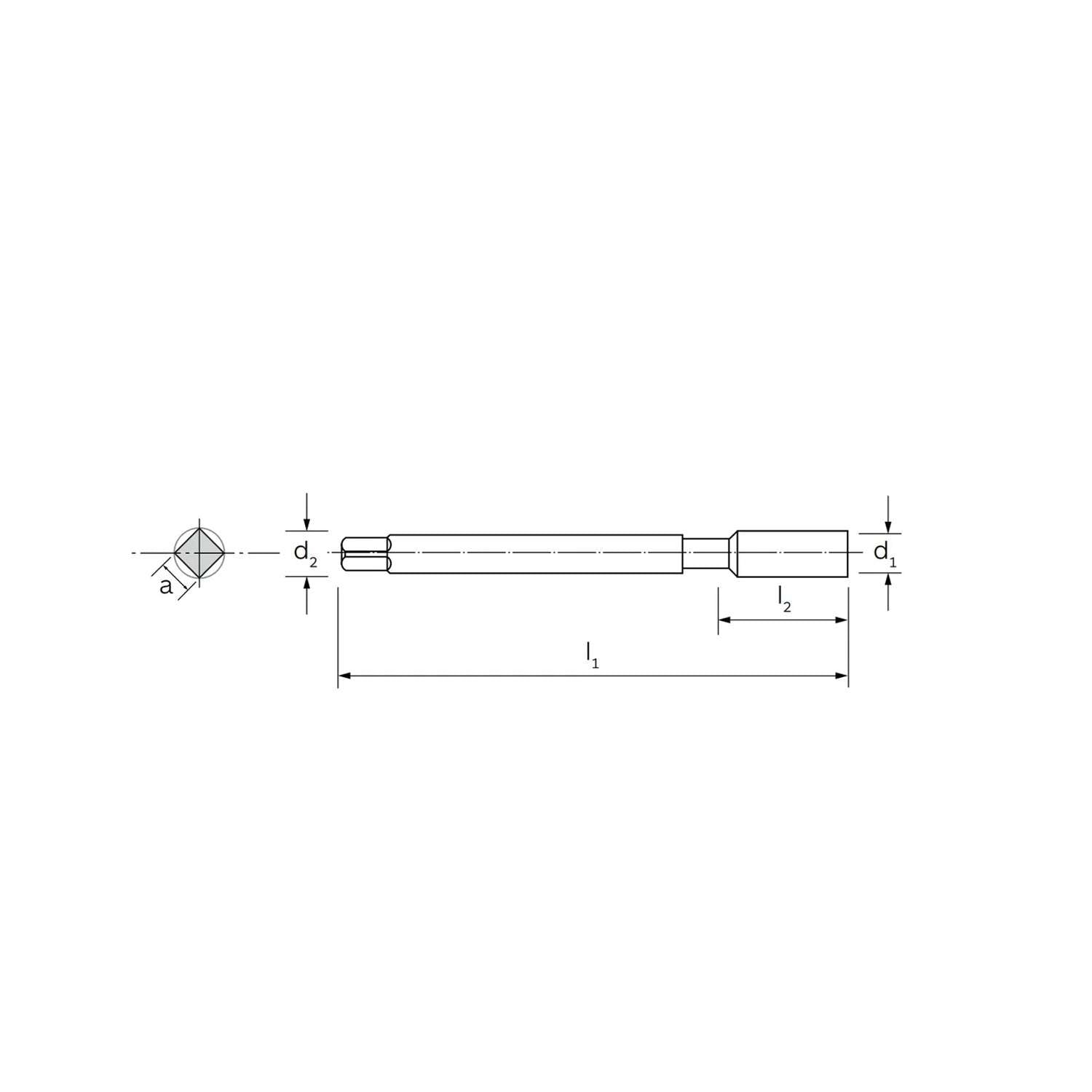

| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 2 | 36th | 8th | 2.8 | 2.1 | 1.6 | 0.4 |
| 2.5 | 40th | 9th | 2.8 | 2.1 | 2.05 | 0.45 |
| 3 | 40th | 11th | 3.5 | 2.7 | 2.5 | 0.5 |
| 3.5 | 45th | 13th | 4 | 3 | 2.9 | 0.6 |
| 4 | 45th | 13th | 4.5 | 3.4 | 3.3 | 0.7 |
| 4.5 am | 50th | 16th | 6 | 4.9 | 3.7 | 0.75 |
| 5 | 50th | 16th | 6 | 4.9 | 4.2 | 0.8 |
| 6 | 50th | 19th | 6 | 4.9 | 5 | 1 |
| 7 | 50th | 19th | 6 | 4.9 | 6 | 1 |
| 9th | 63rd | 22nd | 7 | 5.5 | 7.8 am | 1.25am |
| 10th | 70th | 24th | 7 | 6.2 | 8.5am | 1.5 |
| 14th | 80th | 30th | 11th | 9th | 12th | 2 |
| 16th | 80th | 32nd | 12th | 9th | 14th | 2 |
| 18th | 95th | 40th | 14th | 11th | 3.5 pm | 2.5 |
| 22nd | 100 | 40th | 18th | 14.5 pm | 7.5 pm | 2.5 |
| 24th | 110th | 50th | 18th | 14.5 pm | 21st | 3 |
| 60th | 200 | 85th | 45th | 35th | 54.5 am | 5.5 |
