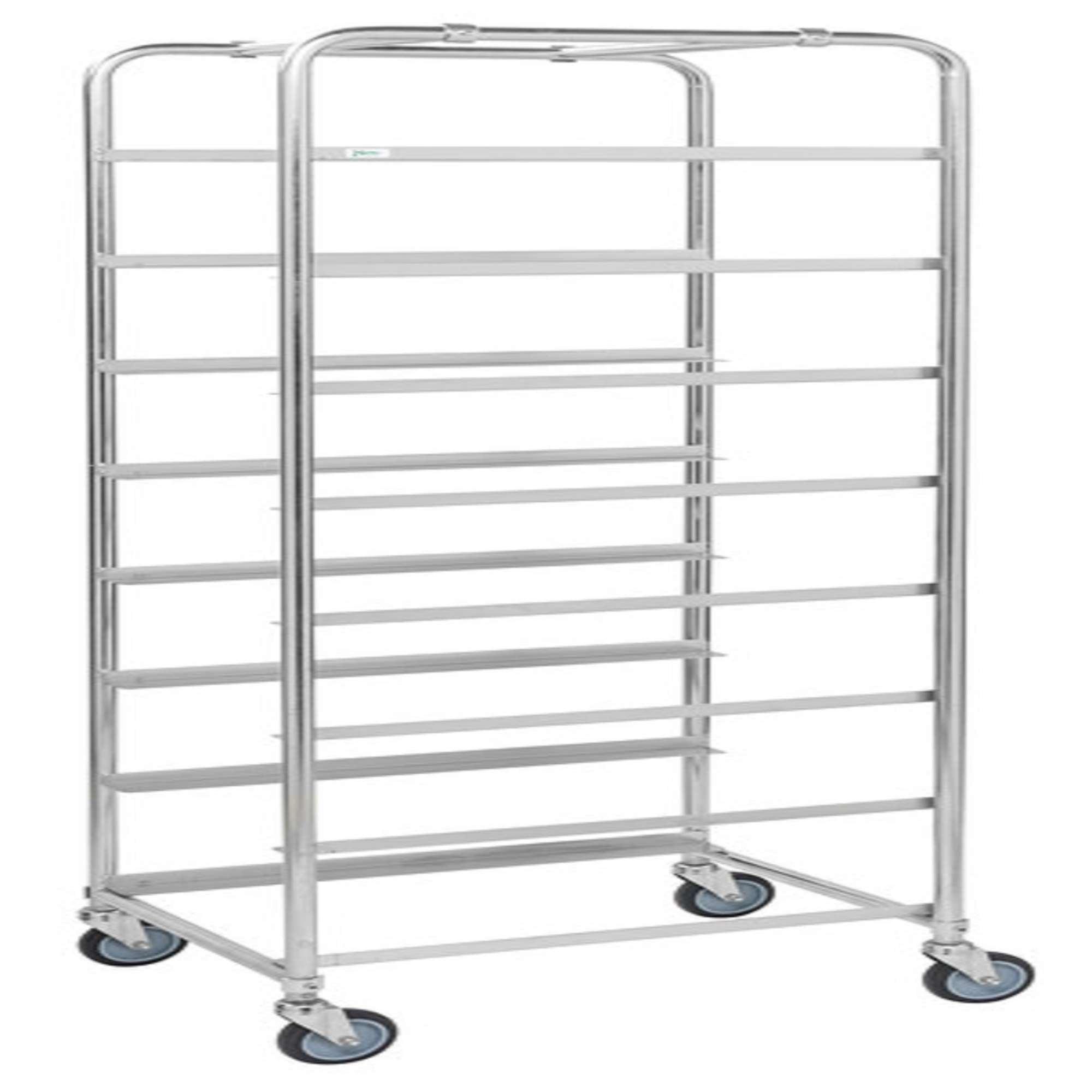

KM164B § BIN TROLLEY

Bin trolley suited for 8 EUR bins with the maximal height of 210mm

Electro galvanised with 25mm steel pipe
Distance between rails
Suited for trays 600x400mm
For 8 bins
4 swivel wheels 100 mm
Capacitet 150 kg

• Carton Dimensions - 640x1780x120mm
• Length - 460 mm
• Width - 590 mm
• Height - 1880 mm
• Static load - 150 kg
• Freight volume - 0.14 m3
• Gross weight - 22 kg
• Net weight - 20.5 kg
• Number of shelves - 8
• Shelf capacity - 18 kg
• Distance between shelves - 210 mm
• Type of castors - 4 swivel 2 with brake
• Castors diameter (mm) - 100
