Description

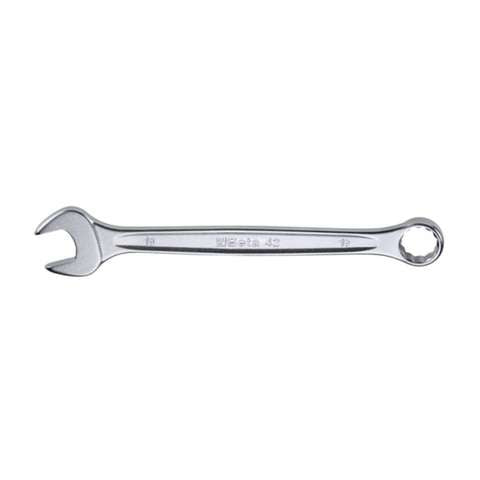

Combination wrenches, open and offset ring ends, chrome-plated
Stylish slim combination wrench, enhanced by a slender profile and lighter to the touch.
Features:
• Head thickness reduced to a minimum, to allow access to all spaces.
• Torque values more than doubled compared to the requirements to be satisfied under ISO 1711
• Improved ergonomics translating into increased force transmission
Features:
• Head thickness reduced to a minimum, to allow access to all spaces.
• Torque values more than doubled compared to the requirements to be satisfied under ISO 1711
• Improved ergonomics translating into increased force transmission

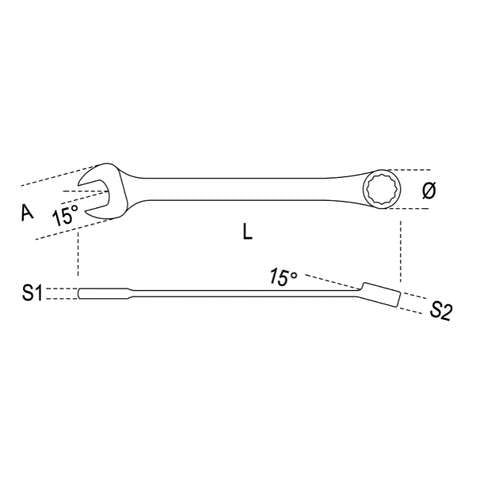

Product Name |
Art. |
mm |
L mm |
A mm |
Ø mm |
S1 mm |
S2 mm |
g |
|---|---|---|---|---|---|---|---|---|
| 000421005 | 42 5,5 | 5,5x5,5 | 95 | 15,4 | 10,4 | 3,4 | 5,3 | 13 |
| 000421006 | 42 6 | 6x6 | 95 | 15,4 | 10,4 | 3,4 | 5,3 | 13 |
| 000421007 | 42 7 | 7x7 | 105 | 17,3 | 11,1 | 3,6 | 5,8 | 16 |
| 000421008 | 42 8 | 8x8 | 116 | 19,2 | 12,6 | 3,9 | 6,4 | 21 |
| 000421009 | 42 9 | 9x9 | 127 | 21,2 | 14,1 | 4,2 | 6,9 | 27 |
| 000421010 | 42 10 | 10x10 | 137 | 23,1 | 15,4 | 4,5 | 7,3 | 34 |
| 000421011 | 42 11 | 11x11 | 148 | 25,1 | 16,8 | 4,8 | 7,7 | 43 |
| 000421012 | 42 12 | 12x12 | 158 | 27,3 | 18,2 | 5,1 | 8,1 | 52 |
| 000421013 | 42 13 | 13x13 | 169 | 29,1 | 19,6 | 5,6 | 8,8 | 64 |
| 000421014 | 42 14 | 14x14 | 180 | 31,2 | 21,0 | 5,7 | 9,0 | 76 |
| 000421015 | 42 15 | 15x15 | 190 | 33,1 | 22,4 | 6,0 | 9,4 | 88 |
| 000421016 | 42 16 | 16x16 | 201 | 35,0 | 23,8 | 6,3 | 10,0 | 104 |
| 000421017 | 42 17 | 17x17 | 212 | 36,8 | 25,2 | 6,8 | 10,5 | 125 |
| 000421018 | 42 18 | 18x18 | 222 | 39,0 | 26,7 | 7,0 | 11,1 | 139 |
| 000421020 | 42 20 | 20x20 | 243 | 43,0 | 29,4 | 7,7 | 12,3 | 185 |
| 000421021 | 42 21 | 21x21 | 254 | 45,0 | 30,7 | 7,9 | 12,7 | 204 |
| 000421022 | 42 22 | 22x22 | 264 | 47,0 | 32,2 | 8,3 | 13,2 | 226 |
| 000421024 | 42 24 | 24x24 | 285 | 50,9 | 34,9 | 8,7 | 14,0 | 277 |
| 000421025 | 42 25 | 25x25 | 296 | 52,6 | 36,2 | 8,7 | 14,2 | 307 |
| 000421026 | 42 26 | 26x26 | 307 | 55,0 | 37,6 | 8,9 | 14,6 | 339 |
| 000421028 | 42 28 | 28x28 | 328 | 58,9 | 40,3 | 9,3 | 15,4 | 405 |
| 000421029 | 42 29 | 29x29 | 338 | 60,9 | 41,9 | 9,5 | 15,7 | 445 |
