Description

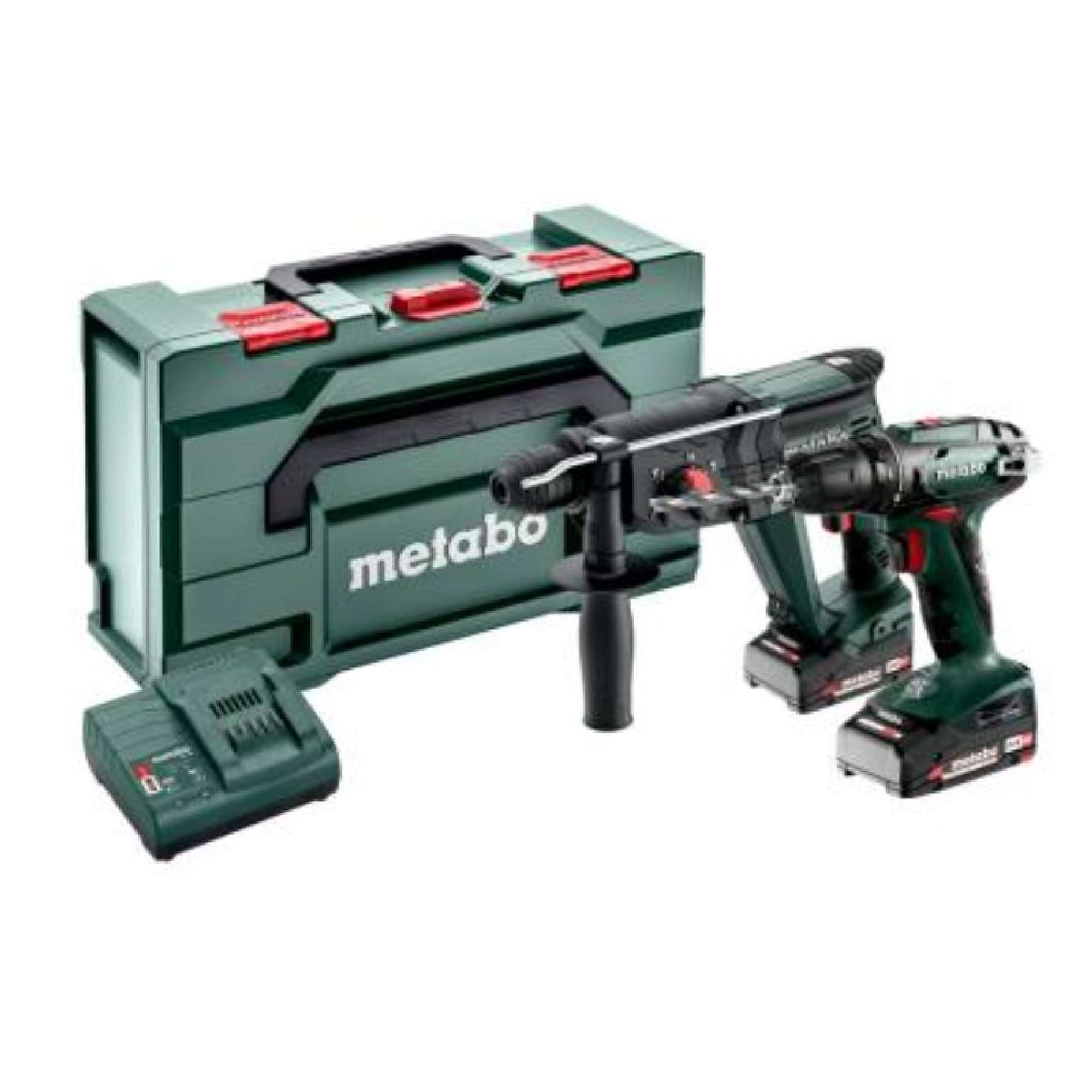

Combo Kit 2.3.2 - Metabo
Features
Cordless drill-driver BS 18: lightweight and compact drill-driver with an especially short shape for versatile uses
Cordless combination hammer KH 18 LTX 24: combination hammer with 3 functions: hammer drilling, drilling and chiseling
Cordless combi hammer KHA 18 LTX: percussion stop device for hammerless drilling and screwdriving
Roto-stop device for chiseling
Metabo S-automatic safety clutch: mechanical transmission release when bit locks for safe working
Batteries with remaining range indicator
Ultra-M technology for maximum performance, safe charging, optimal energy utilization and high longevity
3-year battery warranty thanks to Ultra-M technology

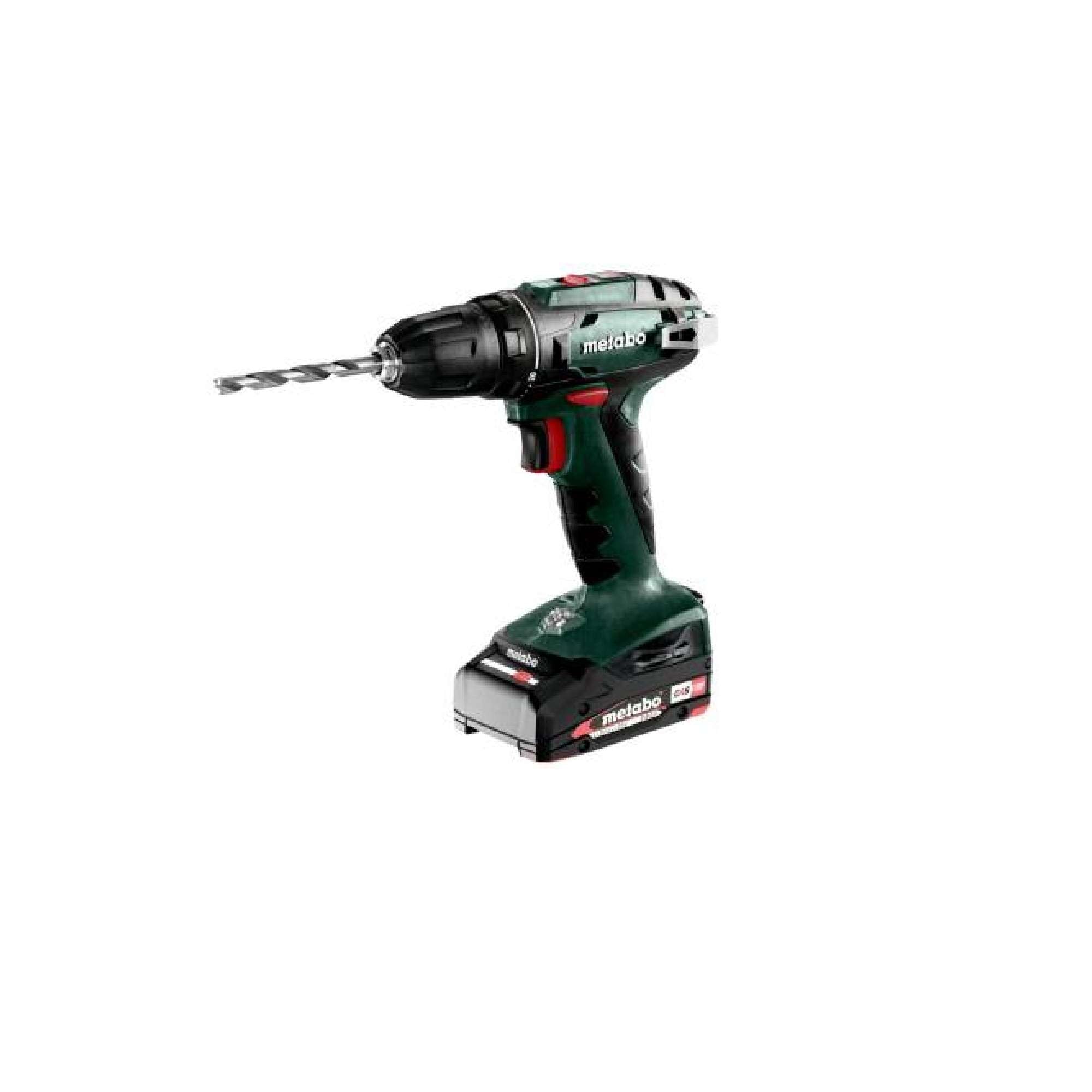

Technical data BS 18 (602207560) Cordless drill-driver
Battery type: LiPOWER
Battery voltage: 18 V
Battery capacity: 2 x 2 Ah
Max. torque (soft screwdriver): 24 Nm
Max. torque (hard screwdriver): 48 Nm
Adjustable torque: 0.5 - 4.5 Nm
Steel drilling Ø: 10 mm
Soft wood drilling Ø: 20 mm
No. no load rpm: 0 - 450 / 0 - 1600 /min
Spindle opening: 1 - 10 mm
Weight without battery: 0.92 kg
Weight with battery: 1.3 kg

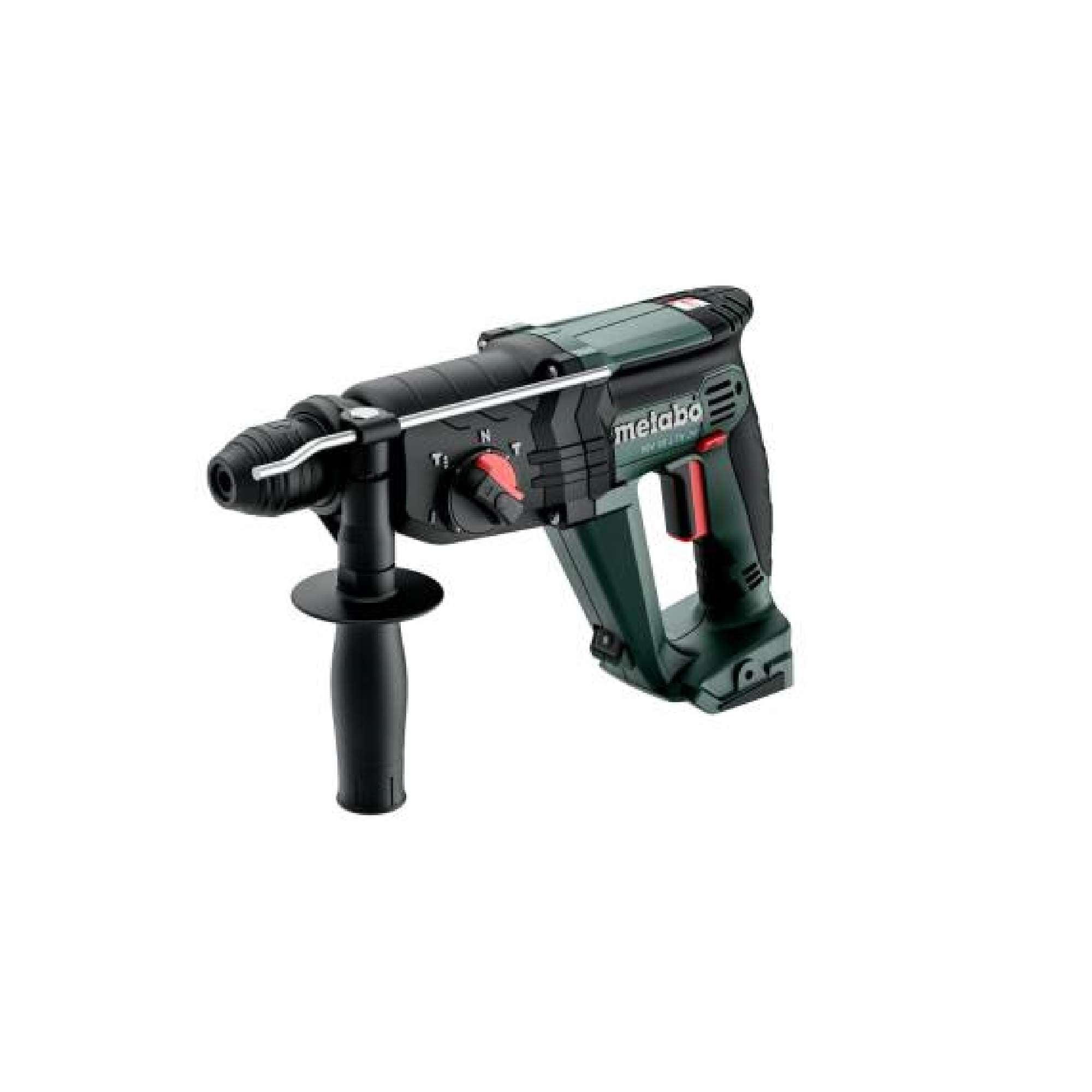

Technical data KH 18 LTX 24 (601712850) Cordless combination hammer
Battery voltage: 18 V
Max. single stroke energy (EPTA): 2.1 J
Max. number of strikes: 5200 /min
Concrete drilling Ø with hammer drills: 24 mm
Masonry drilling Ø with core bits: 68 mm
Steel drilling Ø: 13 mm
Ø soft wood drilling: 30 mm
Max. no-load rpm: 0 - 1400 /min
Tool attachment: SDS-plus
Weight without battery: 2.6 kg
Vibration KH 18 LTX 24 (601712850) Cordless combination hammer
Concrete hammer drilling: 11.5 m/s²
Insecure K-measurement: 1.5 m/s²
Chiseling: 7.8 m/s²
Measurement uncertainty K: 1.5 m/s²
Noise emission BS 18 (602207560) Cordless drill-driver
Sound pressure level: 70 dB(A)
Sound power level (LwA): 81 dB(A)
Measurement insecurity K: 3 dB(A)
Acoustic emission KH 18 LTX 24 (601712850) Battery-operated combination hammer
Sound pressure level: 91 dB(A)
Sound power level (LwA): 98 dB(A)
Measurement insecurity K: 3 dB(A)
