Description

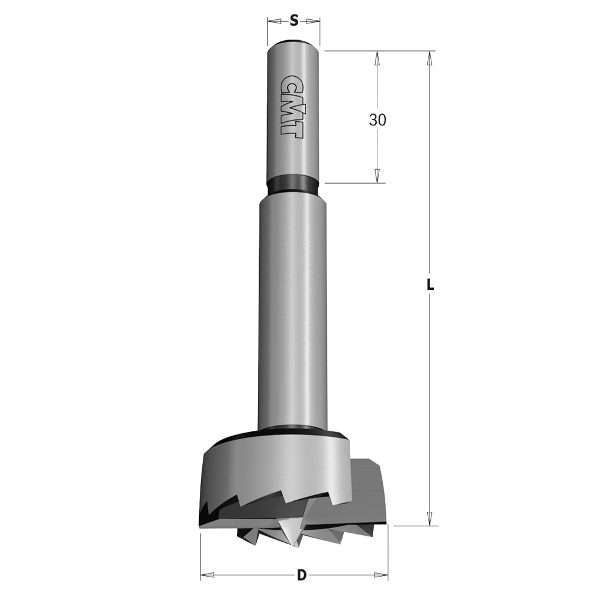

Cylindrical-attached drill bit, two cutting edges - CMT Forstner 537
SERRATED AND STANDARD CUTTING EDGE:
A standard cutting edge provides better guidance but has a tendency to overheat.
To overcome the heat problem, larger diameters (>=Ø25mm) are precisely designed with serrated cutting edge.
TECHNICAL FEATURES:
A standard cutting edge provides better guidance but has a tendency to overheat.
To overcome the heat problem, larger diameters (>=Ø25mm) are precisely designed with serrated cutting edge.
TECHNICAL FEATURES:
- High resistance of cutting edges to wear
- SP steel
- Centering tip
- 2 cutting edges [Z2]
- 2 engravers [V2]
Drilling precise, square and well-smoothed holes in soft woods of all sizes. Drilling at any angle to create ovals or arched openings. Making recesses for fixing rails or supports.
| Code | D | L | S |
|---|---|---|---|
| 537.160.31 | 16 mm | 90 mm | 8x30 mm |
| 537.180.31 | 18 mm | 90 mm | 8x30 mm |
| 537.220.31 | 22 mm | 90 mm | 8x30 mm |
| 537.240.31 | 24 mm | 90 mm | 8x30 mm |
| 537.260.31 | 26 mm | 90 mm | 8x30 mm |
| 537.280.31 | 28 mm | 90 mm | 8x30 mm |
| 537.330.31 | 30 mm | 90 mm | 8x30 mm |
| 537.350.31 | 35 mm | 90 mm | 10x30 mm |
| 537.400.31 | 40 mm | 90 mm | 10x30 mm |
