Description

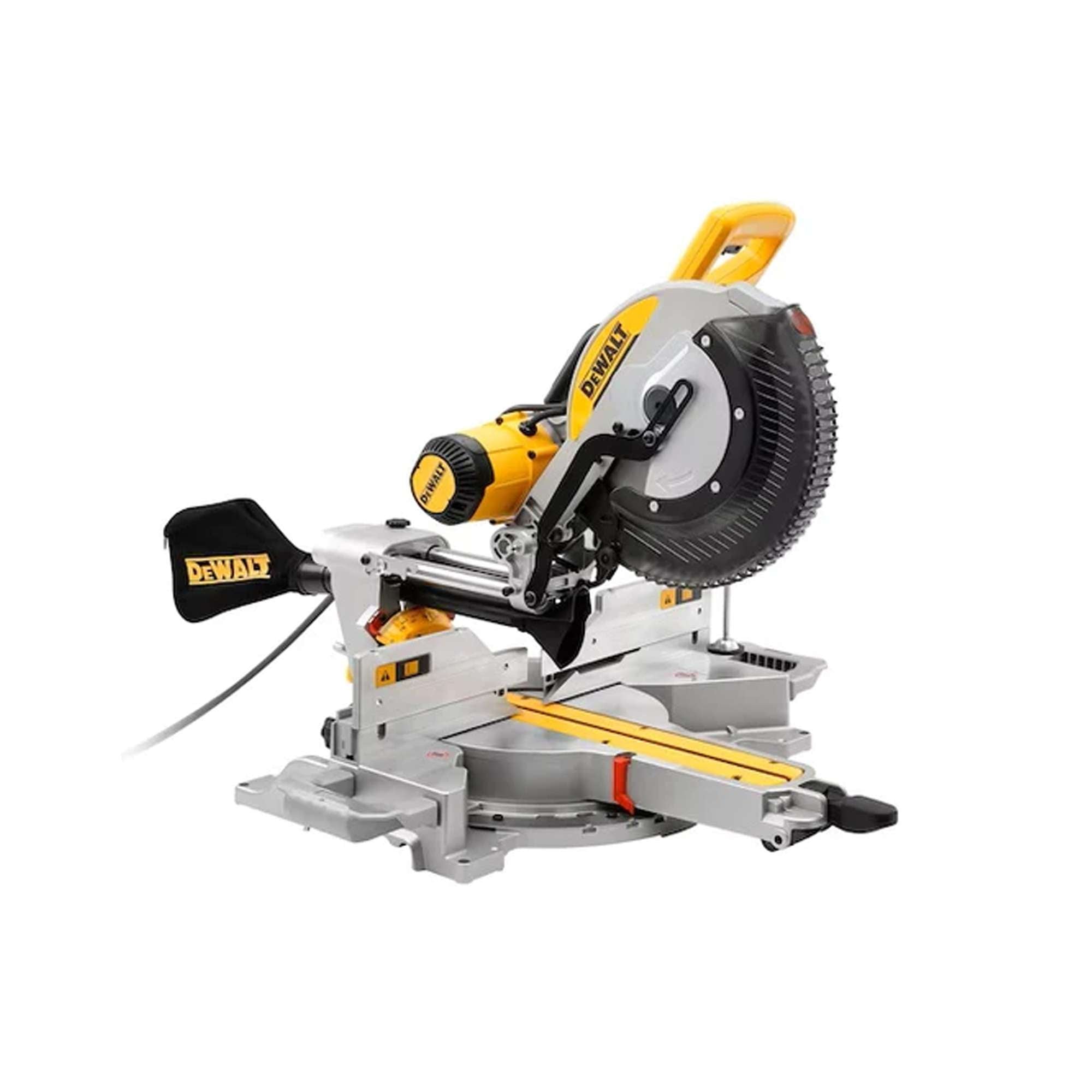

Radial cut-off machine 305mm + XPS plotting system
Electronic speed control ideal for cutting non-ferrous materials.
High cutting capacity up to 110x303 mm.
High durability of the machine thanks to the quality of the material and the possibility of setting the various components of the machine for maximum precision.
Additional features
High precision of the machine thanks to the new design of the work table and guideways.
Easy-to-use table angle and head lowering systems.
Quick angle adjustment and locking (0-50° left, 0-60° right) thanks to a convenient cam device.
The design makes the machine extremely compact and easy to transport, despite the large cutting capacity.
XPS tracking system that projects the blade shadow directly onto the workpiece, enabling faster and more precise cuts. No set-up required.
New 49° right/left head tilting system with predefined notches and practical locking device in intermediate positions.
Depth stop for making cut-outs of a constant size for bending material, or for making cut-outs to size.
The double horizontal guide with bushings gives the arm a high rigidity that allows machining with maximum precision at all times.
Very efficient suction system for working in a safer environment.
High, extendable rear stop for maximum support of the material to be cut.
Includes
(1) Dust bag
(1) Service spanner
(1) 60-teeth blade
(1) Clamp
Specifications
Blade hole
30 mm
Blade speed
1900-3800 rpm
Max. Cutting capacity (45°/45°)
212 x 76 mm
Max. Cutting depth
170 mm
Beveling capacity
49/49 deg
Possible mitre angles
60/50
Max. Cutting capacity (90°/90°)
303 x 110 mm
Application
Wood Cutting\n Tile Cutting
Product height
396 mm Product height
Product weight
24.8 kg
Max. Cutting capacity (45°/90°)
211 x 112 mm
Power output
960 W
Blade diameter
305 mm Blade diameter
Uncertainty K1 (Vibration)
2
Power source
Wire
