Description

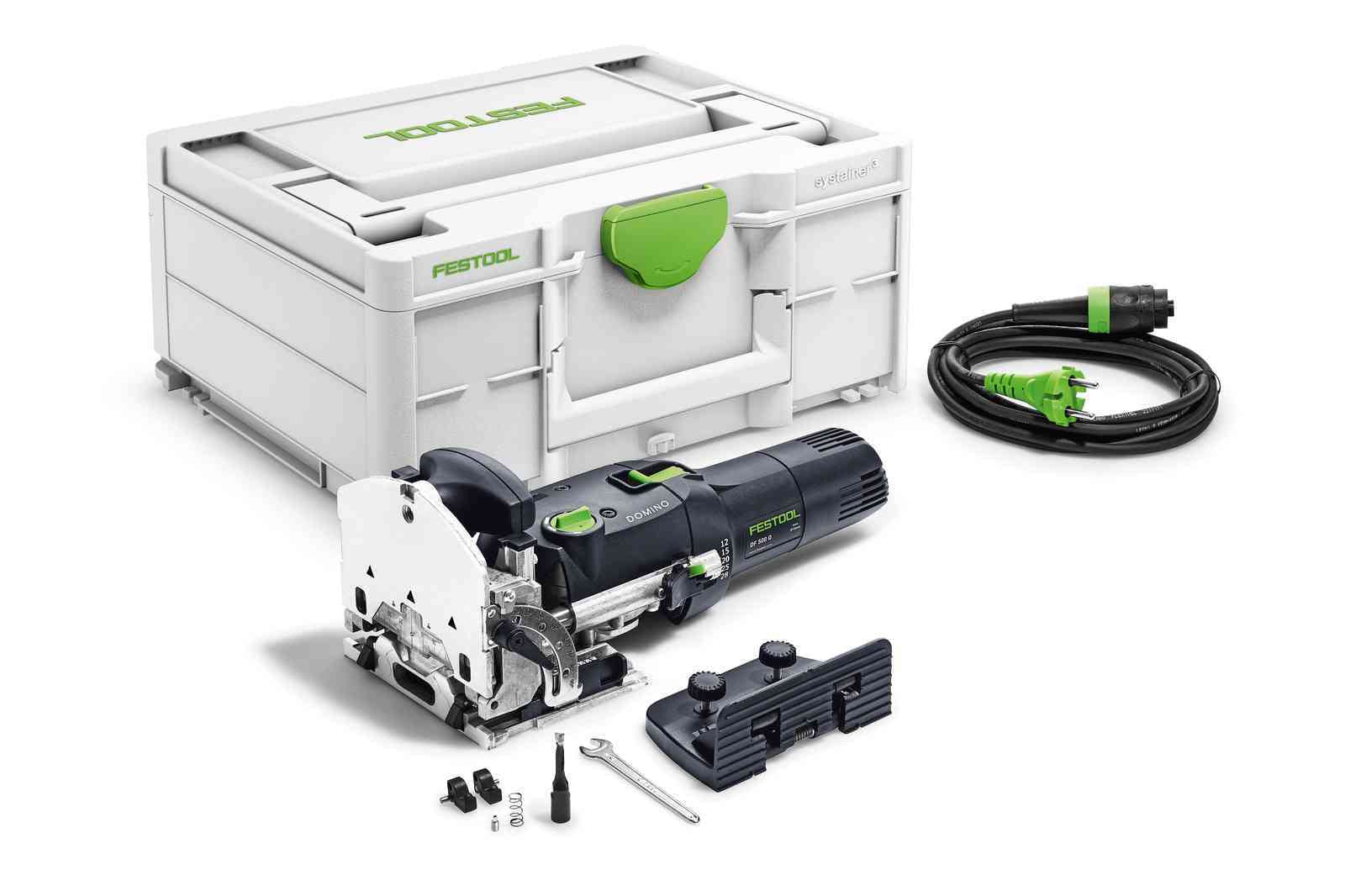

DOMINO DF 500 Q-Plus jointing milling machine - Festool
Oval shape, larger bonding surface, greater stability. The DOMINO jointing system combines the precision of a round dowel with the flexibility of the traditional flat dowel - the perfect solution for joining panels. The system consists of the DF 500 jointing machine, DOMINO dowels in different sizes and versatile accessories for special applications. The result: extremely stable and invisible joints. But DOMINO can do even better: frame joints, drawer joints, etc.
- Versatile use with dowel sizes from 4x20 mm to 10x50 mm
- Unique, patented milling principle for hand tools that guarantees precise, backlash-free machining
- Quickly and easily adjustable countersinks for precise results
- Ergonomic shape for easy work in any position
- Maximum stability and torsion resistance of DOMINO dowel joints
- System accessories suitable for both DOMINO dowel routers
Main applications
- Furniture construction
- Shop fittings/interior fittings
- Window construction
- Trade fair construction
- For panel joints
- For frame joints
Technical Data
Power: 420 W
No load rpm: 25 500 min-¹
Cutter depth: 12, 15, 20, 25, 28 mm
Max. milling depth: 28.00 mm
DOMINO cutter Ø: 4, 5, 6, 8, 10 mm
Milling cutter height adjustment: 5 - 30 mm
Swivel milling: 0 - 90°
Dust extraction connection Ø: 27 mm
Electrical cable length: 4.00 m
Drive type: Mains
Product weight without accessories: 3.50 kg
No load rpm: 25 500 min-¹
Cutter depth: 12, 15, 20, 25, 28 mm
Max. milling depth: 28.00 mm
DOMINO cutter Ø: 4, 5, 6, 8, 10 mm
Milling cutter height adjustment: 5 - 30 mm
Swivel milling: 0 - 90°
Dust extraction connection Ø: 27 mm
Electrical cable length: 4.00 m
Drive type: Mains
Product weight without accessories: 3.50 kg
Antistatic function
vacuum cleaners and tools with antistatic function to eliminate shocks during work
plug it
removable and interchangeable electric cable with safety connection for quick connection
CLEANTEC
Integrated bayonet lock as a connecting element between aspirator and tool.
NOISE
Milling: Uncertainty (vibration) K: 1.50 m/s²
Milling: Uncertainty (noise) K: 3.00 dB
Milling: Mean total vibration value ah: 3.00 m/s²
Mill: Standard series EN: 60745-2-19
Milling: Sound pressure level LpA type A: 84.00 dB(A)
Milling: Sound power level LWA type A: 95.00 dB(A)
Milling: Uncertainty (noise) K: 3.00 dB
Milling: Mean total vibration value ah: 3.00 m/s²
Mill: Standard series EN: 60745-2-19
Milling: Sound pressure level LpA type A: 84.00 dB(A)
Milling: Sound power level LWA type A: 95.00 dB(A)
