Description

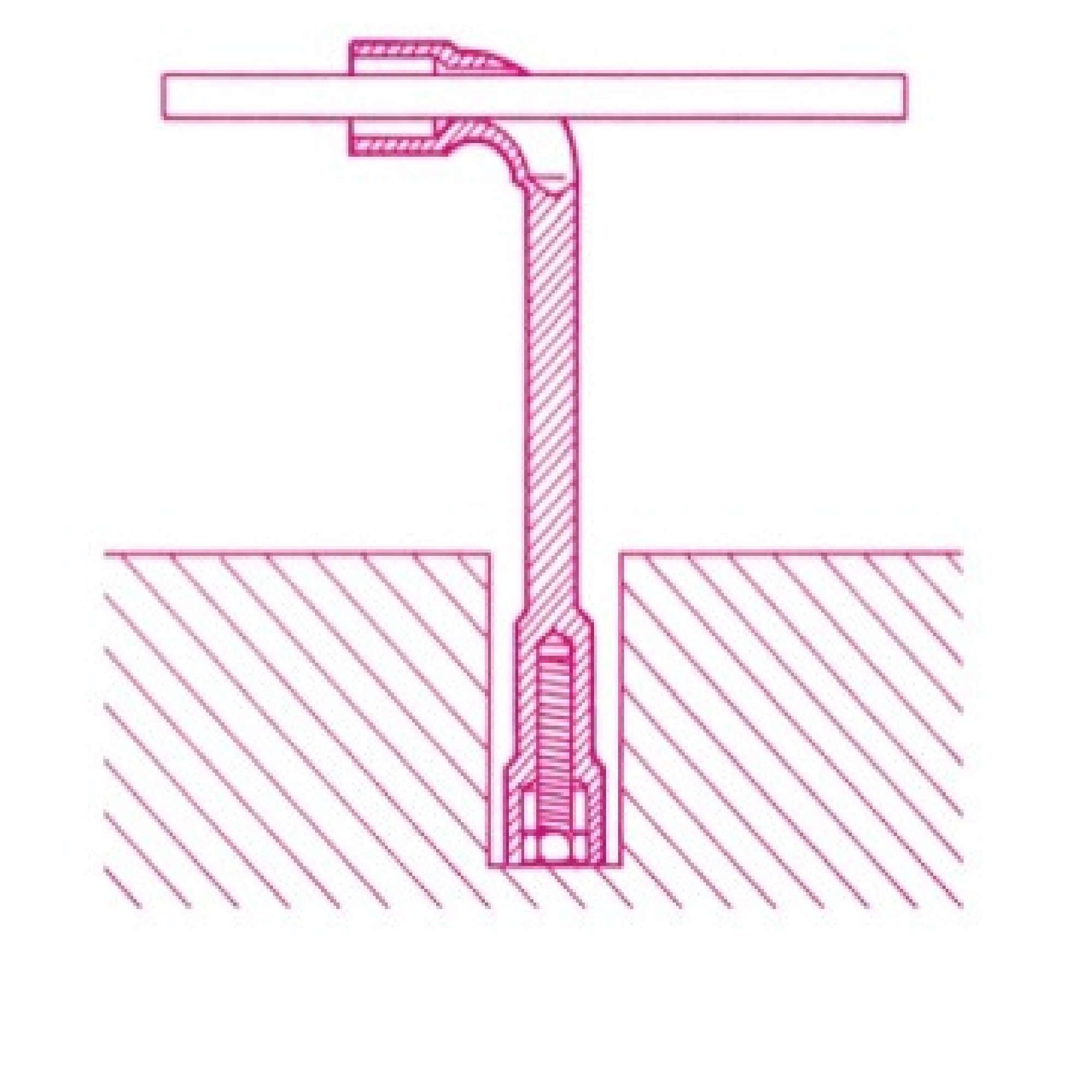

• Can be used with manoeuvring rod inserted in through-hole.

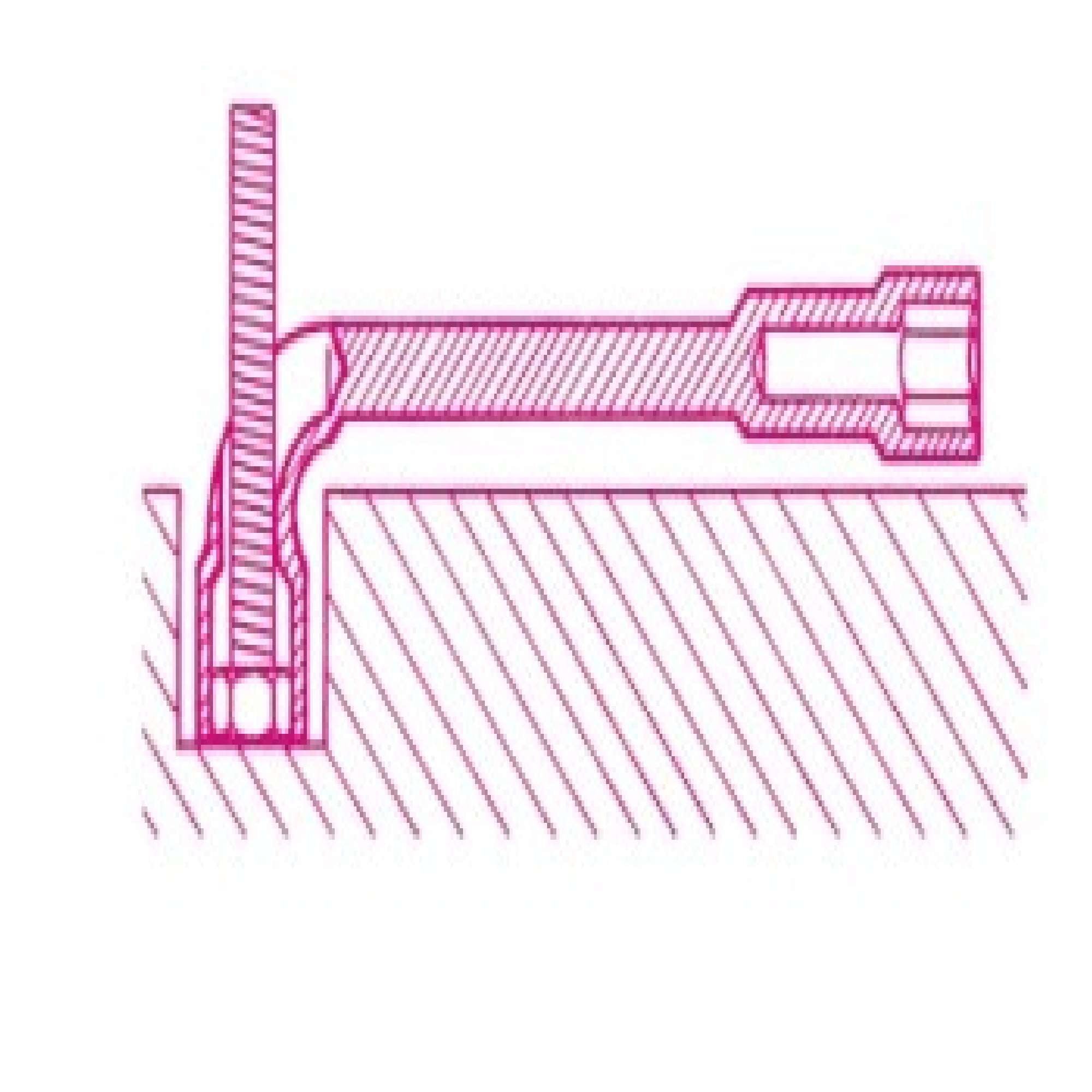

- The hole on the short side allows access to the nut even with protruding threads.
| Product code | Art. |
mm |
Ø mm |
L mm |
Ø1 mm |
A mm |
A1 mm |
L1 mm |
weight g |
|---|---|---|---|---|---|---|---|---|---|
| 009370006 | 937 6X6 | 6x6 | 11,5 | 110 | 5,0 | 8,0 | 15,0 | 15,0 | 55 |
| 009370007 | 937 7X7 | 7x7 | 12,5 | 116 | 6,0 | 9,0 | 18,0 | 15,0 | 60 |
| 009370008 | 937 8X8 | 8x8 | 13,0 | 120 | 6,0 | 11,0 | 20,0 | 21,0 | 65 |
| 009370009 | 937 9X9 | 9x9 | 14,0 | 125 | 7,0 | 11,0 | 20,0 | 21,0 | 75 |
| 009370010 | 937 10X10 | 10x10 | 16,5 | 133 | 8,0 | 13,0 | 22,0 | 25,0 | 105 |
| 009370011 | 937 11X11 | 11x11 | 17,5 | 143 | 8,5 | 14,0 | 23,0 | 25,0 | 125 |
