Description

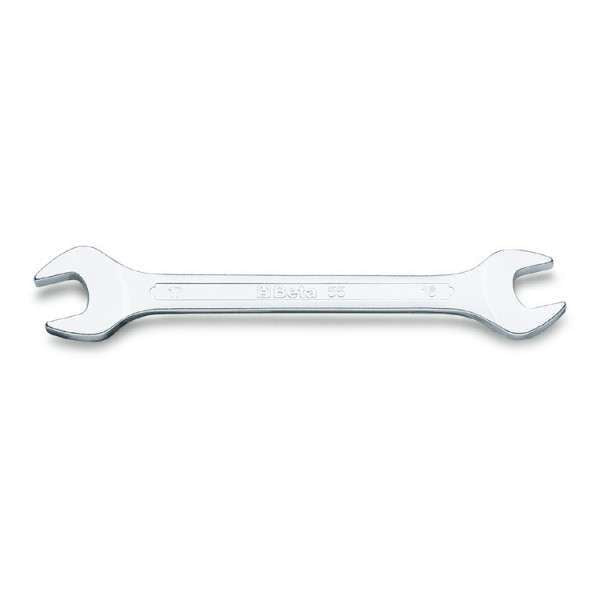

Double open end wrenches
• Compact heads.
• Torque values significantly higher than ISO 1711-1 standards
• Torque values significantly higher than ISO 1711-1 standards

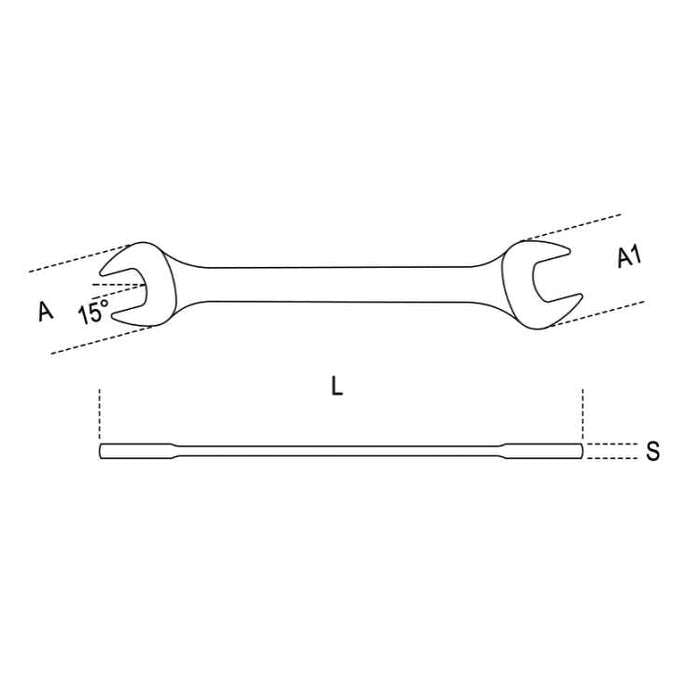

Product Name |
Art. |
mm |
L mm |
A mm |
A1 mm |
S mm |
g |
|---|---|---|---|---|---|---|---|
| 000550003 | 55 4X5 | 4x5 | 101 | 12,5 | 14,0 | 3,0 | 12 |
| 000550012 | 55 6X7 | 6x7 | 120 | 15,5 | 17,5 | 3,5 | 21 |
| 000550018 | 55 7X8 | 7x8 | 140 | 19,5 | 21,5 | 4,0 | 32 |
| 000550030 | 55 10X11 | 10x11 | 155 | 23,5 | 25,5 | 4,5 | 47 |
| 000550042 | 55 12X13 | 12x13 | 170 | 27,5 | 29,5 | 5,0 | 69 |
| 000550051 | 55 13X17 | 13x17 | 189 | 31,5 | 37,5 | 6,0 | 114 |
| 000550054 | 55 14X15 | 14x15 | 185 | 31,5 | 33,5 | 5,5 | 92 |
| 000550060 | 55 16X17 | 16x17 | 202 | 35,5 | 37,5 | 6,0 | 122 |
| 000550063 | 55 17X19 | 17x19 | 220 | 39,5 | 41,5 | 6,5 | 147 |
| 000550078 | 55 21X23 | 21x23 | 245 | 45,5 | 49,5 | 7,6 | 245 |
| 000550087 | 55 24X26 | 24x26 | 262 | 51,5 | 55,5 | 8,0 | 300 |
| 000550090 | 55 24X27 | 24x27 | 262 | 51,5 | 55,5 | 8,0 | 310 |
| 000550108 | 55 30X32 | 30x32 | 297 | 63,5 | 67,5 | 9,0 | 490 |
| 000550117 | 55 34X36 | 34x36 | 325 | 68,4 | 76,1 | 11,0 | 614 |
| 000550123 | 55 36X41 | 36x41 | 375 | 76,0 | 85,6 | 13,0 | 858 |
