Description

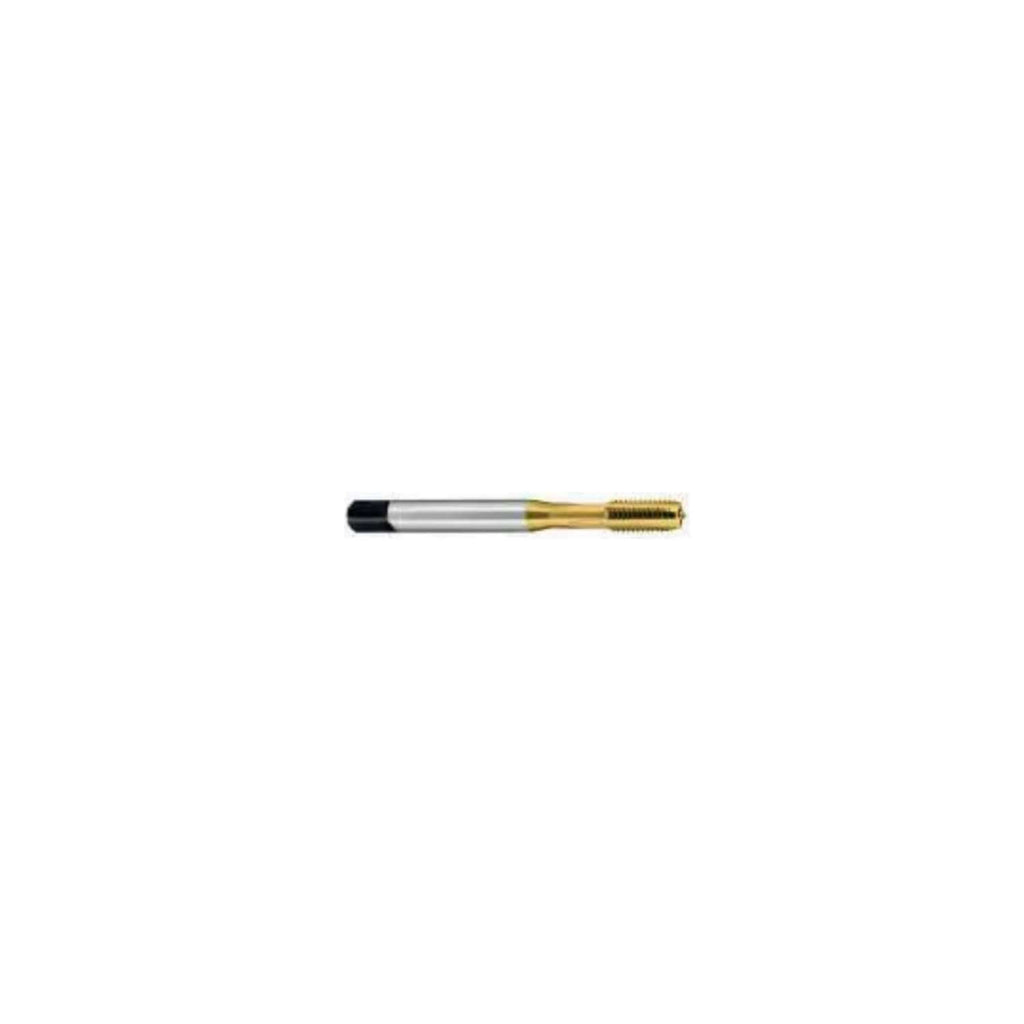

N - GENERIC APPLICATIONS - DIN 371 - CATALOGO 6706TN
Material: HSS-CO
Notes: for deep tapping from 1 to 1.5 times the ø of the male

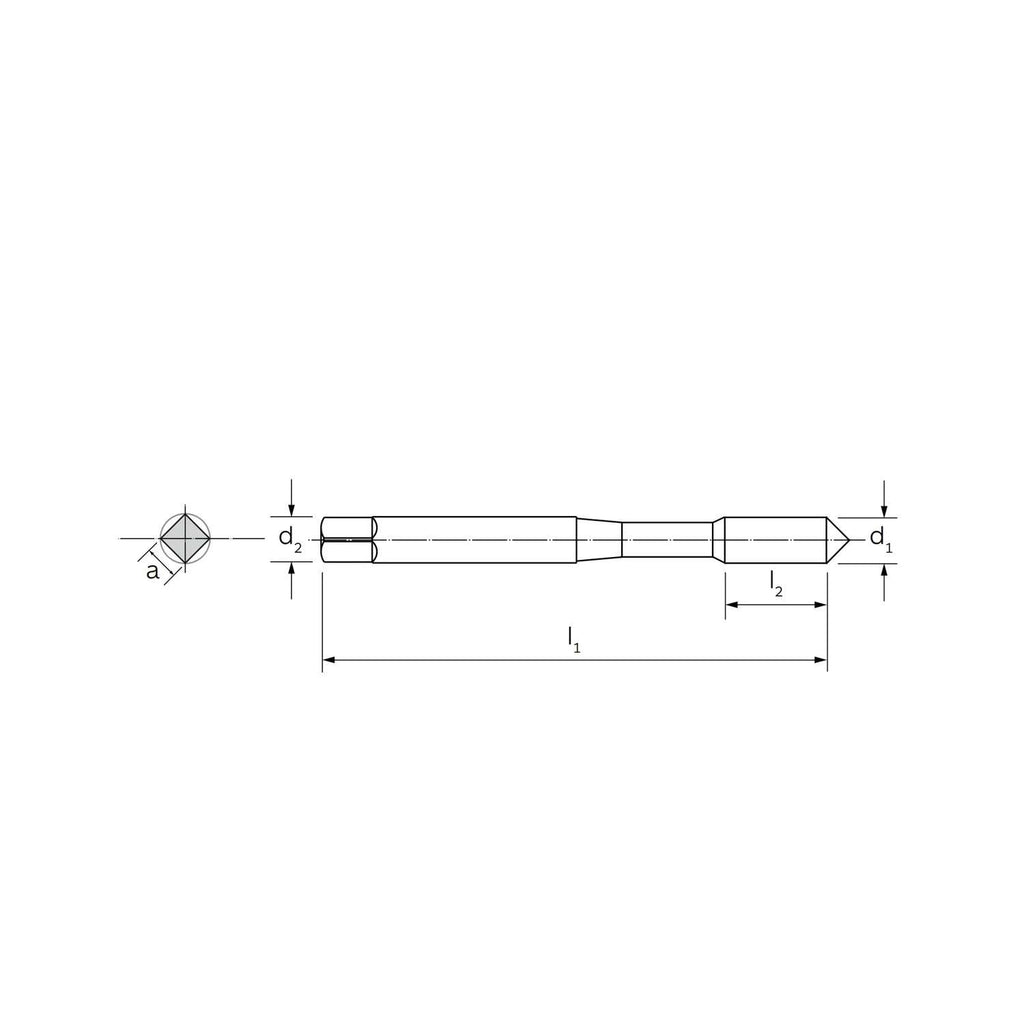

| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
| 2.5 | 50 | 9 | 4 | 2.8 | 2.1 | 2.05 | 0.45 |
Material: HSS-CO
Notes: for deep tapping from 1 to 1.5 times the ø of the male
| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
| 2.5 | 50 | 9 | 4 | 2.8 | 2.1 | 2.05 | 0.45 |
