Description

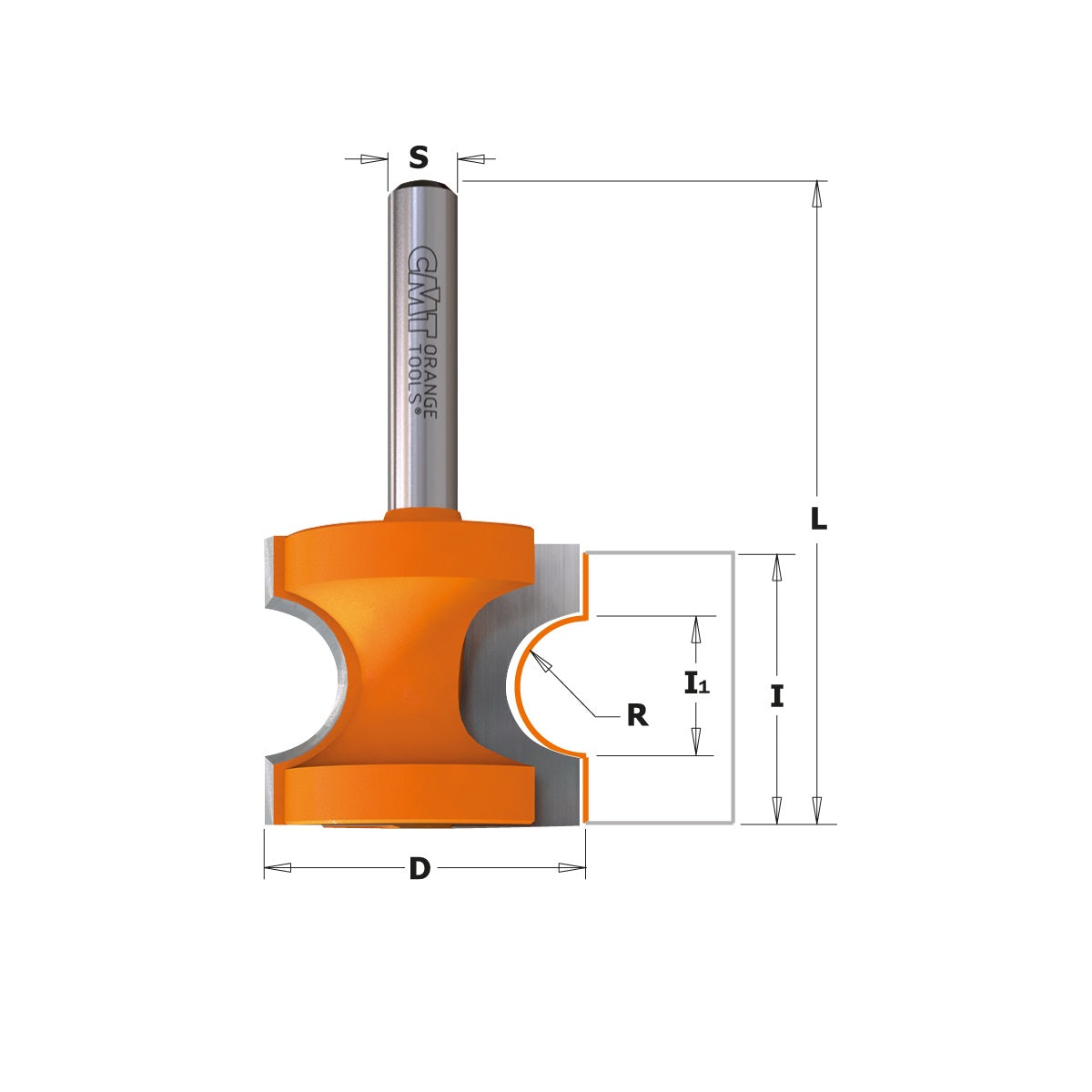

Half-round cutter with two cutting edges, radius 4,75 mm - CMT 754.003.11
SAFETY RECOMMENDATIONS:
These cutters require the use of a guide table, except when moving track guides and brackets are used on portable electric milling machines.
USEFUL TIPS:
Position the guides so that the depth of cut does not exceed the radius of the cutter. For greater depths of cut you must use guides with independent input and output adjustment.
These cutters require the use of a guide table, except when moving track guides and brackets are used on portable electric milling machines.
USEFUL TIPS:
Position the guides so that the depth of cut does not exceed the radius of the cutter. For greater depths of cut you must use guides with independent input and output adjustment.
| Code | S | R | L | I1 | I | D |
|---|---|---|---|---|---|---|
| 754.003.11 | 6 mm | 4,75 mm | 54 mm | 9,85 mm | 22 mm | 25,4 mm |
