Description
Hammers
Model: 0769/UD9024
Article number: 11851879

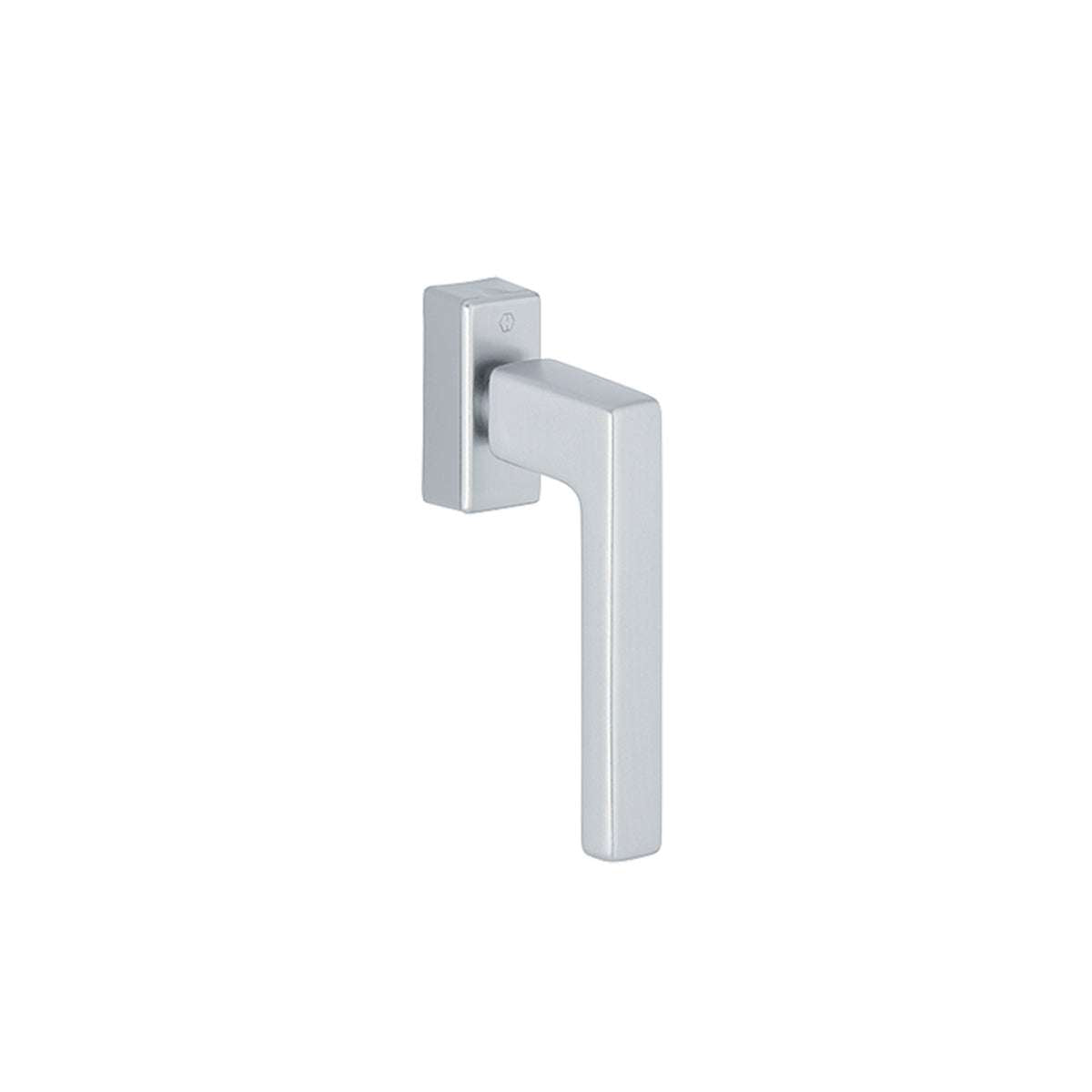

DK HOPPE hammers made of aluminum with SecuForte® and VarioFit®:
certified according to DIN EN 13126-3: 23/180-0131/13/C1 and RAL-GZ 607/9
snap: 90°
cover: partial cover plate
under-construction: resin, pins
framework: full HOPPE framework, thanks to a compression spring applied to the framework on the inside, covers a variable depth of up to 10 mm
fastening: screw covers, M5 threaded screws
special features: automatic locking function in closed position (0°) and tilt position (180°)
utilization category 2 according to DIN EN 13126-3
Details
Product type: DK hammer
Version: SecuForte®
Rosette shape: angular (rectangular) rosette shape
Material: aluminum
Finish: F94-1 aluminum satin chrome appearance
Square size: 7 mm
Square length: 32-42 mm
Pin diameter: 10 mm
Stop: 90°
Usage category: 2
