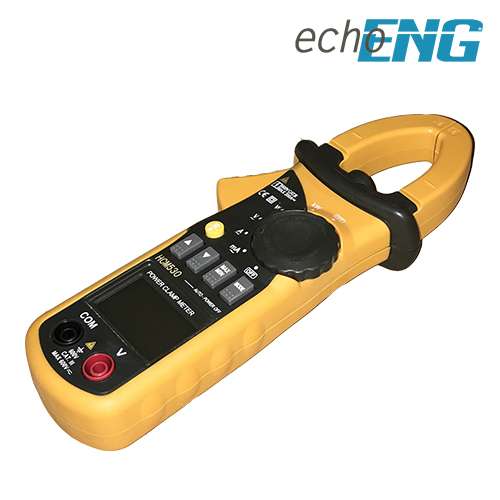

Description
"
6000-count LCD display.
Automatic selection of the measuring range.
Data hold function.
Clamp opening: 26mm.
Compliant with IEC/EN 61010-1 1000V CAT II, 600 V CAT III.
Specifications |
|
|
||
AC voltage measurement |
V |
10 ÷ 600 ±1.0%+5 |
||
AC current measurement |
A |
2m ÷ 200 ±2%+5 |
||
Active power measurement |
W |
|
||
Reactive power measurement |
VAr |
0.1 ÷ 120k 0.1 ÷ 120k ±3.0%+5 |
||
Power factor |
- |
0.3cap ÷ 0.3ind±0.02% |
||
Frequency measurement |
Hz |
30 ÷ 1000 ±0.5%+1 |
||
Harmonic test |
- |
1 ÷ 20 |
||
Operating temperature |
°C |
-10 ÷ 55 |
||
Humidity |
- |
95% (from 10 to 30 °C) 75% (from 30 to 40 °C) 45% (from 40 to 50 °C) 35% (from 50 to 55 °C) |
||
Electrical supply |
Battery |
3 x 1.5V AAA |
||
Dimensions |
mm |
210x80x40 |
||
Weight |
g |
265 |
"
