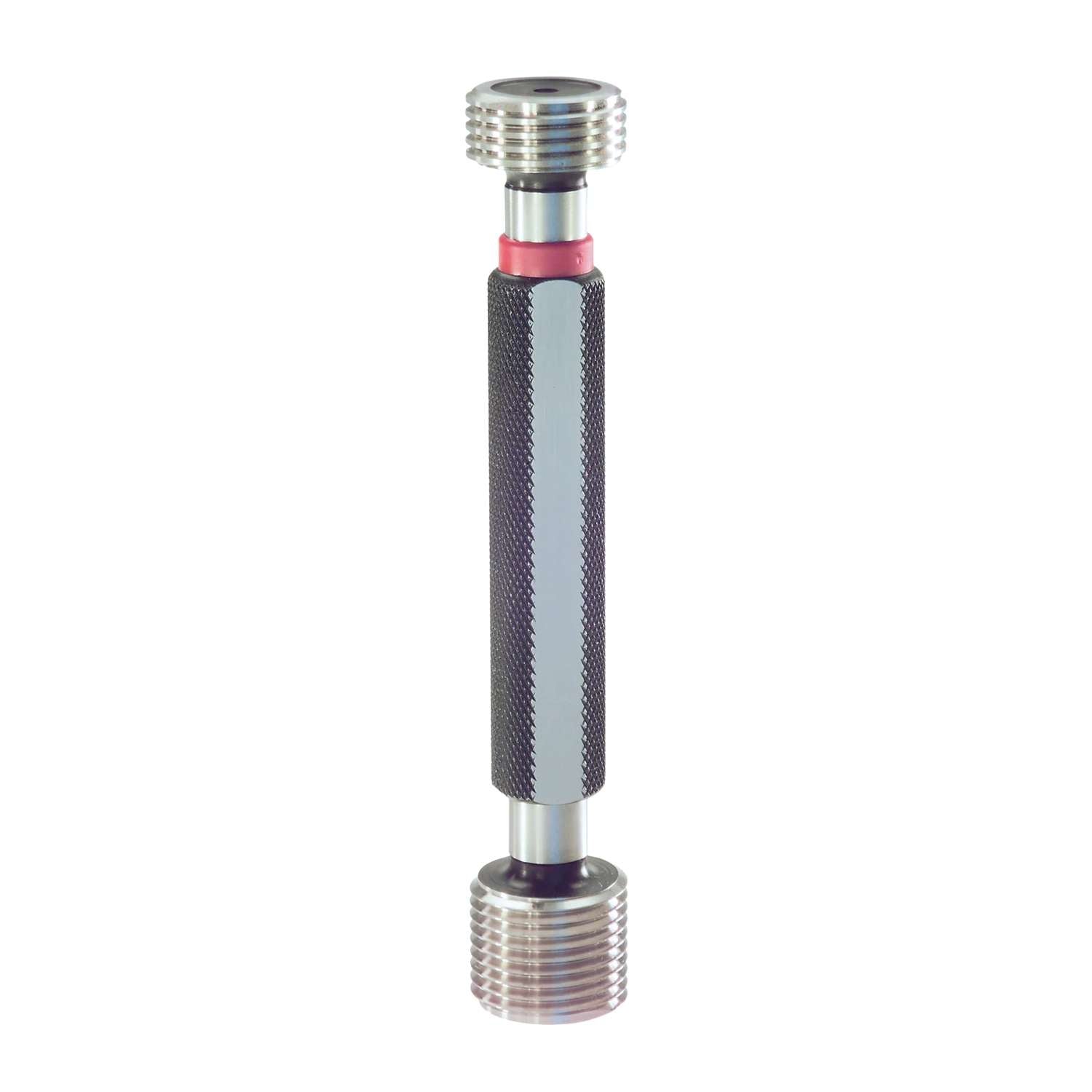

JBO GO/NO-GO GAUGES THREAD. UNC - J904

JboSKU: 232_013_JBOJ904___232_013_JBOJ904 2-56

nome_variante: MEASURE
variante_1: 2-56 - JBOJ904 2-56
Price:
Sale price€134,48
Availability : 3

Description

PLUG GAUGES

FOR UNC THREAD, COARSE PITCH ANSI B 1.1

Type Go/No Go

Tolerance 2B

Specifications:

Ø nominal        Threads per inch nr.

UNC 2                   56

UNC 3                   48

UNC 4                   40

UNC 5                   40

UNC 6                   32

UNC 8                   32

UNC 10                 24

UNC 12                 24

UNC 1/4                20

UNC 5/16              18

UNC 3/8                16

UNC 7/16              14

UNC 1/2                13

UNC 9/16              12

UNC 5/8                11

UNC 3/4                10

UNC 7/8                9

UNC 1                   8

UNC 1 1/8             7

UNC 1 1/4             7

UNC 1 3/8             6

UNC 1 1/2             6
