JBO GO/NO-GO GAUGES THREAD. UNF - J905

JboSKU: 232_013_JBOJ905___232_013_JBOJ905 0-80

nome_variante: MEASURE
variante_1: 0-80 - JBOJ905 0-80
Price:
Sale price€174,68
Availability : 2

Description

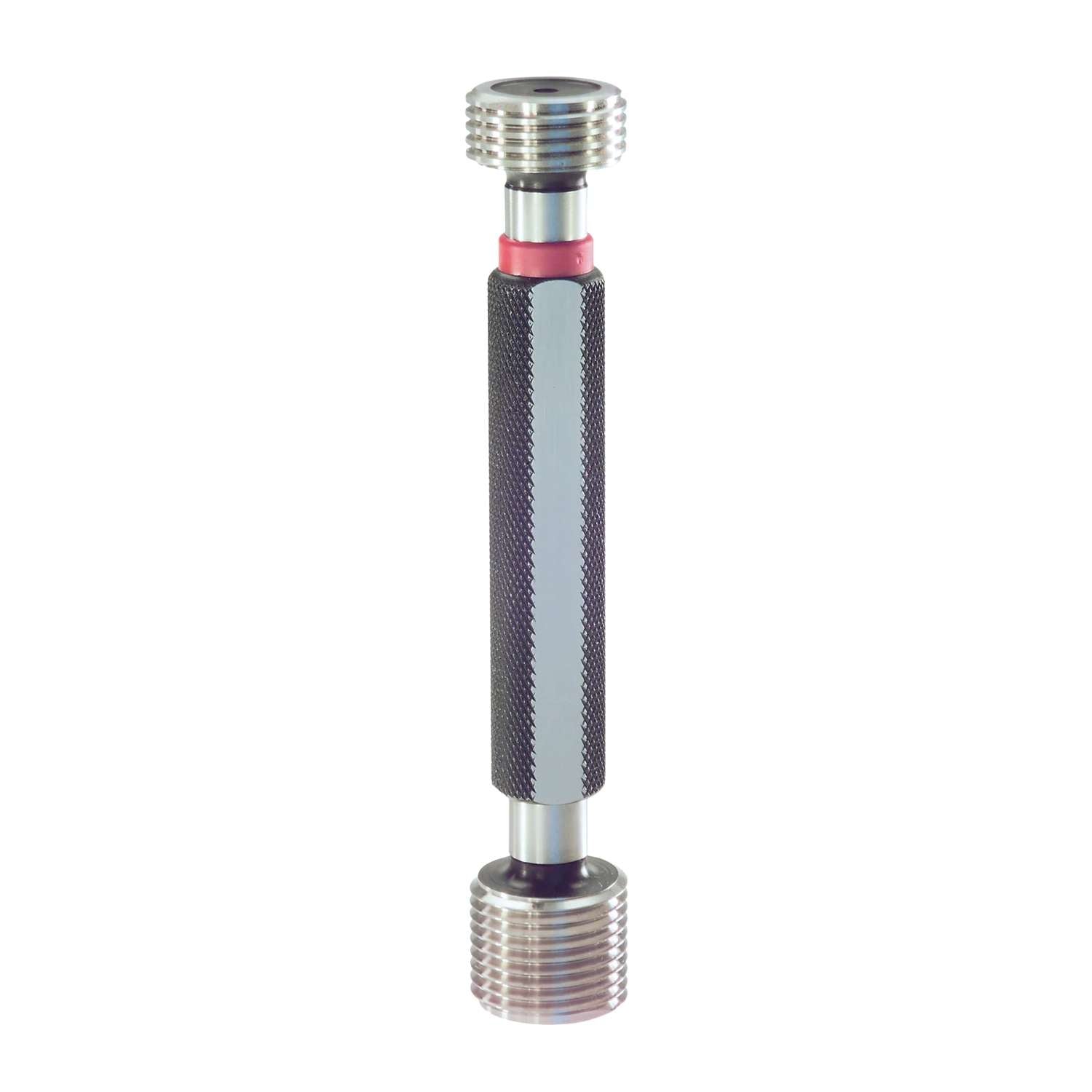

PLUG GAUGES

FOR UNF THREAD, COARSE PITCH ANSI B 1.1

Type Go/No Go

Tolerance 2B

Specifications:

Ø nominal        Threads per inch nr.

UNF 0                   80

UNF 1                   72

UNF 2                   64

UNF 3                   56

UNF 4                   48

UNF 5                   44

UNF 6                   40

UNF 8                   36

UNF 10                 32

UNF 12                 28

UNF 1/4                28

UNF 5/16              24

UNF 3/8                24

UNF 7/16              20

UNF 1/2                20

UNF 9/16              18

UNF 5/8                18

UNF 3/4                16

UNF 7/8                14

UNF 1                   12

UNF 1 1/8             12

UNF 1 1/4             12

UNF 1 3/8             12

UNF 1 1/2             12
