Description

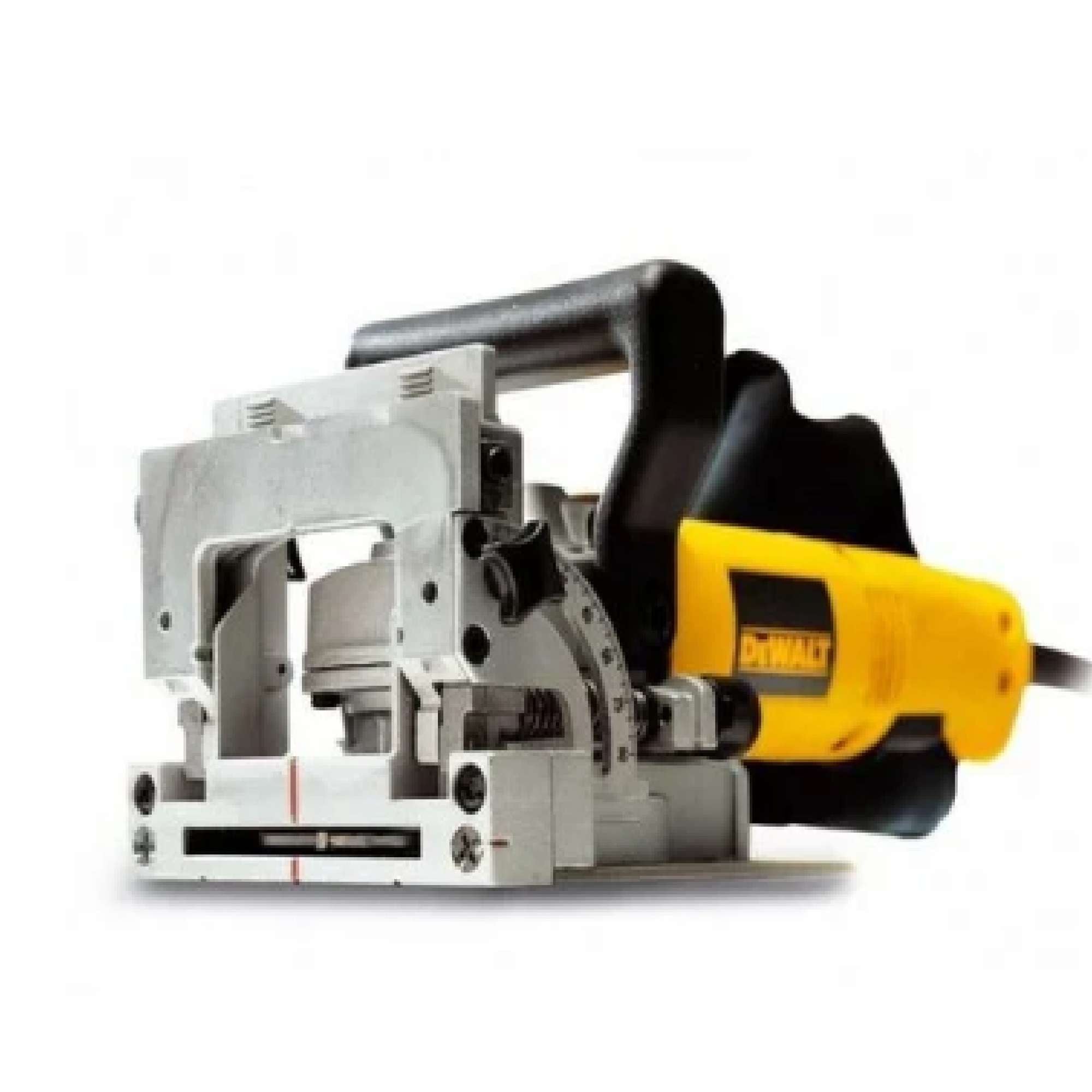

Jointing milling machine with slats 600W - Dewalt DW682K-QS
- Flap milling machine capable of ensuring consistently accurate cuts thanks to non-slip supports, guide slots and window on the stop.
- Shaft locking mechanism for easy and quick blade change.
- Milling depth adjustment device on preset positions (0,10,20,max. depth) and additional intermediate positions.
- Simple and precise mechanism for adjusting the height and angle of the bracket.
- Solid die-cast and ground aluminum base that can be used both vertically and horizontally.
- Offers the possibility of creating grooves up to 20mm deep, which provides ample versatility
| TECHNICAL FEATURES | ||
| Weight | 3.9 kg | |
| No-load speed | 10000.0 Giri/min | |
| Maximum cutting diameter | 100 mm | |
| Max.cutting depth | 20 mm | |
| Team adjustment | 0-90 ° | |
| Header width | 4 mm | |
| Power Source | Filo | |
| Power consumption | 600W | |
| Power output | 335W | |
| Length | 320 mm | |
| Height | 150 mm | |
| Hand/arm vibration | 2.5 m/s² | |
| Uncertainty (Vibrations) | 1.5 m/s² | |
| Acoustic pressure | 82 dB(A) | |
| Uncertainty (Sound Power) | 3 dB(A) | |
| Acoustic power | 100 dB(A) | |
| EQUIPMENT |
| 35mm vacuum cleaner adapter |
| TCT blade |
| Chip catcher bag |
| Briefcase |
