Description

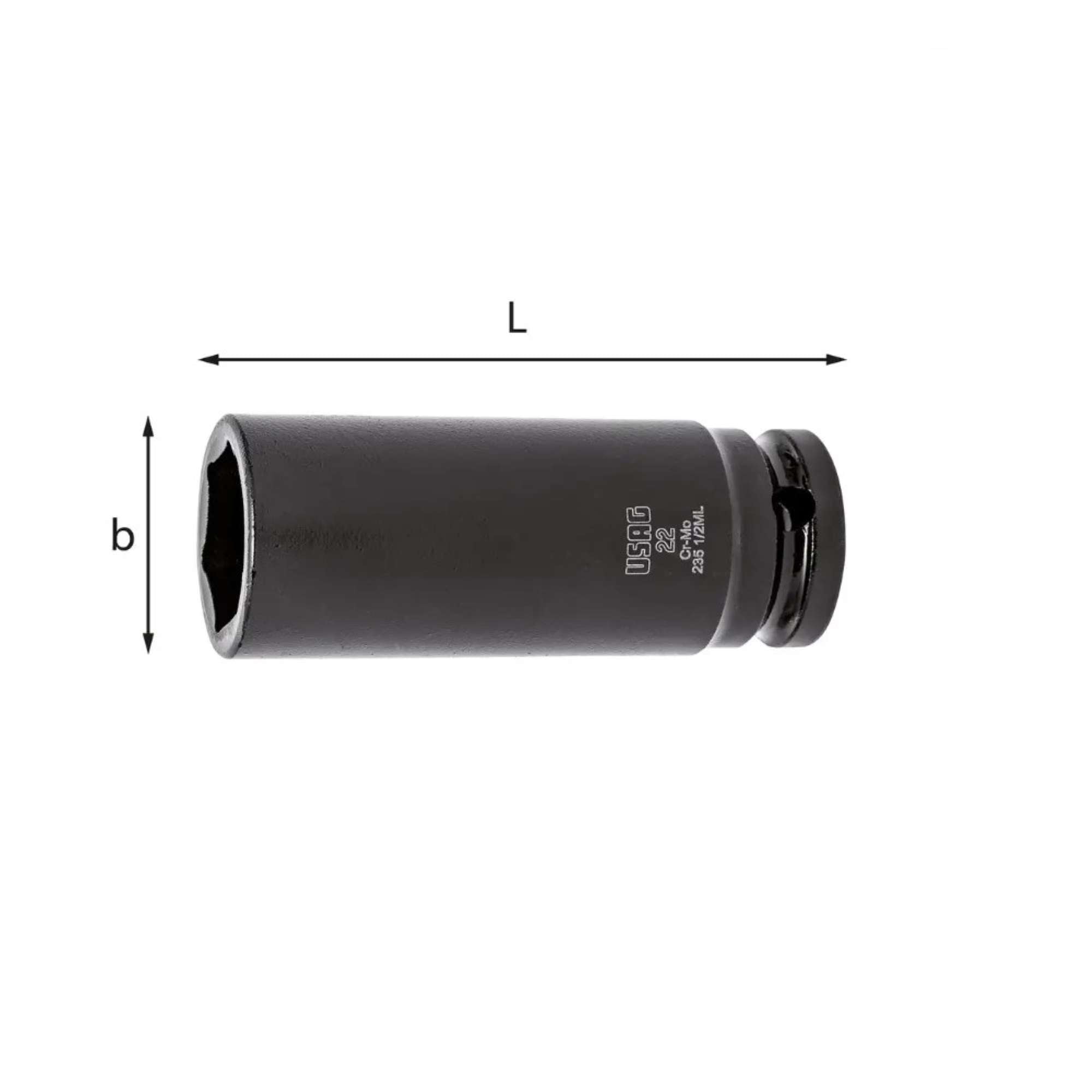

Long machine socket wrenches with hexagonal mouth - 1/2 M Usag
ISO 2725-2
- Highly alloyed chrome molybdenum special steel
- Phosphated execution
- Use seal pin 235 MCA/4 (U02350204Q) for sizes 10÷21 and 235 MCA/6 (U02350206Q) for sizes 22÷27
- Use the retaining ring 235 MDA/4 (U02350224Q) for 10÷21 measurements and the 235 MDA/6 (U02350226Q) for 22÷27 measurements
| Code |
 Hexagonal mouth mm
|
b mm | L mm | Q.ty x pkg. |
|---|---|---|---|---|
| U02350241 | 13 | 20 | 82 | 1 |
| U02350243 | 17 | 26 | 82 | 1 |
| U02350244 | 19 | 30 | 82 | 1 |
| U02350246 | 24 | 36 | 82 | 1 |
| U02350247 | 27 | 40 | 82 | 1 |
| U02350278 | 16 | 25 | 82 | 1 |
