Description

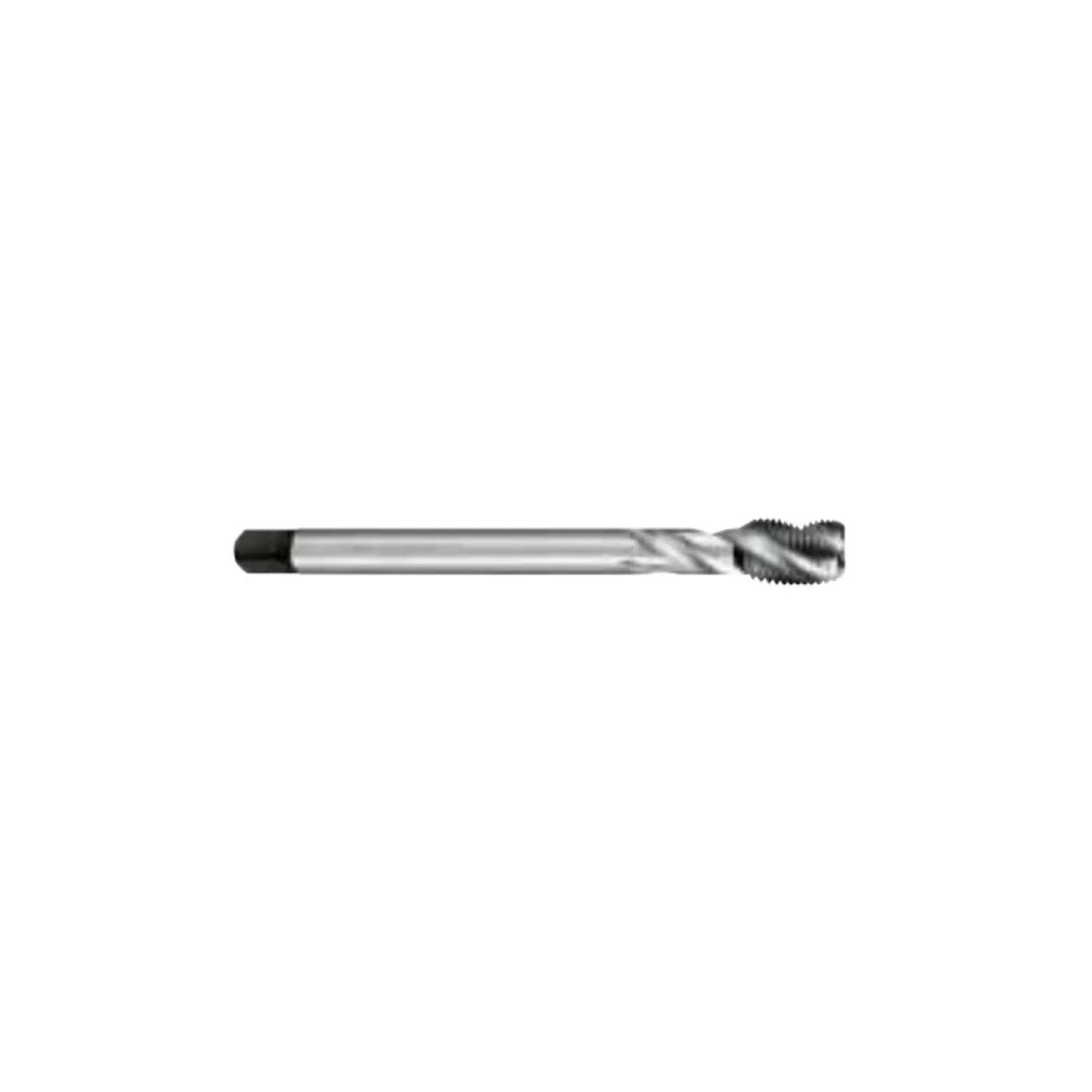

N - GENERIC APPLICATIONS - DIN 374 - CATALOGUE 6652
Material: HSS-CO
| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
| 5X.5 | 70 | 12 | 8 | 3.5 | 2.7 | 4.5 | 0.5 |
| 6X.75 | 80 | 14 | 10 | 4.5 | 3.4 | 5.2 | 0.75 |
| 10X1.25 | 100 | 24 | 14 | 7 | 5.5 | 8.8 | 1.25 |
| 12X1.5 | 100 | 22 | 16 | 9 | 7 | 10.5 | 1.5 |
| 14X1.5 | 100 | 22 | 20 | 11 | 9 | 12.5 | 1.5 |
| 16X1.5 | 100 | 22 | 20 | 12 | 9 | 14.5 | 1.5 |
| 22X1.5 | 125 | 25 | 25 | 18 | 14.5 | 20.5 | 1.5 |
| 24X1.5 | 140 | 28 | 28 | 18 | 14.5 | 22.5 | 1.5 |
