Description

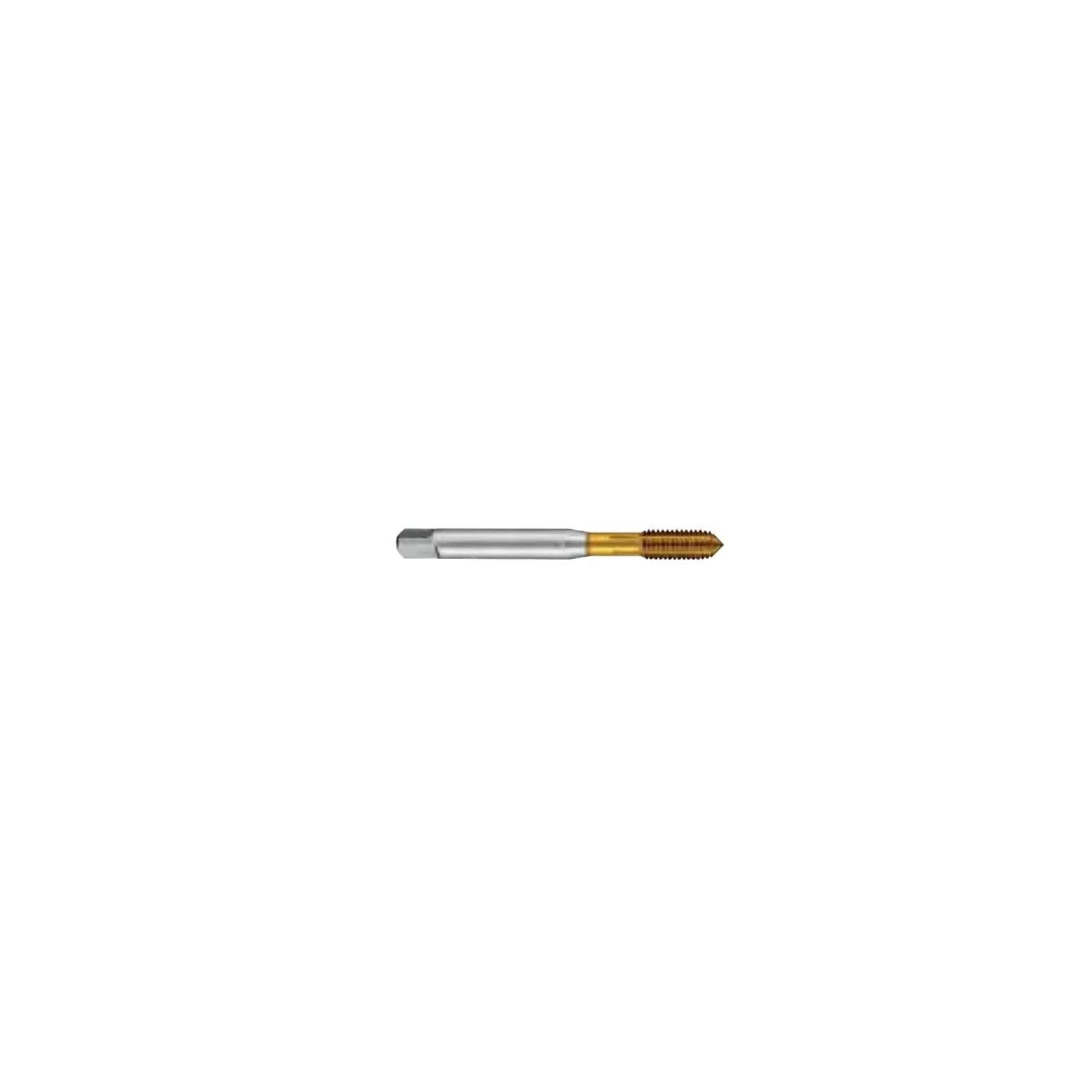

FORMER S - SPECIFIC FOR ALSI / FE - DIN 371 - CATALOGO 6709TN
Material: HSS-Co
Coating: TN
Notes: for blind/through holes up to 1.5 times the ø of the male.

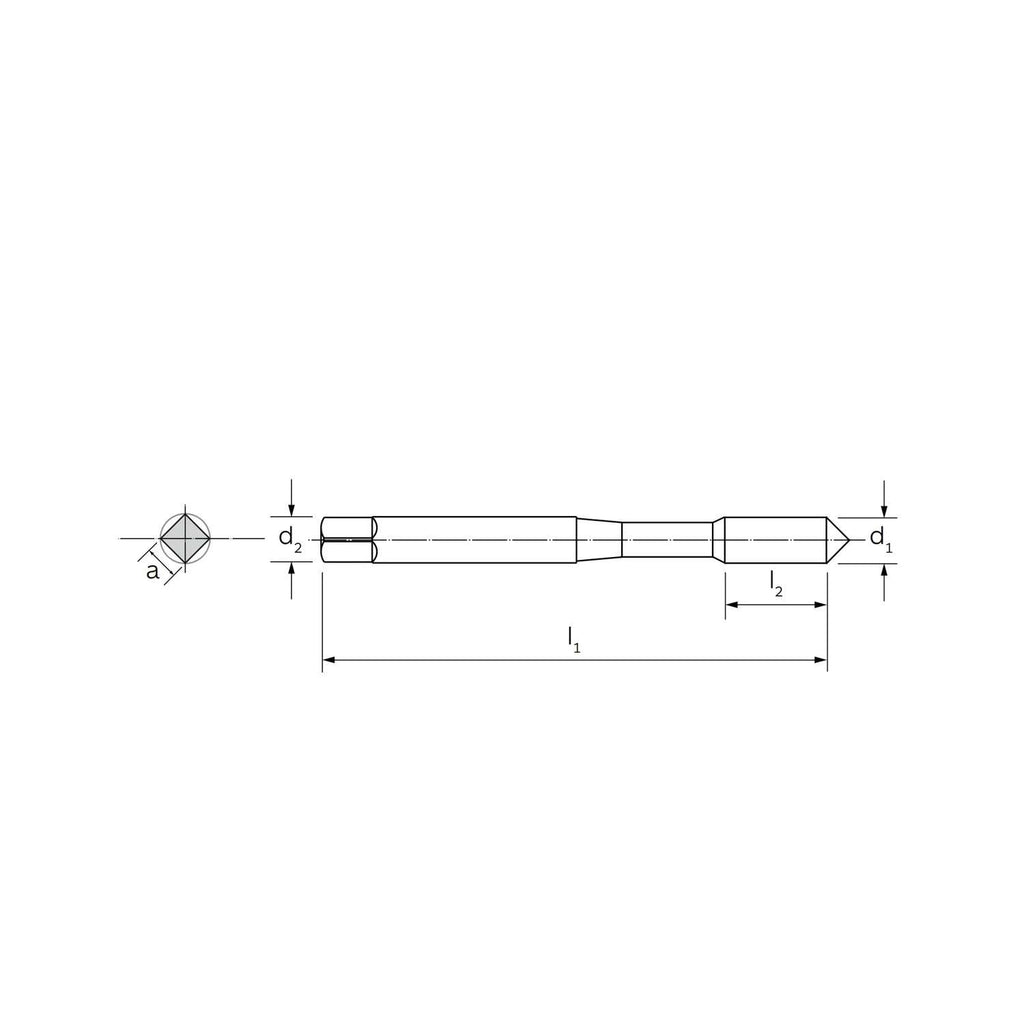

| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 7 | 80 | 19 | 7 | 5.5 | 6.5 | 1 |
| 10 | 100 | 24 | 10 | 8 | 9.3 | 1.5 |
Material: HSS-Co
Coating: TN
Notes: for blind/through holes up to 1.5 times the ø of the male.
| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 7 | 80 | 19 | 7 | 5.5 | 6.5 | 1 |
| 10 | 100 | 24 | 10 | 8 | 9.3 | 1.5 |
