Description

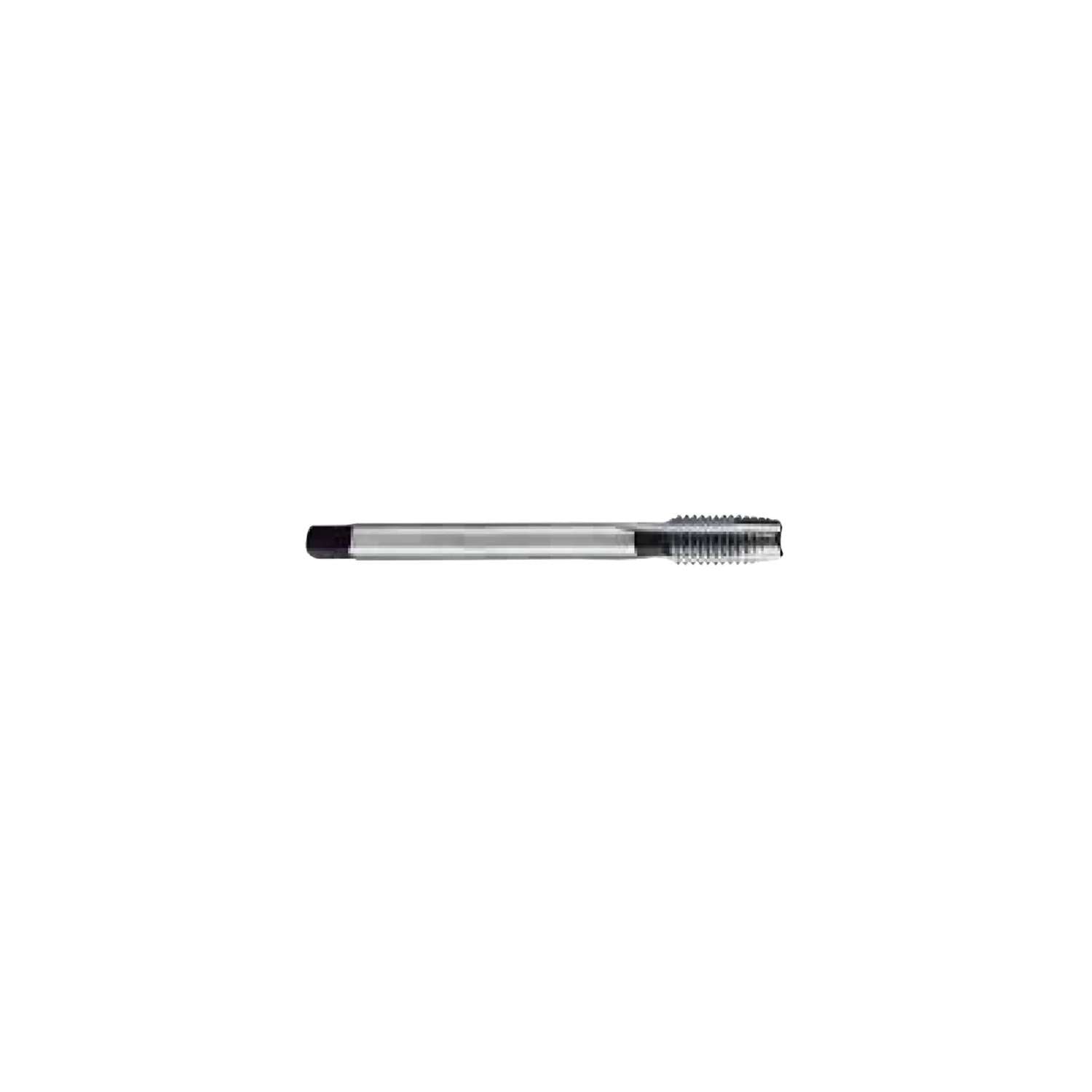

RAPID N - GENERAL APPLICATIONS - DIN 376 - CATALOGUE 6711
Material: HSS-CO

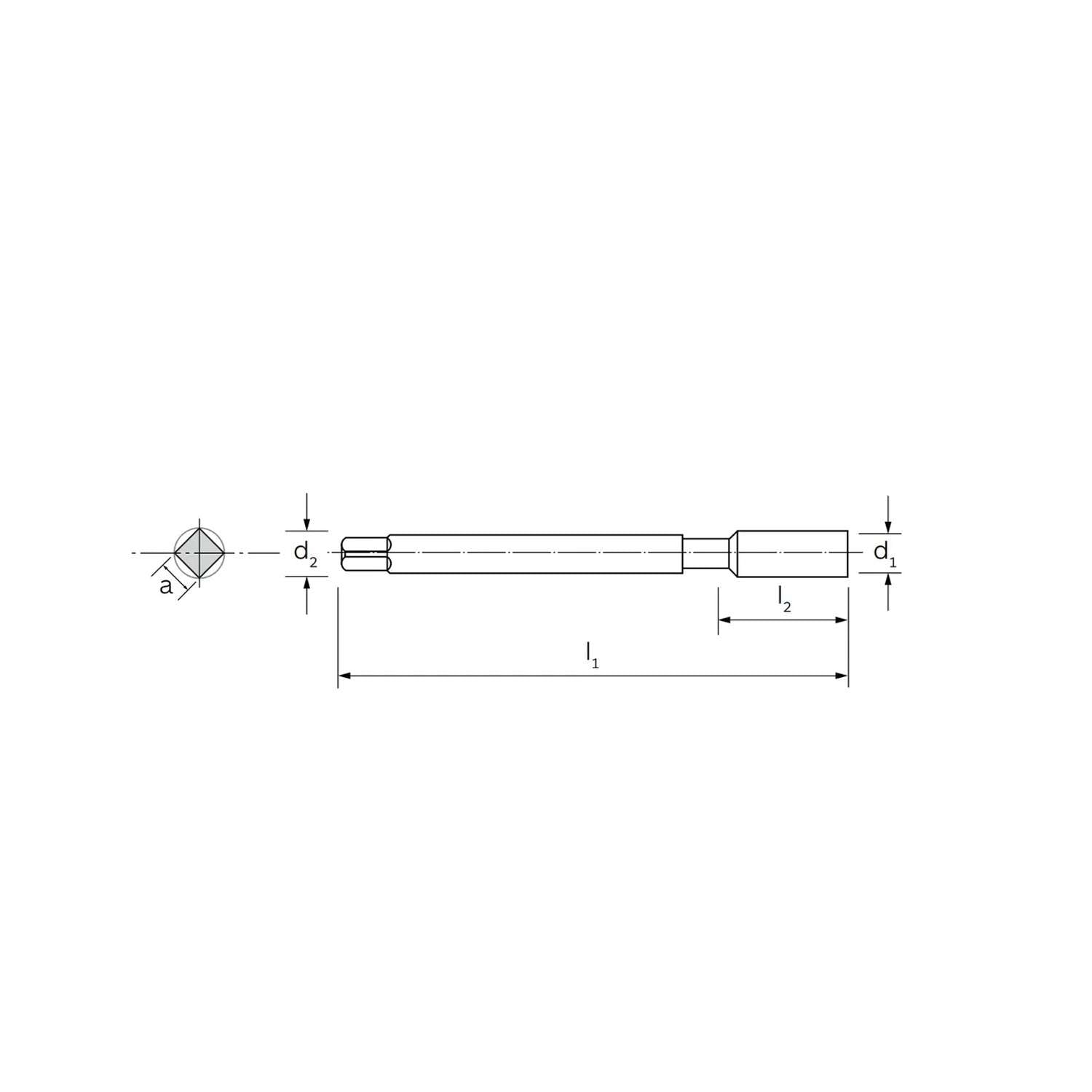

| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 2 | 45 | 8 | 1.4 | - | 1.6 | 0.4 |
| 4 | 63 | 13 | 2.8 | 2.1 | 3.3 | 0.7 |
| 5 | 70 | 16 | 3.5 | 2.7 | 4.2 | 0.8 |
| 8 | 90 | 22 | 6 | 4.9 | 6.8 | 1.25 |
| 10 | 100 | 24 | 7 | 5.5 | 8.5 | 1.5 |
| 12 | 110 | 29 | 9 | 7 | 10.2 | 1.75 |
| 14 | 110 | 30 | 11 | 9 | 12 | 2 |
| 16 | 110 | 32 | 12 | 9 | 14 | 2 |
| 24 | 160 | 38 | 18 | 14.5 | 21 | 3 |
| 27 | 160 | 38 | 20 | 16 | 24 | 3 |
