Description

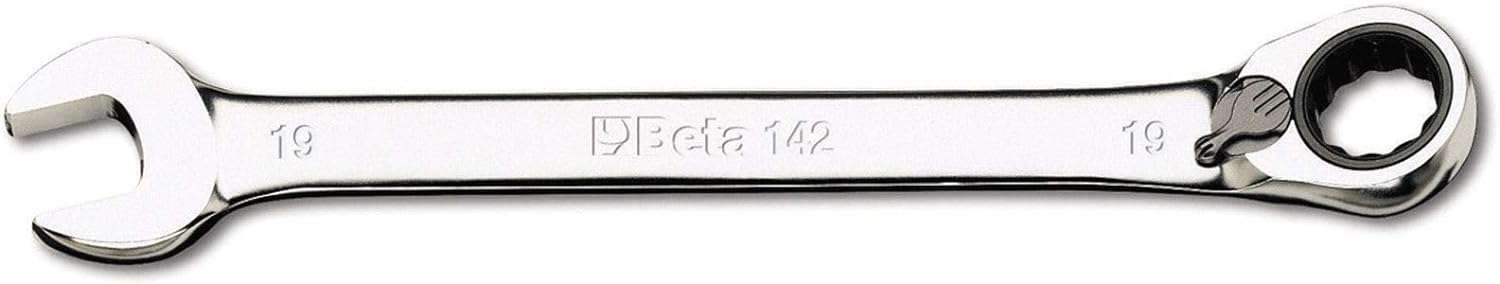

Ratchet combination wrench
The Beta 142 ratchet wrench is ideal for making fast and accurate tightenings. The ratcheting mechanism, with 72 teeth and a recovery angle of only 5°, allows you to tighten and untighten easily and quickly. The reversibility lever allows you to act in one direction or the other with great agility.
Features:
- Polygon bent by 15° for good grip even when maneuvering space is limited
- Fixed mouth head is tilted 15° from the axis to reduce the shooting angle
- 72-tooth ratchet with 5° shooting angle for fast tightening
- Integrated reversibility lever
- High-performance alloy steel for increased mechanical resistance to twisting and long service life
- Dedicated heat treatments for excellent wear resistance
- Satin chrome finish
- Complies with the ISO 21982 - ISO 1711 reference standard

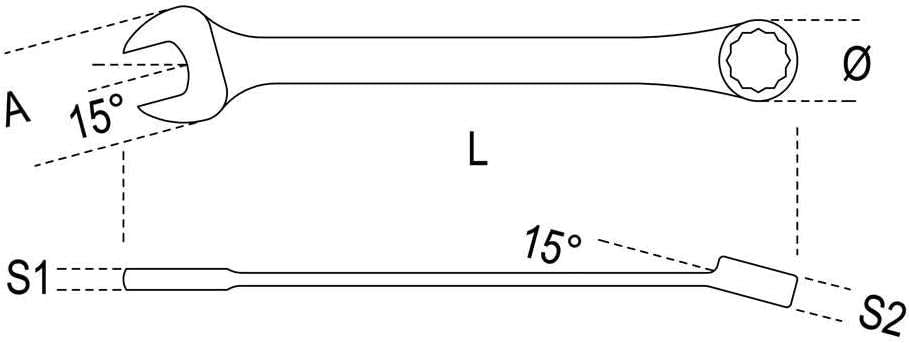

| Product Name |
Art. |
mm |
L mm |
A mm |
Ø mm |
S1 mm |
S2 mm |
g |
|---|---|---|---|---|---|---|---|---|
| 001420006 | 142 6 | 6x6 | 136 | 18,0 | 18,2 | 5,1 | 7,4 | 40 |
| 001420007 | 142 7 | 7x7 | 136 | 18,0 | 18,2 | 5,1 | 7,4 | 40 |
| 001420008 | 142 8 | 8x8 | 136 | 18,0 | 18,2 | 5,1 | 7,4 | 43 |
| 001420009 | 142 9 | 9x9 | 143 | 20,0 | 19,7 | 5,4 | 7,4 | 44 |
| 001420010 | 142 10 | 10x10 | 159 | 22,0 | 21,5 | 5,8 | 7,6 | 60 |
| 001420012 | 142 12 | 12x12 | 174 | 26,5 | 24,3 | 6,4 | 8,9 | 93 |
| 001420013 | 142 13 | 13x13 | 180 | 27,6 | 26,5 | 6,7 | 9,0 | 98 |
| 001420015 | 142 15 | 15x15 | 200 | 33,4 | 29,7 | 7,7 | 9,4 | 143 |
| 001420016 | 142 16 | 16x16 | 216 | 34,6 | 32,6 | 8,1 | 9,9 | 168 |
| 001420017 | 142 17 | 17x17 | 233 | 38,4 | 34,5 | 8,8 | 10,7 | 191 |
| 001420018 | 142 18 | 18x18 | 239 | 39,9 | 34,5 | 9,0 | 11,0 | 210 |
| 001420022 | 142 22 | 22x22 | 285 | 45,8 | 42,0 | 10,2 | 13,0 | 344 |
