Description

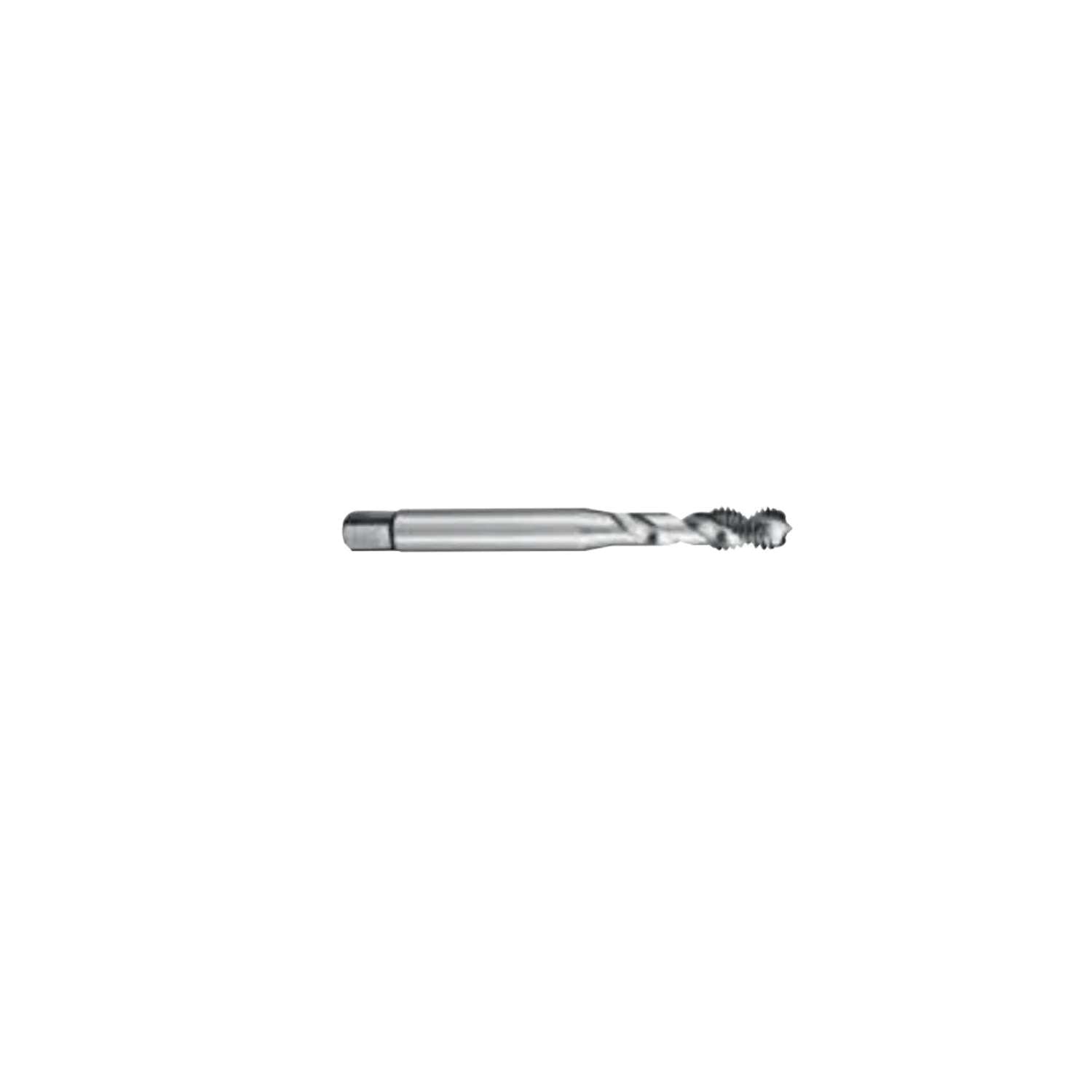

ALU - SPECIFIC FOR ALUMINIUM - DIN 371 - CATALOGUE 6643
Material: HSS-CO

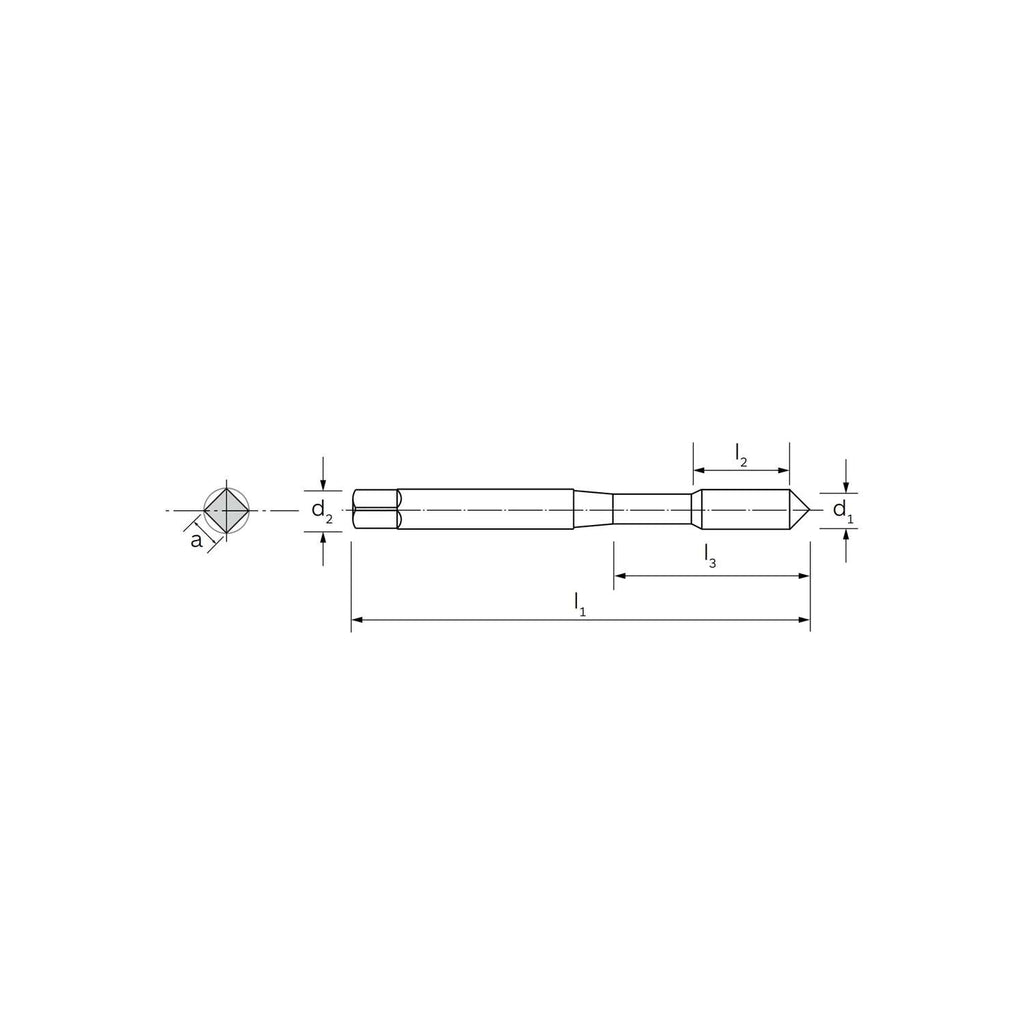

| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
| 2 | 45 | 8 | 4 | 2.8 | 2.1 | 1.6 | 0.4 |
| 2.5 | 50 | 9 | 4 | 2.8 | 2.1 | 2.05 | 0.45 |
| 3 | 56 | 11 | 5 | 3.5 | 2.7 | 2.5 | 0.5 |
| 3.5 | 56 | 13 | 6 | 4 | 3 | 2.9 | 0.6 |
| 4 | 63 | 13 | 7 | 4.5 | 3.4 | 3.3 | 0.7 |
| 5 | 70 | 16 | 8 | 6 | 4.9 | 4.2 | 0.8 |
| 8 | 90 | 22 | 12 | 8 | 6.2 | 6.8 | 1.25 |
| 10 | 100 | 24 | 14 | 10 | 8 | 8.5 | 1.5 |
