Description

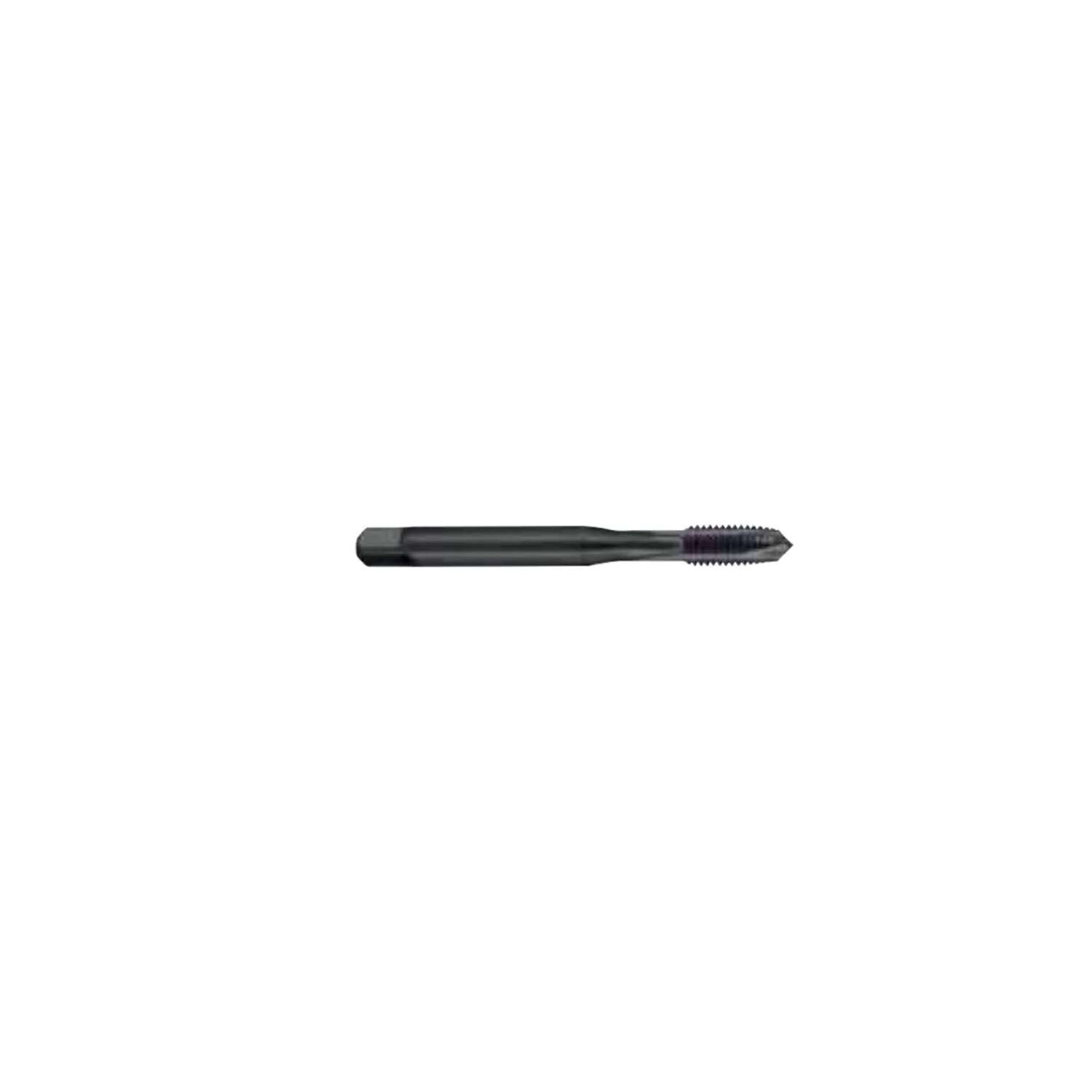

VA - SPECIFIC FOR STAINLESS STEEL - DIN 371 - CATALOGO 6646VP
Material: HSS-CO

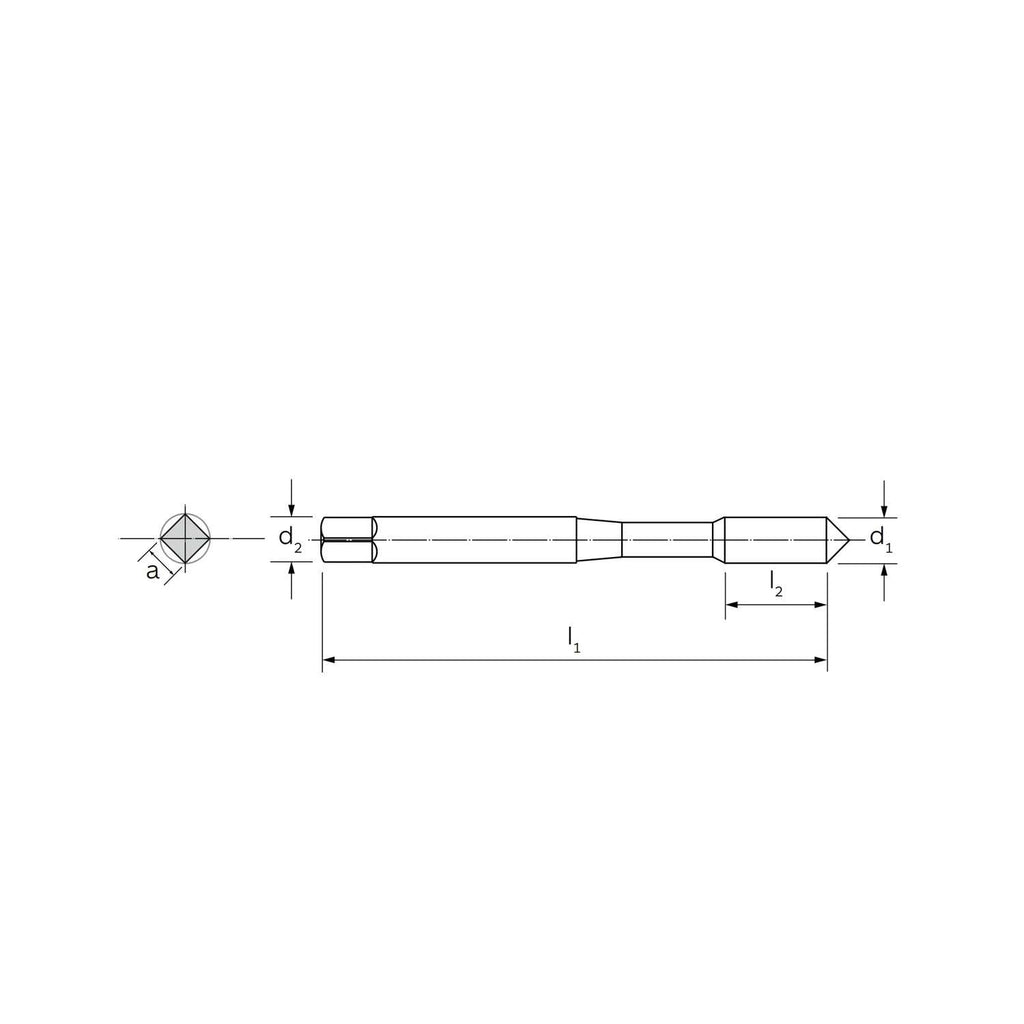

| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 3 | 56 | 11 | 3.5 | 2.7 | 2.5 | 0.5 |
| 4 | 63 | 13 | 4.5 | 3.4 | 3.3 | 0.7 |
| 6 | 80 | 19 | 6 | 4.9 | 5 | 1 |
| 10 | 100 | 24 | 10 | 8 | 8.5 | 1.5 |
Material: HSS-CO
| Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
| 3 | 56 | 11 | 3.5 | 2.7 | 2.5 | 0.5 |
| 4 | 63 | 13 | 4.5 | 3.4 | 3.3 | 0.7 |
| 6 | 80 | 19 | 6 | 4.9 | 5 | 1 |
| 10 | 100 | 24 | 10 | 8 | 8.5 | 1.5 |
