Description

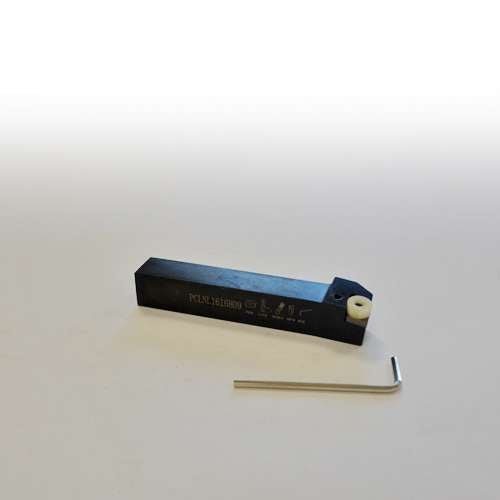

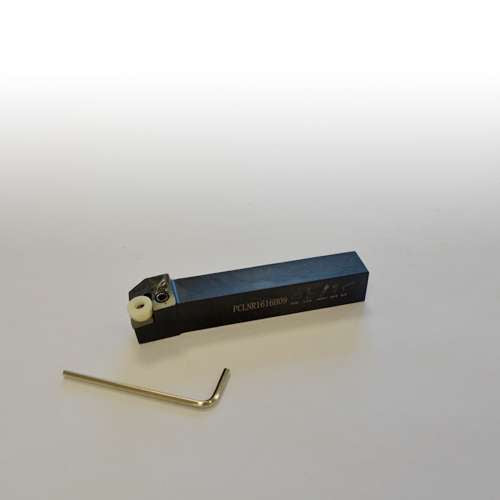

PCLN – Tool holder for lathe insert for external turning
Model DX |
Model SX |
Dimensions |
Insert (not included) |
|||
|
|
a |
b |
L |
h |
|
PCLNR1616H09 |
PCLNL1616H09 |
16 |
16 |
100 |
16 |
CNMG090304 |
PCLNR2020K12 |
PCLNL2020K12 |
20 |
20 |
125 |
20 |
CNMG120404 and CNMG120408 |
PCLNR2525M12 |
PCLNL2525M12 |
25 |
25 |
150 |
25 |
CNMG120404 and CNMG120408 |
CNMG – Carbide plate inserts lathe turning
Set of 10 pcs.
ISO Code P20
Technical Description
Model |
Dimensions |
||||
|
L |
I.C |
S |
d |
r |
CNMG090304 |
9.7 |
9.52 |
3.18 |
3.85 |
0.4 |
CNMG120404 |
12.9 |
12.7 |
4.76 |
5.16 |
0.4 |
CNMG120408 |
12.9 |
12.7 |
4.76 |
5.16 |
0.8 |
