Description

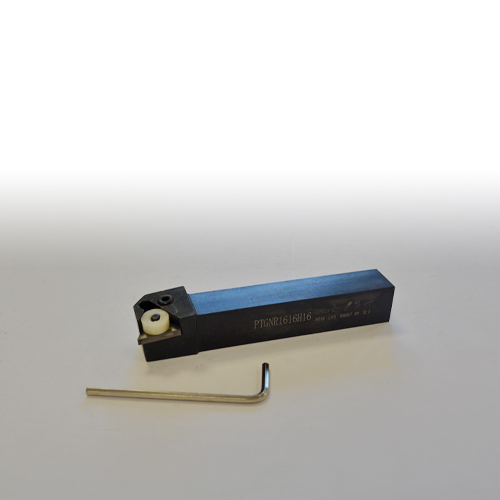

PTGNR/L – Tool holder for lathe insert for external turning
Model DX |
Model SX |
Dimensions |
Insert |
|||
|
|
a |
b |
L |
h |
|
PTGNR1616H16 |
PTGNL1616H16 |
16 |
16 |
100 |
16 |
TNMG160404 TNMG160408 |
PTGNR2020K16 |
PTGNL2020K16 |
20 |
20 |
125 |
20 |
TNMG160404 TNMG160408 |
PTGNR2525M16 |
PTGNL2525M16 |
25 |
25 |
150 |
25 |
TNMG160404 TNMG160408 |
