Description
SDJCR/L – Tool holder for lathe insert for external turning
Model DX |
Model SX |
Dimensions |
Insert |
|||
|
|
a |
b |
L |
h |
|

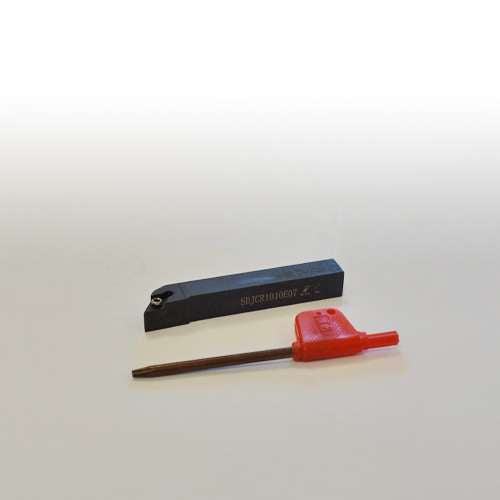

SDJCR1010E07 |
- |
10 |
10 |
70 |
10 |
DCMT070204 |

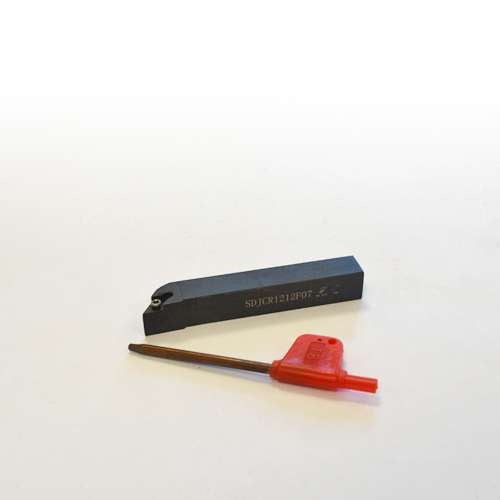

SDJCR1212F07 |
- |
12 |
12 |
80 |
12 |
DCMT070204 |
SDJCR1616H07 |
- |
16 |
16 |
100 |
16 |
DCMT070204 |
SDJCR2020K07 |
SDJCL2020K07 |
20 |
20 |
125 |
20 |
DCMT11T304 |
SDJCR2525M11 |
SDJCL2525M11 |
25 |
25 |
150 |
25 |
DCMT11T304 |
