Description

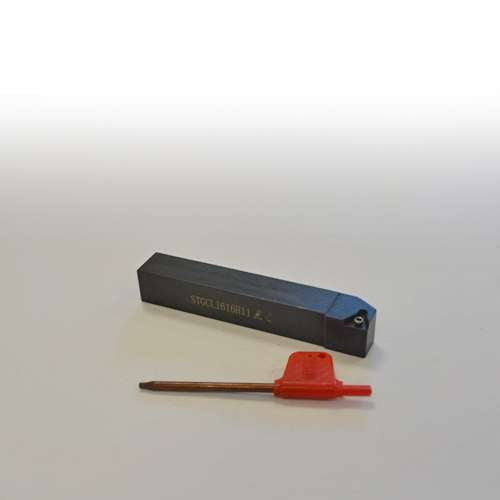

STGCR/L – Tool holder for lathe insert for external turning
Model DX |
Model SX |
Dimensions |
Insert |
|||
|
|
a |
b |
L |
h |
|
STGCR1010E09 |
STGCL1010E09 |
10 |
10 |
70 |
10 |
TCMT090204 |
STGCR1212F11 |
STGCL1212F11 |
12 |
12 |
80 |
12 |
TCMT110204 |
STGCR1616H11 |
STGCL1616H11 |
16 |
16 |
100 |
16 |
TCMT110204 |
STGCR2020K16 |
STGCL2020K16 |
20 |
20 |
125 |
20 |
TCMT16T304 TCMT16T308 |
STGCR2525M16 |
STGCL2525M16 |
25 |
25 |
150 |
25 |
|
