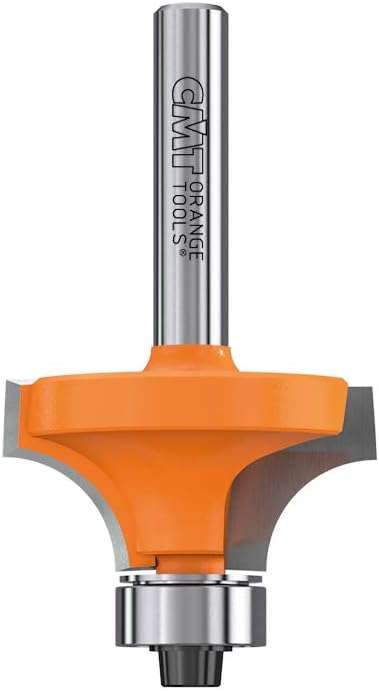

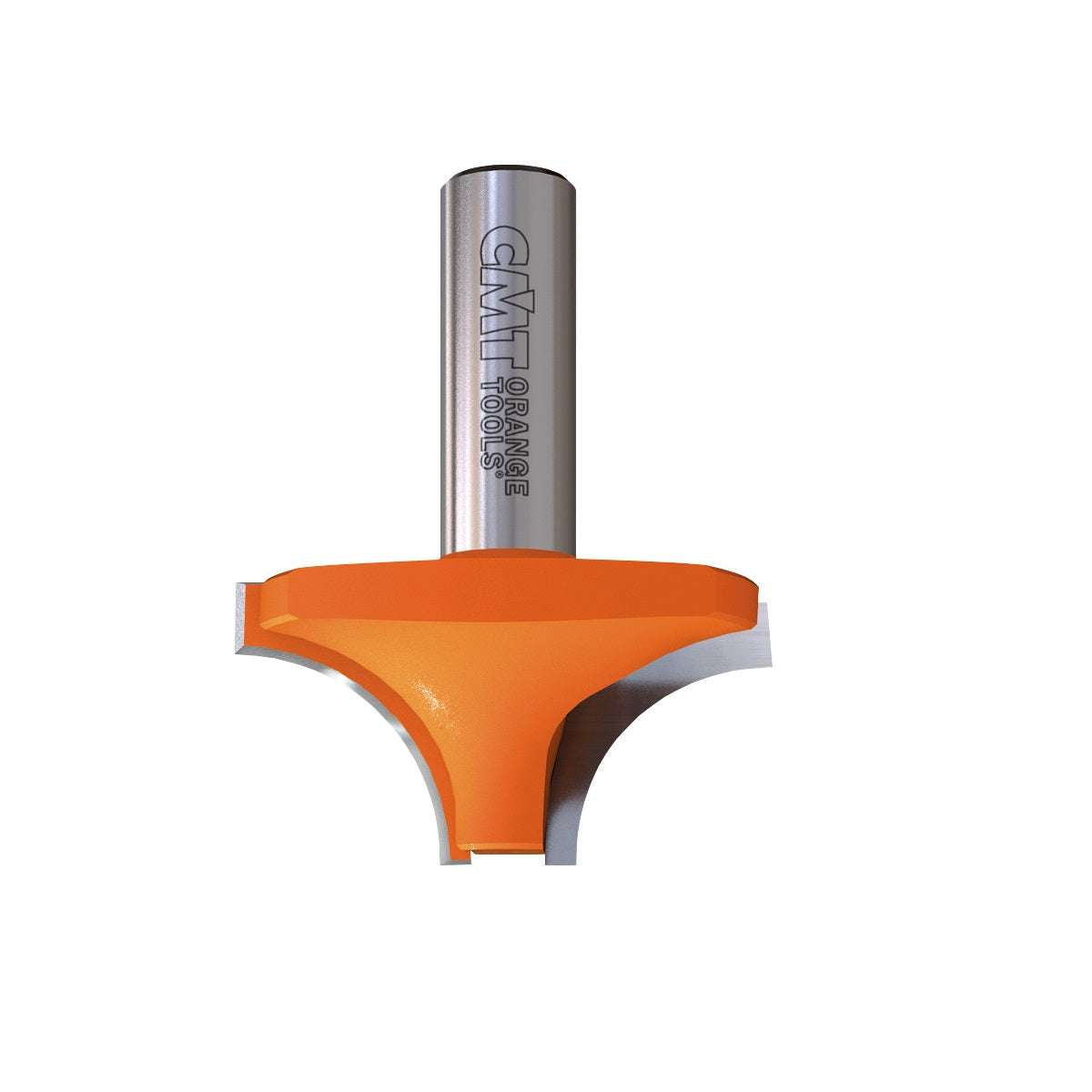

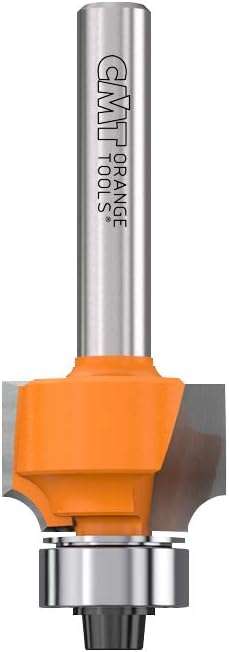

Two-edged cutter with concave radius - CMT 727
These cutters are used to machine edges and notches and achieve a wide selection of edging, simple, double or elaborate notched profiles.
Safety recommendations:
Special care and attention is recommended when using a wide profile cutter.
When milling, always ensure stability of the parts to be machined by using a guide on work tables.
Safety recommendations:
Special care and attention is recommended when using a wide profile cutter.
When milling, always ensure stability of the parts to be machined by using a guide on work tables.

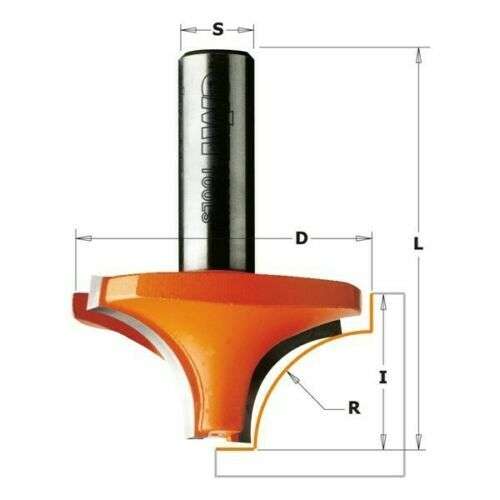

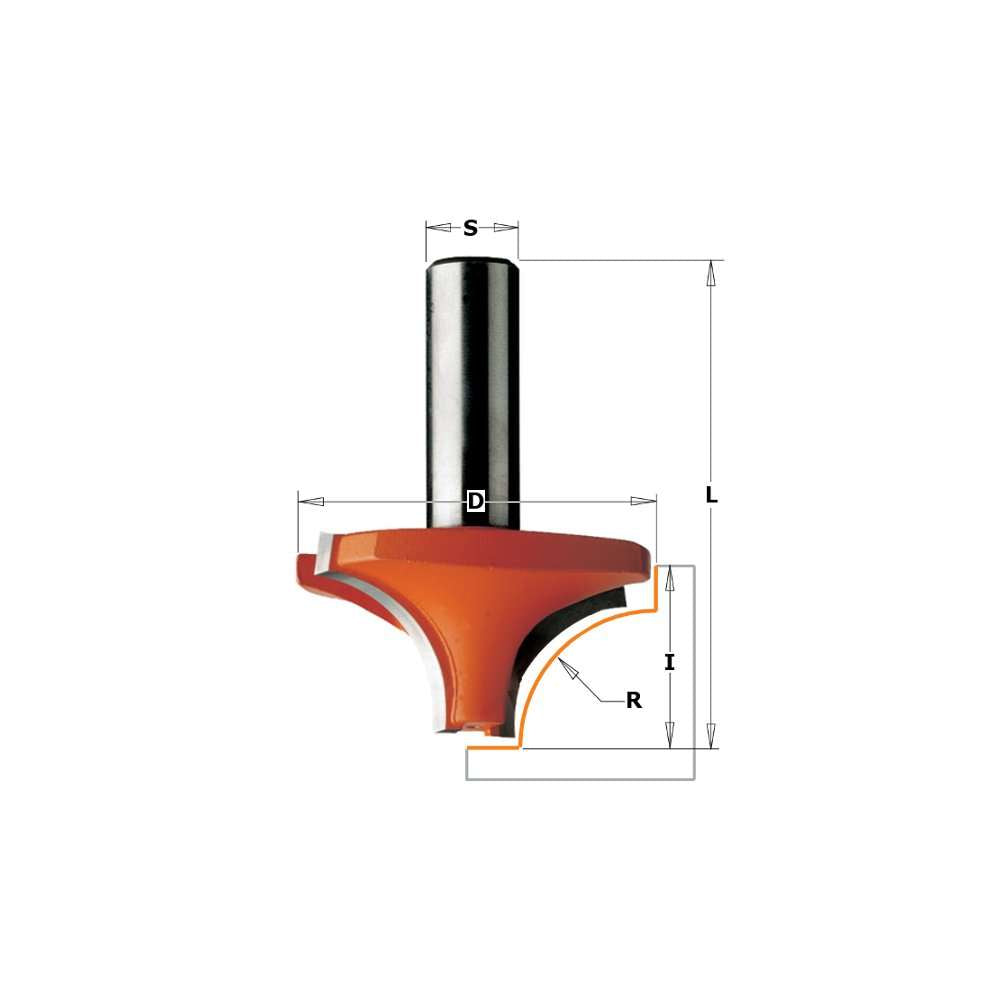

| Code | R | D | I | L | S |
|---|---|---|---|---|---|
| 727.040.11 | 4 mm | 19 mm | 12 mm | 43,8 mm | 6 mm |
| 727.060.11 | 6 mm | 23 mm | 12 mm | 43,8 mm | 6 mm |
| 727.080.11 | 8 mm | 28,6 mm | 12,7 mm | 44,5 mm | 6 mm |
| 727.095.11 | 9,5 mm | 31,7 mm | 15,8 mm | 47,6 mm | 6 mm |
| 727.050.11 | 5 mm | 21 mm | 12 mm | 43,8 mm | 6 mm |
